Is the BAUER hose end lever connector plug, carbon steel, B.8 rated for continuous use at 20 bar and within -20°C to +50°C?

Yes. The BAUER hose end lever connector plug, carbon steel, B.8 is rated for continuous use at up to 20 bar (for sizes up to 89 mm) and for operation within the temperature range −20°C to +50°C.

Can the BAUER hose end lever connector plug, carbon steel, B.8 be safely used in seawater or highly corrosive environments?

No — the BAUER hose end lever connector plug, carbon steel, B.8 is not recommended for seawater or highly corrosive environments. Although galvanized carbon steel gives good general corrosion and wear resistance for many industrial and construction applications, galvanizing is insufficient for prolonged exposure to chloride-rich seawater or aggressive chemical atmospheres. In such conditions the coating will deteriorate, leading to accelerated corrosion of the base carbon steel, reduced mechanical integrity and potential sealing/failure issues. If you need a connector for seawater or highly corrosive environments, choose materials specifically suited to those conditions (for example stainless steels with appropriate grade and testing for chloride resistance, duplex stainless, bronze/brass alloys rated for seawater, or non‑metallic/polymer alternatives) and verify compatibility with the fluid, pressure (up to 20 bar for smaller sizes, 12 bar for larger), temperature range (−20°C to +50°C) and installation conditions. Regular inspection and maintenance or additional protective measures (e.g., sacrificial anodes, specialized coatings) may also be required.

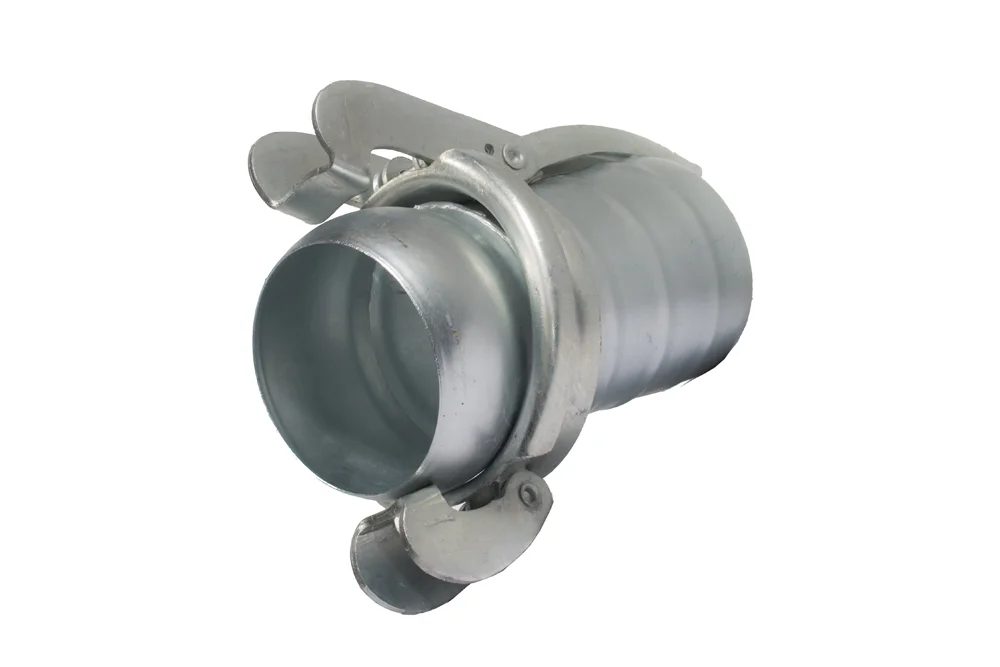

BAUER hose end lever connector plug, carbon steel, B.8

All products, Lever couplings/

Additional information

Material	CS – steel (cast iron)

The Bauer lever connector plug with tail for hose is a highly versatile solution designed for demanding applications across agriculture, horticulture, industry, construction, road and tunnel engineering, groundwater drainage, wastewater treatment, sewage discharge, and environmental protection projects. Manufactured from durable galvanized carbon steel, it ensures long-lasting resistance to wear, corrosion, and harsh working conditions. Engineered to perform under pressure, it offers a working capacity of up to 20 bar for sizes up to 89 mm and 12 bar for larger dimensions, making it adaptable to a wide range of operational needs. With a reliable temperature tolerance from -20°C to +50°C, this connector guarantees secure and efficient performance even in challenging environments. Its robust design and easy handling make it an ideal choice for professionals seeking a dependable and cost-effective connection system that enhances productivity and minimizes downtime.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]
OM-B8-050-050	BAUER plug 50 mm with end for hose 50 mm	50	20
OM-B8-076-063	BAUER plug 76 mm with end for hose 63 mm	65	20
OM-B8-076-076	BAUER connector 76 mm with end for hose 76 mm	75	20
OM-B8-076-080	BAUER plug 76 mm with end for hose 80 mm	80	20
OM-B8-089-076	BAUER plug 89 mm with end for hose 76 mm	75	20
OM-B8-089-089	BAUER plug 89 mm with end for hose 89 mm	90	20
OM-B8-089-100	BAUER plug 89 mm with end for 100 mm hose	100	20
OM-B8-108-089	BAUER plug 108 mm with end for hose 89 mm	90	12
OM-B8-108-100	BAUER plug 108 mm with end for hose 100 mm	100	12
OM-B8-108-108	BAUER plug 108 mm with end for hose 108 mm	110	12
OM-B8-108-120	BAUER plug 108 mm with end for hose 120 mm	120	12
OM-B8-133-120	BAUER plug 133 mm with end for hose 120 mm	120	12
OM-B8-133-125	BAUER plug 133 mm with end for hose 125 mm	125	12
OM-B8-133-133	BAUER plug 133 mm with hose end 133 mm	130	12
OM-B8-159-150	BAUER plug 159 mm with end for hose 150 mm	150	12
OM-B8-159-159	BAUER plug 159 mm with hose end 159 mm	160	12
OM-B8-194-200	BAUER plug 194 mm with end for hose 200 mm	200	12

The Bauer lever connector plug with tail for hose is a highly versatile solution designed for demanding applications across agriculture, horticulture, industry, construction, road and tunnel engineering, groundwater drainage, wastewater treatment, sewage discharge, and environmental protection projects. Manufactured from durable galvanized carbon steel, it ensures long-lasting resistance to wear, corrosion, and harsh working conditions. Engineered to perform under pressure, it offers a working capacity of up to 20 bar for sizes up to 89 mm and 12 bar for larger dimensions, making it adaptable to a wide range of operational needs. With a reliable temperature tolerance from -20°C to +50°C, this connector guarantees secure and efficient performance even in challenging environments. Its robust design and easy handling make it an ideal choice for professionals seeking a dependable and cost-effective connection system that enhances productivity and minimizes downtime.
