Is the Bracket for ISO 6432 Pneumatic Mini Cylinder, Model BC compatible with all Ø8–Ø25 mini cylinders and does it include the pin and retaining rings for installation?

Bracket for ISO 6432 Pneumatic Mini Cylinder, Model BC is compatible with Ø8, Ø10, Ø12, Ø16, Ø20, and Ø25 mini cylinders, covering the common Ø8–Ø25 range. It is supplied complete with one pin and two retaining rings for straightforward installation. The bracket is made of carbon steel with a galvanized finish for enhanced wear and corrosion resistance, ensuring secure mounting, precise alignment, and long service life in industrial applications.

Does the Bracket for ISO 6432 Pneumatic Mini Cylinder, Model BC require any special tools or additional parts for mounting beyond the supplied pin and retaining rings?

Bracket for ISO 6432 Pneumatic Mini Cylinder, Model BC does not require any special tools or additional parts for basic mounting beyond the supplied pin and two retaining rings. The package includes a complete set for quick assembly, so standard hand tools (e.g., pliers for fitting retaining rings and a soft-faced hammer or mallet to seat the pin if needed) are typically all that’s required. No extra brackets, spacers, or fasteners are specified as necessary. For specific installation scenarios (tight spaces, alignment adjustments, or mounting to unusual surfaces), common workshop tools or supplementary hardware may be used, but they are not required by the standard product description.

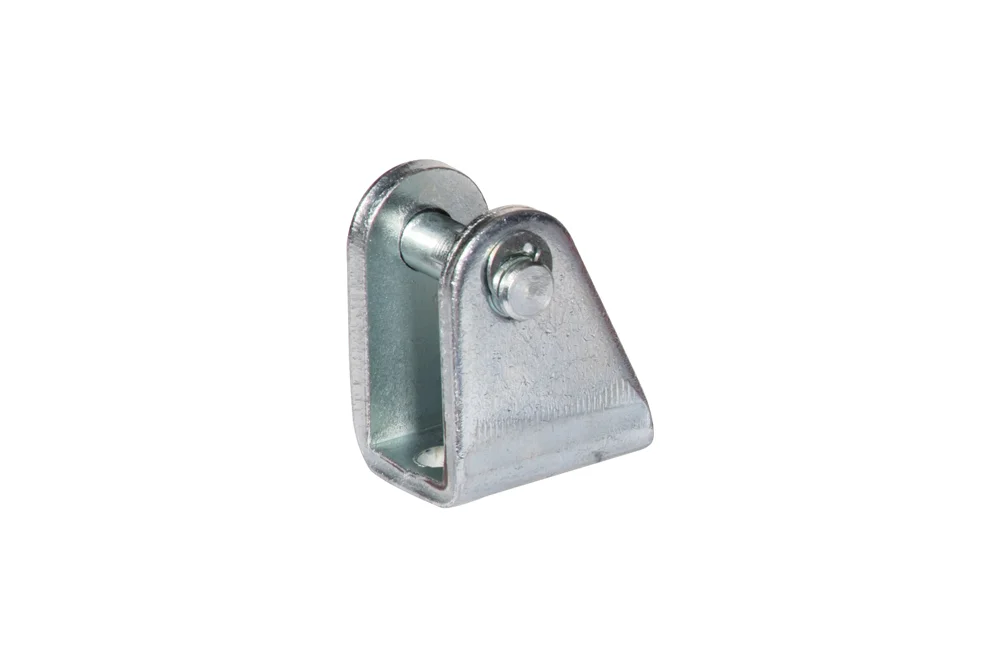

Bracket for ISO 6432 Pneumatic Mini Cylinder, Model BC

All products, Pneumatic actuators/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	30

The BC bracket for mini cylinders compliant with ISO 6432 is a reliable and durable mounting solution designed to ensure secure and stable installation. Supplied with one pin and two retaining rings, it provides a complete set for quick and efficient assembly. Available for cylinder sizes Ø8, Ø10, Ø12, Ø16, Ø20, and Ø25, it offers versatile compatibility with a wide range of pneumatic applications. Manufactured from high-quality carbon steel and finished with galvanization, the bracket guarantees excellent resistance to wear, corrosion, and mechanical stress, extending the service life of your equipment. Its robust construction ensures precise alignment and dependable performance, making it an ideal choice for demanding industrial environments. With its easy installation and long-lasting durability, the BC bracket is a practical and cost-effective solution that enhances the efficiency and reliability of your pneumatic systems.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-W0950080005	Bracket MOD.BC-8/10	-	-	In stock	Enquiry
MW-W0950120005	Bracket MOD. BC-012/016	-	-	In stock	Enquiry
MW-W0950200005	Bracket MOD.BC-20/25	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The BC bracket for mini cylinders compliant with ISO 6432 is a reliable and durable mounting solution designed to ensure secure and stable installation. Supplied with one pin and two retaining rings, it provides a complete set for quick and efficient assembly. Available for cylinder sizes Ø8, Ø10, Ø12, Ø16, Ø20, and Ø25, it offers versatile compatibility with a wide range of pneumatic applications. Manufactured from high-quality carbon steel and finished with galvanization, the bracket guarantees excellent resistance to wear, corrosion, and mechanical stress, extending the service life of your equipment. Its robust construction ensures precise alignment and dependable performance, making it an ideal choice for demanding industrial environments. With its easy installation and long-lasting durability, the BC bracket is a practical and cost-effective solution that enhances the efficiency and reliability of your pneumatic systems.
