Is the BES Metric Tube End ZMR112, Heavy Series, AISI 316 Stainless Steel (PH) compatible with standard hydraulic crimping machines and sleeves?

Yes. The BES Metric Tube End ZMR112, Heavy Series, AISI 316 Stainless Steel (PH) is designed for crimping onto hydraulic and industrial hoses using standard hydraulic crimping machines and matching crimping sleeves. Its heavy-series BES metric tube with cutting-ring sealing and the “-PH” sleeve identification ensure compatibility with professional crimping solutions, providing secure, leak-free connections and reliable performance in demanding applications.

Can BES Metric Tube End ZMR112, Heavy Series, AISI 316 Stainless Steel (PH) be used with sleeves marked “-PH” specific to certain hose manufacturers?

Yes. BES Metric Tube End ZMR112, Heavy Series, AISI 316 Stainless Steel (PH) is designed for crimping onto hydraulic and industrial hoses using crimping sleeves that are specific to the hose type, and the product description explicitly states sleeves are identified by the “-PH” marking for precise compatibility. Therefore, sleeves marked “-PH” for the relevant hose manufacturers are intended to be used with BES Metric Tube End ZMR112, Heavy Series, AISI 316 Stainless Steel (PH). Ensure you match the sleeve size and manufacturer specification for the hose type and follow the manufacturer’s crimping procedure and pressure ratings to guarantee a secure, leak-free connection.

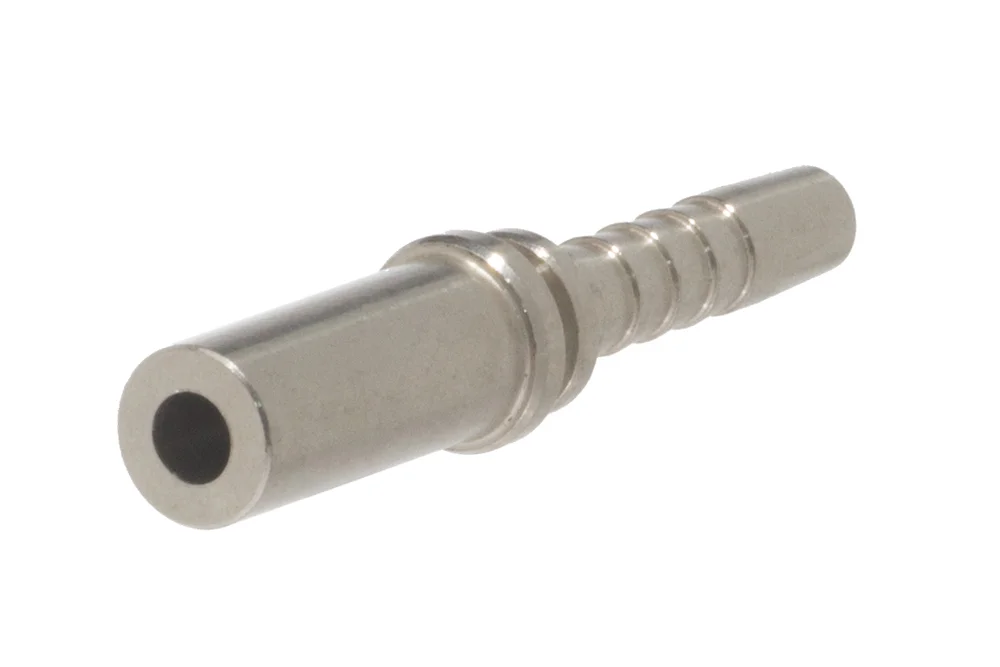

A fitting tubular metric BES, type ZMR112, series heavy, steel AISI 316 (PH)

All products, Fittings for high-pressure hoses/

Additional information

Material	SS – stainless steel

A fitting hydraulic standard (type Z – of standard “tail” hydraulic for hose), with tube metric, sealing a ring cutting (BES), series heavy. Intended for crimping in hoses hydraulic and industrial using ferrule crimping, appropriate for type hose (use ferrules marked additional letters “-PH” on the end index). Material: steel AISI 316.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZMR112-06-03-SS-PH	Fitting tube 6 mm, hose 3/16", heavy, AISI 316	5	-	In stock	Enquiry
TI-ZMR112-06-04-SS-PH	Fitting tube 6 mm, hose 1/4", heavy, AISI 316	6	-	In stock	Enquiry
TI-ZMR112-08-04-SS-PH	Fitting tube 8 mm, hose 1/4", heavy, AISI 316	6	-	In stock	Enquiry
TI-ZMR112-08-05-SS-PH	Fitting tube 8 mm, hose 5/16", heavy, AISI 316	8	-	In stock	Enquiry
TI-ZMR112-10-04-SS-PH	Fitting tube 10 mm, hose 1/4", heavy, AISI 316	6	-	In stock	Enquiry
TI-ZMR112-10-05-SS-PH	Fitting tube 10 mm, hose 5/16", heavy, AISI 316	8	-	In stock	Enquiry
TI-ZMR112-10-06-SS-PH	Fitting tube 10 mm, hose 3/8", heavy, AISI 316	10	-	In stock	Enquiry
TI-ZMR112-12-04-SS-PH	Fitting tube 12 mm, hose 1/4", heavy, AISI 316	6	-	In stock	Enquiry
TI-ZMR112-12-05-SS-PH	Fitting tube 12 mm, hose 5/16", heavy, AISI 316	8	-	In stock	Enquiry
TI-ZMR112-12-06-SS-PH	Fitting tube 12 mm, hose 3/8", heavy, AISI 316	10	-	In stock	Enquiry
TI-ZMR112-12-08-SS-PH	Fitting tube 12 mm, hose 1/2", heavy, AISI 316	12	-	In stock	Enquiry
TI-ZMR112-14-06-SS-PH	Fitting tube 14 mm, hose 3/8", heavy, AISI 316	10	-	In stock	Enquiry
TI-ZMR112-16-08-SS-PH	Fitting tube 16 mm, hose 1/2", heavy, AISI 316	12	-	In stock	Enquiry
TI-ZMR112-20-08-SS-PH	Fitting tube 20 mm, hose 1/2", heavy, AISI 316	12	-	In stock	Enquiry
TI-ZMR112-20-10-SS-PH	Fitting tube 20 mm, hose 5/8", heavy, AISI 316	16	-	In stock	Enquiry
TI-ZMR112-20-12-SS-PH	Fitting tube 20 mm, hose 3/4", heavy, AISI 316	16	-	In stock	Enquiry
TI-ZMR112-25-12-SS-PH	Fitting tube 25 mm, hose 3/4", heavy, AISI 316	16	-	In stock	Enquiry
TI-ZMR112-25-16-SS-PH	Fitting tube 25 mm, hose 1", heavy, AISI 316	25	-	In stock	Enquiry
TI-ZMR112-30-16-SS-PH	Fitting tube 30 mm, hose 1", heavy, AISI 316	25	-	In stock	Enquiry
TI-ZMR112-38-20-SS-PH	Fitting tube 38 mm, hose 1.1/4", heavy, AISI 316	32	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

A fitting hydraulic standard (type Z – of standard “tail” hydraulic for hose), with tube metric, sealing a ring cutting (BES), series heavy. Intended for crimping in hoses hydraulic and industrial using ferrule crimping, appropriate for type hose (use ferrules marked additional letters “-PH” on the end index). Material: steel AISI 316.
