Is the 8-Channel Comb Nozzle, Black Acetal compatible with standard 1/4" BSP air knife systems and fittings?

Yes. The 8-Channel Comb Nozzle, Black Acetal features a 1/4" BSP external thread and is designed for integration into air knife systems, so it is compatible with standard 1/4" BSP air knife fittings and systems. Its durable acetal construction, operating range (-20°C to +60°C, up to 10 bar), and performance specs (580 l/min at 8 bar, 5.05 N force, 81.5 dB noise) make it suitable for reliable, compliant (OSHA 1910.95(b), STD 1-13.1, 2003/10/EC) use in standard 1/4" BSP setups.

Can the 8-Channel Comb Nozzle, Black Acetal maintain performance and noise compliance when used continuously at 10 bar in high-temperature environments up to +60°C?

Yes. The 8-Channel Comb Nozzle, Black Acetal is specified for continuous operation up to 10 bar and within a temperature range of -20°C to +60°C, so it can maintain its performance when used continuously at 10 bar in environments up to +60°C. Its acetal construction and optimized jet geometry deliver 580 l/min at 8 bar and a blowing force of 5.05 N while producing a low noise level of 81.5 dB. These characteristics, together with stated compliance with OSHA 1910.95(b), STD 1-13.1 and EU directive 2003/10/EC, indicate the nozzle will meet both performance and noise-safety requirements under the described conditions.

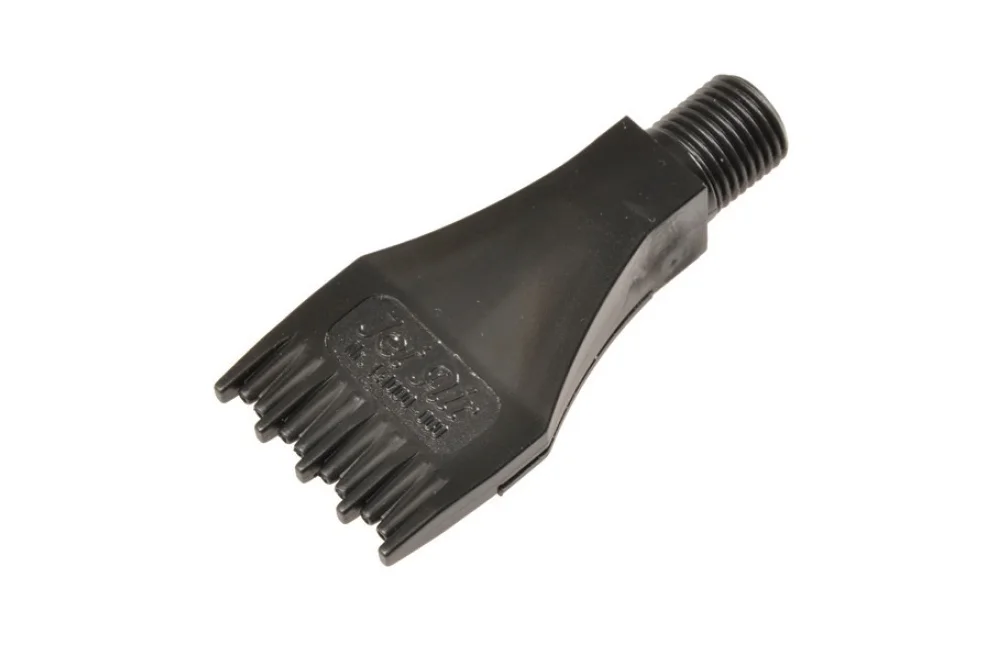

Nozzle comb 8 channel, black acetal

Air guns, All products/

Additional information

Nozzle comb 8 channel, flat-jet, terminated thread external 1/4″ BSP. Intended for blowing off with greater surface all contaminants: liquids, fine chips, filings etc. is characterized high force air blowing at low level noise. ideal for construction knives aircraft. compliant of the standard OSHA 1910.95 (b), STD 1-13.1 and the directive 2003/10/EC. Material: acetal. Working pressure: up to 10 bar. Operating temperature: od -20°C up to +60°C. Flow rate: 580 l/min (at a pressure of 8 bar). level noise: 81.5 dB (at a pressure of 8 bar). force air blowing: 5.05 N.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
JW-141000-000	Nozzle flat 8 jet, 1/4" BSP male, black acetal	-	10	In stock	0 €		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

Nozzle comb 8 channel, flat-jet, terminated thread external 1/4″ BSP. Intended for blowing off with greater surface all contaminants: liquids, fine chips, filings etc. is characterized high force air blowing at low level noise. ideal for construction knives aircraft. compliant of the standard OSHA 1910.95 (b), STD 1-13.1 and the directive 2003/10/EC. Material: acetal. Working pressure: up to 10 bar. Operating temperature: od -20°C up to +60°C. Flow rate: 580 l/min (at a pressure of 8 bar). level noise: 81.5 dB (at a pressure of 8 bar). force air blowing: 5.05 N.
