Block directional three-way, steel galvanized on black

Additional information

Material

CS – steel (cast iron)

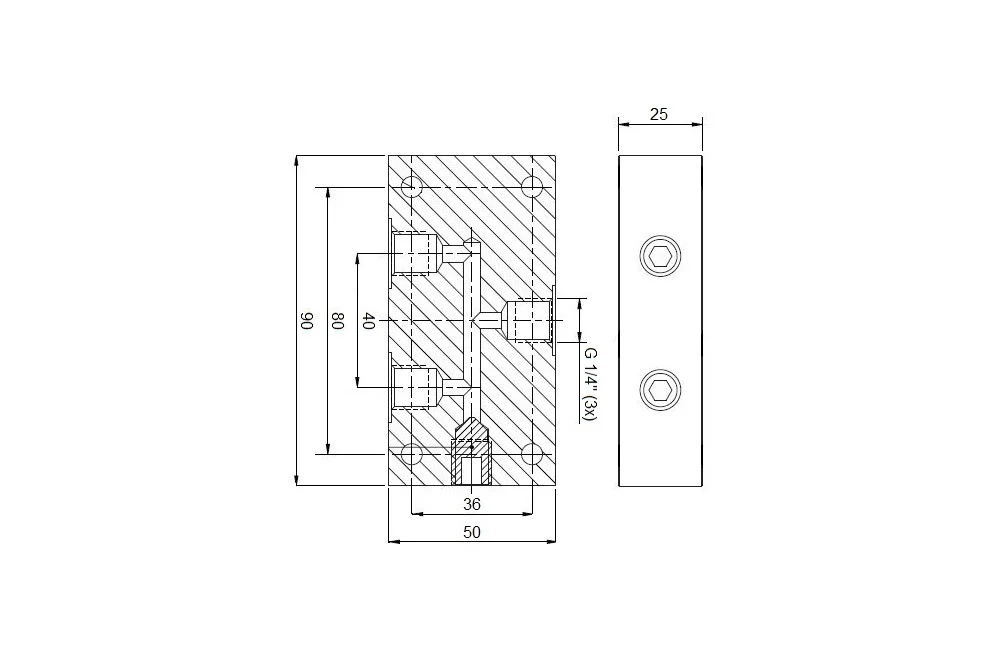

Block directional three-way enabling connection many hoses high-pressure for one pump, as well as connection pressure gauge. made of steel zinc-plated on black. Diameter bore 5 mm (3/16″). Connections: 3 x 1/4″ BSP. sealing Connections: cone internal 120°. Working pressure: 3000 bar (maximum pressure working in case use the gasket metal-rubber to 1000 bar).

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
CJ-HP-199501682Connection block 3x1/4" BSP, 3000 bar-2000In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Block directional three-way enabling connection many hoses high-pressure for one pump, as well as connection pressure gauge. made of steel zinc-plated on black. Diameter bore 5 mm (3/16″). Connections: 3 x 1/4″ BSP. sealing Connections: cone internal 120°. Working pressure: 3000 bar (maximum pressure working in case use the gasket metal-rubber to 1000 bar).

Additional information

Material

CS – steel (cast iron)
