Block pressure-gauge three-way, steel galvanized on black

Additional information

Material

CS – steel (cast iron)

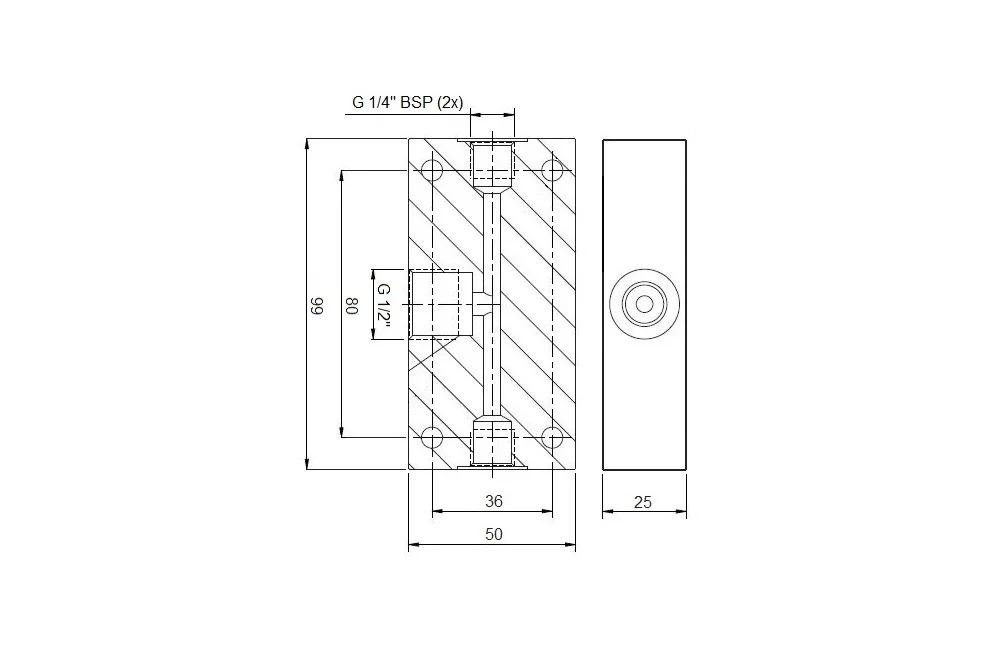

Block pressure-gauge three-way enabling connection many hoses high-pressure for one pump, as well as connection pressure gauge. made of steel zinc-plated on black. Diameter bore 5 mm (3/16″). Connections: 2 x 1/4″ BSP, 1 x 1/2″ BSP (O-ring NBR). sealing Connections: cone internal 120°. Working pressure: 2000 bar (maximum pressure working in case use the gasket metal-rubber to 1000 bar).

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
CJ-HP-199501681Connection block gauge, 2000 bar-2000In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Block pressure-gauge three-way enabling connection many hoses high-pressure for one pump, as well as connection pressure gauge. made of steel zinc-plated on black. Diameter bore 5 mm (3/16″). Connections: 2 x 1/4″ BSP, 1 x 1/2″ BSP (O-ring NBR). sealing Connections: cone internal 120°. Working pressure: 2000 bar (maximum pressure working in case use the gasket metal-rubber to 1000 bar).

Additional information

Material

CS – steel (cast iron)
