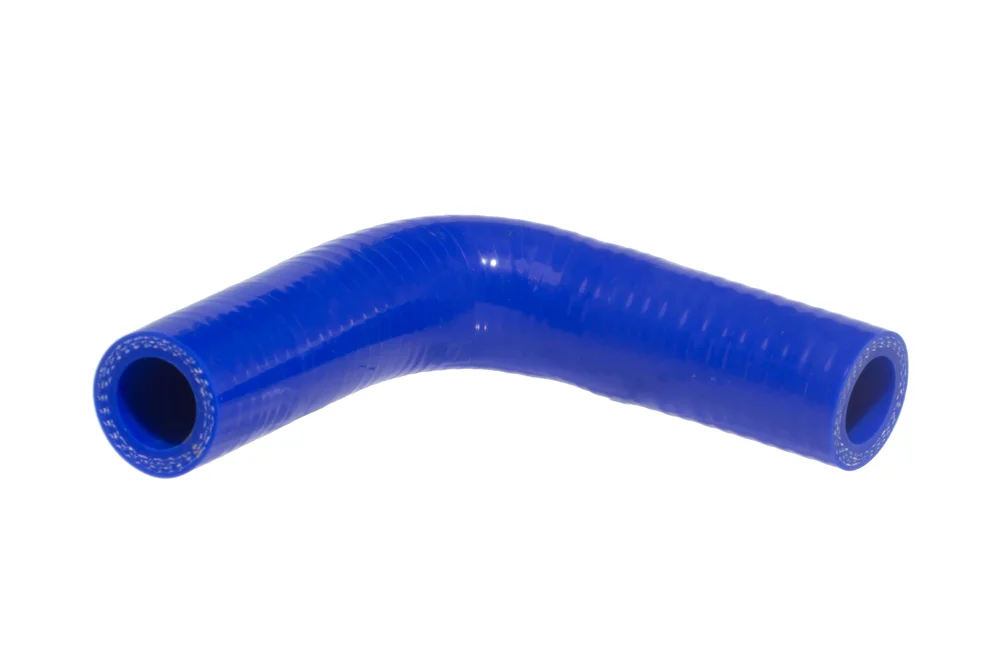

Blue Silicone 90° Elbow E90 with Polyester Reinforcement

Additional information

Material

VMQ – silicone

Maximum operating temperature [°C]

180

Minimum operating temperature [°C]

-50

Vacuum resistance

no

The 90° silicone elbow reinforced with durable polyester is a reliable solution for vehicle cooling and heating systems, designed to transport water, coolant, clean air, or air containing minimal oil mist. For applications involving oils, fuels, or higher oil content, a specialized version with a fluorosilicone inner layer ensures maximum resistance and durability. With a standard arm length of 100 mm and additional options of 152 mm or 250 mm, this hose offers flexibility to meet diverse installation needs. Manufactured from high-quality silicone rubber with polyester reinforcement, it combines excellent mechanical strength with long-lasting performance. Meeting SAE J20R1 standards, it guarantees safety with a 3:1 pressure factor and operates efficiently under working pressures ranging from 1.83 bar to 8.75 bar, depending on diameter. Its robust design withstands extreme temperatures from -50°C to +180°C, while the standard hardness of approximately 65° Shore (A) and density of 1.26 g/cm³ ensure optimal balance between flexibility and stability. Finished in a striking blue outer layer, this hose not only delivers technical reliability but also enhances the professional appearance of any engine bay.

List of product variants

Article numberProduct variant nameNominal inner diameterWorking pressure [bar]EnquiryCatalogue
VP-E90-00890° silicone elbow 8 mm88.75
VP-E90-01090° silicone elbow 10 mm108.12
VP-E90-01390° silicone elbow 12.7 mm127.53
VP-E90-01690° silicone elbow 16 mm167.33
VP-E90-01990° silicone elbow 19 mm206.6
VP-E90-02290° silicone elbow 22 mm226.07
VP-E90-02590° silicone elbow 25 mm255.8
VP-E90-02890° silicone elbow 28 mm285.67
VP-E90-028-X90° silicone elbow 28 mm255.67
VP-E90-03290° silicone elbow 32 mm325.3
VP-E90-03590° silicone elbow 35 mm355.13
VP-E90-03890° silicone elbow 38 mm385
VP-E90-04890° silicone elbow 48 mm503.33
VP-E90-05190° silicone elbow 50.8 mm503.67
VP-E90-05490° silicone elbow 54 mm553.07
VP-E90-05790° silicone elbow 57 mm603
VP-E90-06390° silicone elbow 63 mm652.33
VP-E90-07090° silicone elbow 70 mm702.17
VP-E90-07690° silicone elbow 76 mm752

The 90° silicone elbow reinforced with durable polyester is a reliable solution for vehicle cooling and heating systems, designed to transport water, coolant, clean air, or air containing minimal oil mist. For applications involving oils, fuels, or higher oil content, a specialized version with a fluorosilicone inner layer ensures maximum resistance and durability. With a standard arm length of 100 mm and additional options of 152 mm or 250 mm, this hose offers flexibility to meet diverse installation needs. Manufactured from high-quality silicone rubber with polyester reinforcement, it combines excellent mechanical strength with long-lasting performance. Meeting SAE J20R1 standards, it guarantees safety with a 3:1 pressure factor and operates efficiently under working pressures ranging from 1.83 bar to 8.75 bar, depending on diameter. Its robust design withstands extreme temperatures from -50°C to +180°C, while the standard hardness of approximately 65° Shore (A) and density of 1.26 g/cm³ ensure optimal balance between flexibility and stability. Finished in a striking blue outer layer, this hose not only delivers technical reliability but also enhances the professional appearance of any engine bay.

Additional information

Material

VMQ – silicone

Maximum operating temperature [°C]

180

Minimum operating temperature [°C]

-50

Vacuum resistance

no
