Is the Blue 90° ER Silicone Reducer Elbow with Polyester Reinforcement suitable for use with oil-containing air or only for clean air and coolant fluids?

The Blue 90° ER Silicone Reducer Elbow with Polyester Reinforcement is suitable for use with water, coolant fluids, clean air, and air containing minimal oil mist. It is not recommended for applications involving oils, fuels, or air with higher oil content; for those uses a specialized version with a fluorosilicone inner layer is advised to ensure maximum oil resistance.

Can the Blue 90° ER Silicone Reducer Elbow with Polyester Reinforcement be used with fuels or high-oil-content fluids, or is the fluorosilicone-lined version required?

No — the Blue 90° ER Silicone Reducer Elbow with Polyester Reinforcement is intended for water, coolant fluids, clean air, or air with only minimal oil mist. For applications involving fuels, oils, or fluids with higher oil content, the fluorosilicone-lined version is required to provide the necessary chemical resistance and long-term durability.

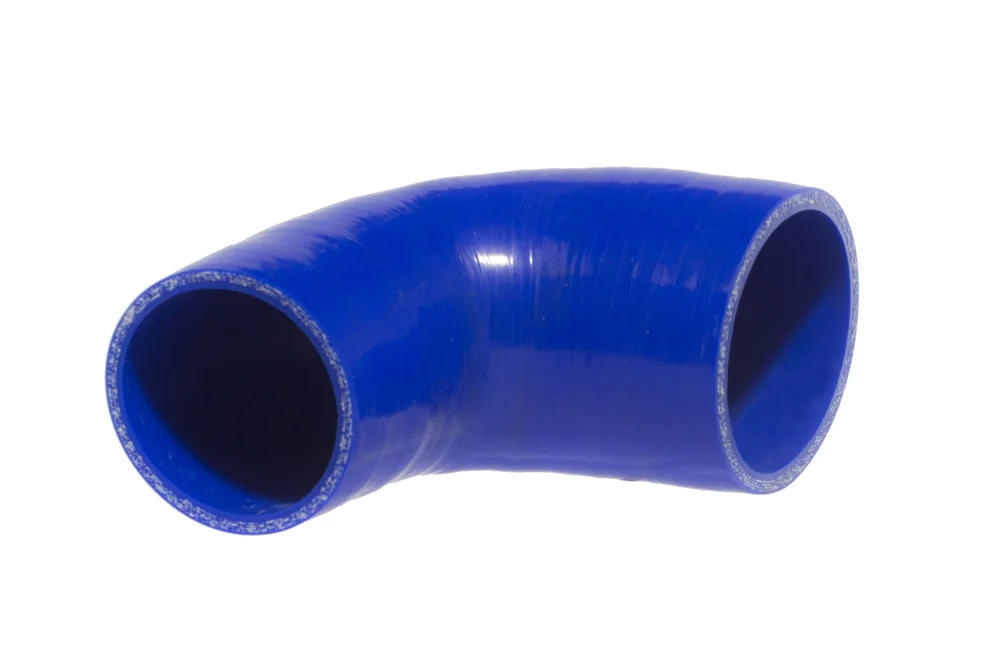

Blue 90° ER Silicone Reducer Elbow with Polyester Reinforcement

Additional information

Material	VMQ – silicone
Maximum operating temperature [°C]	180
Minimum operating temperature [°C]	-50
Vacuum resistance	no

The 90° silicone reducing elbow reinforced with durable polyester is a high-performance solution designed for vehicle cooling and heating systems, ensuring reliable operation with water, coolant fluids, clean air, or air containing minimal oil mist. For applications involving oils, fuels, or higher oil content, a specialized version with a fluorosilicone inner layer is recommended to guarantee maximum resistance. Featuring a standard arm length of 102 mm and a pressure safety factor of 3:1, this hose complies with SAE J20R1 standards, offering proven quality and safety. Manufactured from premium silicone rubber with integrated polyester reinforcement, it delivers excellent flexibility, durability, and resistance to extreme conditions. With a hardness of approximately 65° Shore (A), density of 1.26 g/cm³, and a striking blue outer layer, it combines technical precision with a professional appearance. The hose is engineered to withstand working pressures between 1 bar and 7.33 bar, depending on diameter, and operates reliably in a wide temperature range from -50°C to +180°C, making it an ideal choice for demanding automotive and industrial environments where performance and longevity are essential.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]
VP-ER-019-013	90° silicone reducing elbow 19x13 mm	20	6.6
VP-ER-019-016	90° silicone reducing elbow 19x16 mm	20	6.6
VP-ER-022-016	90° silicone reducing elbow 22x16 mm	22	6.07
VP-ER-022-019	90° silicone reducing elbow 22x19 mm	22	5.8
VP-ER-025-019	90° silicone reducing elbow 25x19 mm	25	5.8
VP-ER-025-019-X	90° silicone reducing elbow 25x19 mm	25	5.8
VP-ER-032-025	90° silicone reducing elbow 32x25 mm	32	5.3
VP-ER-035-019	90° silicone reducing elbow 35x19 mm	35	5.13
VP-ER-035-019-X	90° silicone reducing elbow 35x19 mm	35	5.13
VP-ER-035-025	90° silicone reducing elbow 35x25 mm	35	5.13
VP-ER-035-032	90° silicone reducing elbow 35x32 mm	35	5
VP-ER-038-025	90° silicone reducing elbow 38x25 mm	38	5
VP-ER-038-032	90° silicone reducing elbow 38x32 mm	38	5
VP-ER-038-035	90° silicone reducing elbow 38x35 mm	38	5
VP-ER-051-045	90° silicone reducing elbow 51x45 mm	50	3.67
VP-ER-057-051	90° silicone reducing elbow 57x51 mm	55	3
VP-ER-063-051	90° silicone reducing elbow 63x51 mm	65	2.33
VP-ER-070-060	90° silicone reducing elbow 70x60 mm	70	2.17
VP-ER-076-051	90° silicone reducing elbow 76x51 mm	75	2

The 90° silicone reducing elbow reinforced with durable polyester is a high-performance solution designed for vehicle cooling and heating systems, ensuring reliable operation with water, coolant fluids, clean air, or air containing minimal oil mist. For applications involving oils, fuels, or higher oil content, a specialized version with a fluorosilicone inner layer is recommended to guarantee maximum resistance. Featuring a standard arm length of 102 mm and a pressure safety factor of 3:1, this hose complies with SAE J20R1 standards, offering proven quality and safety. Manufactured from premium silicone rubber with integrated polyester reinforcement, it delivers excellent flexibility, durability, and resistance to extreme conditions. With a hardness of approximately 65° Shore (A), density of 1.26 g/cm³, and a striking blue outer layer, it combines technical precision with a professional appearance. The hose is engineered to withstand working pressures between 1 bar and 7.33 bar, depending on diameter, and operates reliably in a wide temperature range from -50°C to +180°C, making it an ideal choice for demanding automotive and industrial environments where performance and longevity are essential.
