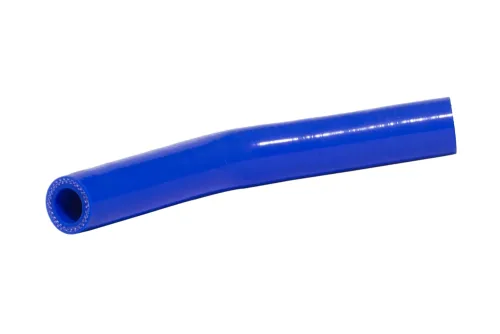

Blue Silicone Reduction Connector with Polyester Reinforcement, SR
The silicone reducer connector reinforced with durable polyester is a high-performance solution designed for vehicle cooling and heating systems, ensuring reliable operation with water, coolant fluids, clean air, or air containing minimal oil mist. For applications involving oils, fuels, or higher oil content, a specialized version with a fluorosilicone inner layer is recommended to guarantee maximum resistance. With a standard length of 102 mm and a robust pressure safety factor of 3:1, this hose delivers both strength and safety under demanding conditions. Manufactured from premium silicone rubber with polyester spacers, it offers excellent flexibility, a hardness of approximately 65° Shore (A), and a density of 1.26 g/cm³. The striking blue outer layer not only enhances durability but also provides a professional appearance in any engine bay. Meeting SAE J20R1 standards, the connector ensures compliance with industry requirements while offering a wide working pressure range from 1 bar up to 7.33 bar, depending on diameter. Engineered to perform in extreme environments, it withstands operating temperatures from -50°C to +180°C, making it a reliable choice for both standard and high-performance automotive applications.
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| VP-SR-016-013 | Silicone reducing connector 16x13 mm | 16 | 7.33 | |
| VP-SR-019-013 | Silicone reducing connector 19x13 mm | 20 | 6.6 | |
| VP-SR-019-016 | Silicone reducing connector 19x16 mm | 20 | 6.6 | |
| VP-SR-022-016 | Silicone reducing connector 22x16 mm | 22 | 6.07 | |
| VP-SR-025-016 | Silicone reducing connector 25x16 mm | 25 | 5.8 | |
| VP-SR-025-019 | Silicone reducing connector 25x19 mm | 25 | 5.8 | |
| VP-SR-032-025 | Silicone reducing connector 32x25 mm | 32 | 5.3 | |
| VP-SR-035-025 | Silicone reducing connector 35x25 mm | 35 | 5.13 | |
| VP-SR-038-025 | Silicone reducer connector 38x25 mm | 38 | 5 | |
| VP-SR-038-032 | Silicone reducer connector 38x32 mm | 38 | 5 | |
| VP-SR-038-035 | Silicone reducer connector 38x35 mm | 38 | 5 | |
| VP-SR-051-038 | Silicone reducing connector 51x38 mm | 50 | 3.67 | |
| VP-SR-054-051 | Silicone reducing connector 54x51 mm | 55 | 3.07 | |
| VP-SR-057-051 | Silicone reducing connector 57x51 mm | 55 | 3 | |
| VP-SR-060-051 | Silicone reducer connector 60x51 mm | 60 | 2.33 | |
| VP-SR-063-051 | Silicone reducer connector 63x51 mm | 65 | 2.33 | |
| VP-SR-063-057 | Silicone reducing connector 63x57 mm | 65 | 2.33 | |
| VP-SR-070-051 | Silicone reducing connector 70x51 mm | 70 | 2.17 | |
| VP-SR-070-060 | Silicone reducer connector 70x60 mm | 70 | 2.17 | |
| VP-SR-070-063 | Silicone reducing connector 70x63 mm | 70 | 2.17 | |
| VP-SR-076-051 | Silicone reducer connector 76x51 mm | 75 | 2 | |
| VP-SR-076-060 | Silicone reducer connector 76x60 mm | 75 | 2 | |
| VP-SR-076-063 | Silicone reducer connector 76x63 mm | 75 | 2 | |
| VP-SR-076-070 | Silicone reducer connector 76x70 mm | 75 | 2 | |
| VP-SR-080-070 | Silicone reducing connector 80x70 mm | 80 | 1.73 | |
| VP-SR-083-076 | Silicone reducing connector 83x76 mm | 80 | 1.73 | |
| VP-SR-089-070 | Silicone reducing connector 89x70 mm | 90 | 1.5 | |
| VP-SR-089-076 | Silicone reducing connector 89x76 mm | 90 | 1.5 | |
| VP-SR-102-076 | Silicone reducing connector 102x76 mm | 100 | 1.33 | |
| VP-SR-102-089 | Silicone reducing connector 102x89 mm | 100 | 1.33 | |
| VP-SR-127-102 | Silicone reducing connector 127x102 mm | 125 | 1 |
The silicone reducer connector reinforced with durable polyester is a high-performance solution designed for vehicle cooling and heating systems, ensuring reliable operation with water, coolant fluids, clean air, or air containing minimal oil mist. For applications involving oils, fuels, or higher oil content, a specialized version with a fluorosilicone inner layer is recommended to guarantee maximum resistance. With a standard length of 102 mm and a robust pressure safety factor of 3:1, this hose delivers both strength and safety under demanding conditions. Manufactured from premium silicone rubber with polyester spacers, it offers excellent flexibility, a hardness of approximately 65° Shore (A), and a density of 1.26 g/cm³. The striking blue outer layer not only enhances durability but also provides a professional appearance in any engine bay. Meeting SAE J20R1 standards, the connector ensures compliance with industry requirements while offering a wide working pressure range from 1 bar up to 7.33 bar, depending on diameter. Engineered to perform in extreme environments, it withstands operating temperatures from -50°C to +180°C, making it a reliable choice for both standard and high-performance automotive applications.
Additional information
| Material | VMQ – silicone |
|---|---|
| Maximum operating temperature [°C] | 180 |
| Minimum operating temperature [°C] | -50 |
| Vacuum resistance | no |
