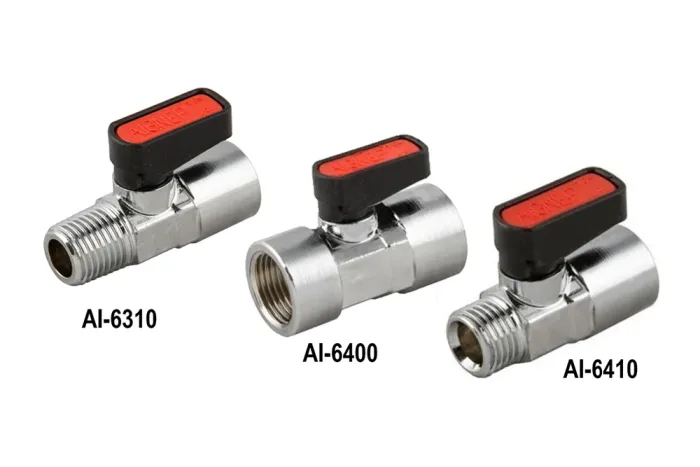

Strength, A compact, one-piece, brass ball valve type 6310 / 6400 / 6410
Professional, one-piece A mini valve ball shut-off production European, with body made with casting brass, with a lever straight plastic (with replaceable a plate in colors: standard red; Available yellow, blue, green, white), intended for installation industrial. It can be used for air, gases neutral, water, chemicals, products petrochemical, etc., free od contaminants solid, compliant with resistance chemical materials valve. has protection stem against blow-out. meets requirements the directive pressure PED 2014/68/UE, in the scope sound practice engineering (SEP), in accordance with art. 4 ust. 3. compliant with the directive material RoHS 2011/65/UE and the regulation REACH 1907/2006, not contains silicones. available versions these valves with seal stem made of Viton: PTFE / FKM (temperature use valve: -15°C ÷ +130°C) and on special order versions PTFE / EPDM (-40°C ÷ +130°C) and PTFE / HNBR (-30°C ÷ +130°C). pressure working these version dependent is od temperatures use. the given minimum temperature use refers to valve emptied with liquids freezing. can work on vacuum: -0.99 bar. Q – Flow rate air at an inlet pressure of 6 bar and a drop pressure Δp=1 bar, expressed in liters under pressure atmospheric ; Kv – factor flow valve expressed in units metric (Flow rate water in m 3 on hour at a drop pressure Δp=1 bar). Body material: brass nickel-plated. Material the ball: brass chrome-plated. Material lever: polyamide (PA 66). sealing the ball: PTFE. sealing stem: NBR. Connection: thread BSP (ISO 228-1) / thread BSP and BSPT (ISO 7-1). Operating temperature: od -20°C up to +80°C.
List of product variants
Do you need a larger quantity of products or a bespoke quote?
Professional, one-piece A mini valve ball shut-off production European, with body made with casting brass, with a lever straight plastic (with replaceable a plate in colors: standard red; Available yellow, blue, green, white), intended for installation industrial. It can be used for air, gases neutral, water, chemicals, products petrochemical, etc., free od contaminants solid, compliant with resistance chemical materials valve. has protection stem against blow-out. meets requirements the directive pressure PED 2014/68/UE, in the scope sound practice engineering (SEP), in accordance with art. 4 ust. 3. compliant with the directive material RoHS 2011/65/UE and the regulation REACH 1907/2006, not contains silicones. available versions these valves with seal stem made of Viton: PTFE / FKM (temperature use valve: -15°C ÷ +130°C) and on special order versions PTFE / EPDM (-40°C ÷ +130°C) and PTFE / HNBR (-30°C ÷ +130°C). pressure working these version dependent is od temperatures use. the given minimum temperature use refers to valve emptied with liquids freezing. can work on vacuum: -0.99 bar. Q – Flow rate air at an inlet pressure of 6 bar and a drop pressure Δp=1 bar, expressed in liters under pressure atmospheric ; Kv – factor flow valve expressed in units metric (Flow rate water in m 3 on hour at a drop pressure Δp=1 bar). Body material: brass nickel-plated. Material the ball: brass chrome-plated. Material lever: polyamide (PA 66). sealing the ball: PTFE. sealing stem: NBR. Connection: thread BSP (ISO 228-1) / thread BSP and BSPT (ISO 7-1). Operating temperature: od -20°C up to +80°C.
Additional information
| Material | B – brass (bronze) |
|---|---|
| Standard length [m] | 2.13 |
