Is the Double-Sided Quick-Connect Brass Socket, BSPT Male, Series 25 DN 7.4 compatible with common pneumatic tools and laboratory sampling systems?

Yes. The Double-Sided Quick-Connect Brass Socket, BSPT Male, Series 25 DN 7.4 is compatible with common pneumatic tools and laboratory sampling systems. Its solid brass body, AISI 301 springs and rings, AISI 420 locking balls, and NBR seals ensure durability and leak resistance under intensive use. The ULTRA-FLO valve provides an exceptionally high flow rate (780 l/min at 6 bar, Δp=0.5 bar), making it suitable for pneumatic tool supply and fast, accurate liquid/gas sampling. With a working pressure up to 35 bar and an operating temperature range of -20°C to +100°C, it fits a wide range of industrial and lab environments. The external BSPT male thread enables straightforward integration with standard BSPT fittings commonly used in these systems.

Can the Double-Sided Quick-Connect Brass Socket, BSPT Male, Series 25 DN 7.4 maintain leak-free performance at the maximum flow rate of 780 l/min under continuous industrial use?

Yes. The Double-Sided Quick-Connect Brass Socket, BSPT Male, Series 25 DN 7.4 is designed to maintain leak-free performance at the stated maximum flow rate of 780 l/min (Pe = 6 bar, Δp = 0.5 bar, air) under continuous industrial use. Its solid brass body, precision components (AISI 301 springs and rings, AISI 420 locking balls) and durable NBR seals, together with the ULTRA-FLO valve, provide high tightness and long-lasting sealing even during intensive operation. The coupling’s rated working pressure up to 35 bar and operating temperature range –20°C to +100°C further support reliable, continuous performance across demanding industrial and laboratory environments. Proper installation, compatibility with system parameters, and routine maintenance are required to realize this leak-free performance in practice.

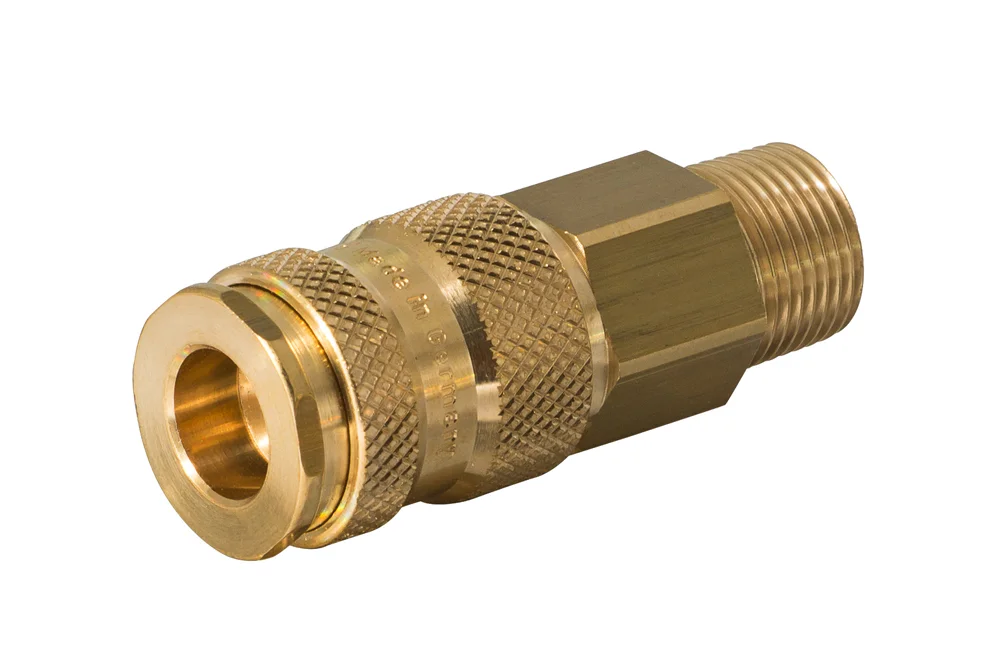

Double-Sided Quick-Connect Brass Socket, BSPT Male, Series 25 DN 7.4

All products, General-purpose low-pressure quick couplings/

Additional information

Material	B – brass (bronze)

The two-sided shut-off quick coupling socket Series 25 DN 7.4 with external BSPT thread is designed for demanding applications where reliability, safety, and efficiency are essential. Its solid brass construction, combined with precision-engineered components such as AISI 301 steel springs and rings, AISI 420 steel locking balls, and durable NBR sealing, guarantees long-lasting performance even under intensive use. Thanks to the innovative ULTRA-FLO valve, the coupling ensures excellent tightness while delivering an exceptionally high flow rate of 780 l/min (Pe=6 bar, Δp=0.5 bar, air), making it ideal for laboratory equipment, liquid and gas sampling, as well as pneumatic tools. With a working pressure of up to 35 bar and an operating temperature range from -20°C to +100°C, it provides maximum versatility across a wide spectrum of industrial and laboratory environments. Engineered for precision and durability, this coupling socket combines ease of use with superior flow efficiency, ensuring seamless integration into professional systems where performance and safety cannot be compromised.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]
RE-25KBAK13BPX	Quick coupling socket type 25 DN 7.4 double shut-off with GZ 1/4" BSPT, brass	-	35
RE-25KBAK17BPX	Quick coupling socket type 25 DN 7.4 double shut-off with GZ 3/8" BSPT, brass	-	35
RE-25KBAK21BPX	Quick coupling socket type 25 DN 7.4 double shut-off with GZ 1/2" BSPT, brass	-	35

The two-sided shut-off quick coupling socket Series 25 DN 7.4 with external BSPT thread is designed for demanding applications where reliability, safety, and efficiency are essential. Its solid brass construction, combined with precision-engineered components such as AISI 301 steel springs and rings, AISI 420 steel locking balls, and durable NBR sealing, guarantees long-lasting performance even under intensive use. Thanks to the innovative ULTRA-FLO valve, the coupling ensures excellent tightness while delivering an exceptionally high flow rate of 780 l/min (Pe=6 bar, Δp=0.5 bar, air), making it ideal for laboratory equipment, liquid and gas sampling, as well as pneumatic tools. With a working pressure of up to 35 bar and an operating temperature range from -20°C to +100°C, it provides maximum versatility across a wide spectrum of industrial and laboratory environments. Engineered for precision and durability, this coupling socket combines ease of use with superior flow efficiency, ensuring seamless integration into professional systems where performance and safety cannot be compromised.
