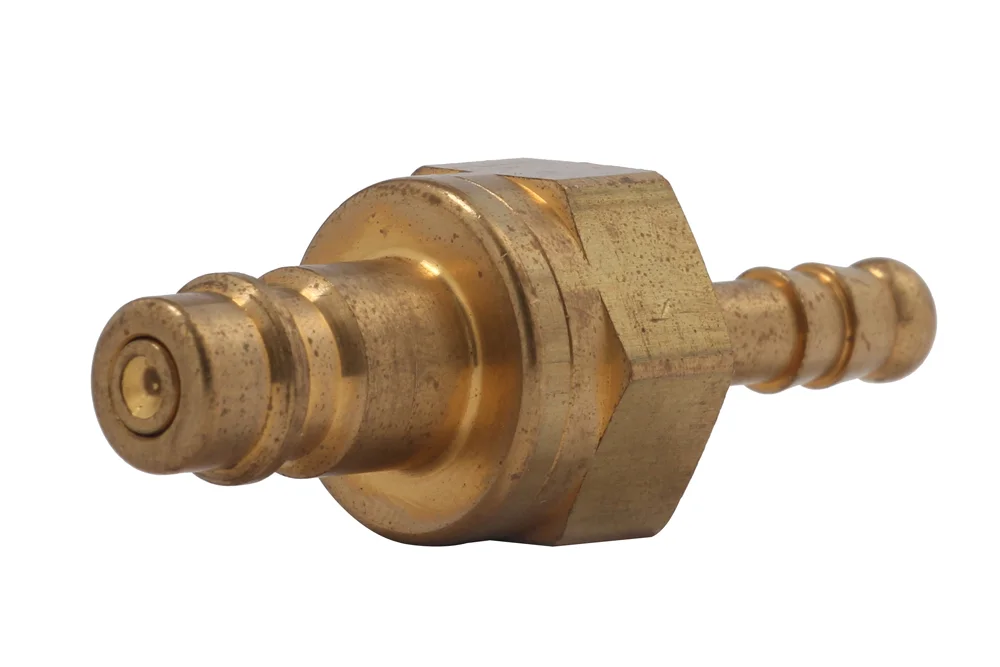

Plug quick coupling double shut-off with fitting for hose, brass, series 25KB DN 7.4

Additional information

Material

B – brass (bronze)

Plug quick coupling double shut-off series 25 DN 7.4 with fitting for hose, characterized by strong design, ensuring ideal tightness and very high factor flow thanks to use valve ULTRA-FLO. Application: equipment laboratories, sampling samples liquids and gases, tools pneumatic. Working pressure: 35 bar. flow capacity: 780 l/min, Pe=6 bar, Δp=0.5 bar, air. Material: brass (plug, A fitting plug), brass (valve), steel AISI 301 (spring). sealing: NBR. Operating temperature: od -20°C up to +100°C, depending on medium.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
RE-25SBTF06MPXQuick coupling plug 25SB DN7.4, for 6 mm hose, brass, NBR635In stock0 €
Enquiry
RE-25SBTF08MPXQuick coupling plug type 25 DN 7.4 double shut-off with fitting for 8 mm hose, brass835In stock0 €
Enquiry
RE-25SBTF09MPXQuick coupling plug 25SB DN7.4, for 9 mm hose, brass, NBR1035In stock0 €
Enquiry
RE-25SBTF10MPXQuick coupling plug type 25 DN 7.4 double shut-off with fitting for 10 mm hose, brass1035In stock0 €
Enquiry
RE-25SBTF13MPXQuick coupling plug 25SB DN7.4, for 13 mm hose, brass, NBR1235In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Plug quick coupling double shut-off series 25 DN 7.4 with fitting for hose, characterized by strong design, ensuring ideal tightness and very high factor flow thanks to use valve ULTRA-FLO. Application: equipment laboratories, sampling samples liquids and gases, tools pneumatic. Working pressure: 35 bar. flow capacity: 780 l/min, Pe=6 bar, Δp=0.5 bar, air. Material: brass (plug, A fitting plug), brass (valve), steel AISI 301 (spring). sealing: NBR. Operating temperature: od -20°C up to +100°C, depending on medium.

Additional information

Material

B – brass (bronze)
