Is the Brass Full-Flow Quick Coupling Socket with Hose End, NITTO KOHKI TSP CUPLA, compatible with hydraulic oils and steam at 50 bar?

Brass Full-Flow Quick Coupling Socket with Hose End, NITTO KOHKI TSP CUPLA Format Yes — the Brass Full-Flow Quick Coupling Socket with Hose End, NITTO KOHKI TSP CUPLA is compatible with hydraulic oils and steam, subject to pressure, size and seal selection. It is explicitly designed for media including hydraulic oils and steam. Working pressure limits depend on size: up to 50 bar for small sizes (1/8", 1/4", 3/8"), 30 bar for 1/2", 3/4", 1", 20 bar for 1¼"–1½" and 15 bar for 2". Seal material affects temperature/steam suitability: NBR seals for −20°C to +80°C, Viton seals up to +180°C. For steam at high temperatures/pressures choose Viton seals and ensure selected size’s pressure rating meets your 50 bar requirement (only 1/8", 1/4", 3/8" rated to 50 bar).

Can the Brass Full-Flow Quick Coupling Socket with Hose End, NITTO KOHKI TSP CUPLA, be fitted with Viton seals for continuous use at temperatures up to +180°C?

Yes. The Brass Full-Flow Quick Coupling Socket with Hose End, NITTO KOHKI TSP CUPLA can be fitted with Viton seals for continuous use up to +180°C. The coupling is offered with NBR seals for -20°C to +80°C and Viton seals specifically for extreme conditions up to +180°C, making the Viton-equipped version suitable for high-temperature applications while maintaining the product’s full‑flow performance, pressure ratings, and chemical resistance.

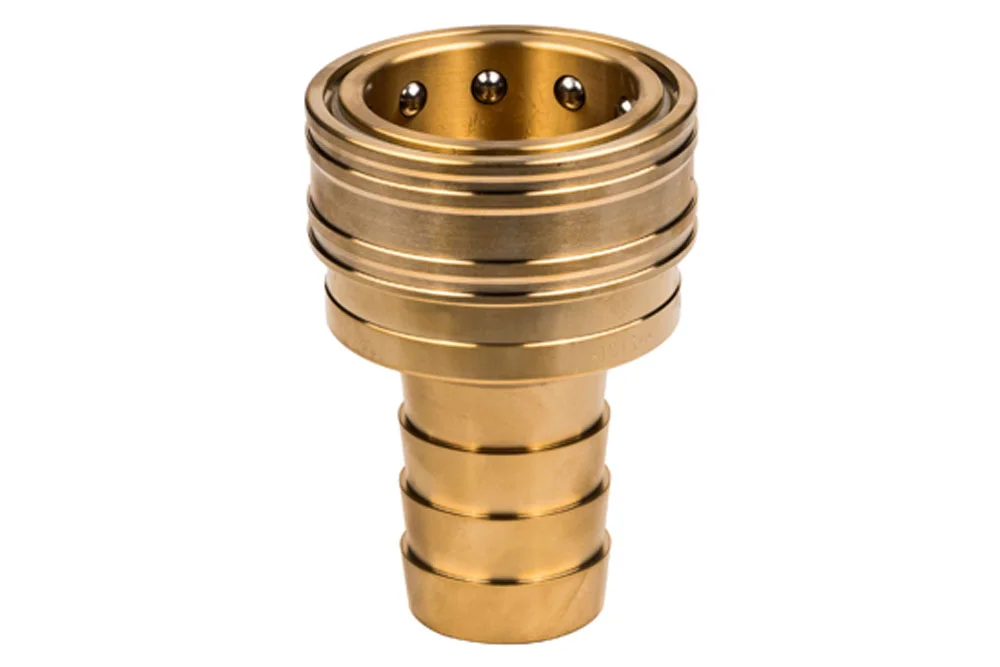

Socket quick coupling full-bore with A fitting for hose, NITTO KOHKI TSP CUPLA, brass

All products, General-purpose low-pressure quick couplings/

Additional information

Material	B – brass (bronze)

Socket quick coupling full-bore Nitto Kohki series TSP CUPLA with fitting for hose o excellent durability, intended for water, oils hydraulic, steam, chemicals, air and gases. especially recommended for liquids o high viscosity e.g. greases. Material: brass. Working pressure: 50 bar (1/8″, 1/4″, 3/8″), 30 bar (1/2″, 3/4″, 1″), 20 bar (1.1/4″, 1.1/2″), 15 bar (2″). Operating temperature: od -20°C up to +80°C (NBR), od -20°C up to +180°C (Viton).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
NK-10TSH-B	Quick coupling socket TSP CUPLA, for hose 1.1/4", brass	32	20	In stock	Enquiry
NK-12TSH-B	Quick coupling socket TSP CUPLA, for hose 1.1/2", brass	38	20	In stock	Enquiry
NK-16TSH-B	Quick coupling socket TSP CUPLA, for hose 2", brass	50	15	In stock	Enquiry
NK-1TSH-B	Quick coupling socket TSP CUPLA, for hose 1/8", brass	3	50	In stock	Enquiry
NK-2TSH-B	Quick coupling socket TSP CUPLA, for hose 1/4", brass	6	50	In stock	Enquiry
NK-3TSH-B	Quick coupling socket TSP CUPLA, for hose 3/8", brass	10	50	In stock	Enquiry
NK-4TSH-B	Quick coupling socket TSP CUPLA, for hose 1/2", brass	12	30	In stock	Enquiry
NK-6TSH-B	Quick coupling socket TSP CUPLA, for hose 3/4", brass	20	30	In stock	Enquiry
NK-6TSH-B-V	Quick coupling socket TSP CUPLA, for hose 3/4", brass, Viton	20	30	In stock	Enquiry
NK-8TSH-B	Quick coupling socket TSP CUPLA, for hose 1", brass	25	30	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

Socket quick coupling full-bore Nitto Kohki series TSP CUPLA with fitting for hose o excellent durability, intended for water, oils hydraulic, steam, chemicals, air and gases. especially recommended for liquids o high viscosity e.g. greases. Material: brass. Working pressure: 50 bar (1/8″, 1/4″, 3/8″), 30 bar (1/2″, 3/4″, 1″), 20 bar (1.1/4″, 1.1/2″), 15 bar (2″). Operating temperature: od -20°C up to +80°C (NBR), od -20°C up to +180°C (Viton).
