Is the PUSH-IN 90° Adjustable Brass Adapter with Male Thread, Type AI 58111 compatible with polyamide hoses and HNBR seals for use up to 150°C and 150 bar (liquid)?

Yes. The PUSH-IN 90° Adjustable Brass Adapter with Male Thread, Type AI 58111 is compatible with polyamide hoses and uses an HNBR o-ring, and its specified operating range supports use up to +150°C and a maximum working pressure of 150 bar for liquids.

Can the PUSH-IN 90° Adjustable Brass Adapter with Male Thread, Type AI 58111 be used with hydraulic oils at 150 bar and withstand repeated thermal cycling between -30°C and +150°C?

Yes. The PUSH-IN 90° Adjustable Brass Adapter with Male Thread, Type AI 58111 is specified for liquids up to 150 bar and an operating temperature range of -30°C to +150°C. Its nickel-plated brass body and HNBR o-ring are suitable for demanding lubrication applications and provide good resistance to wear, corrosion and sealing under thermal stress. It is compatible with polyamide hoses and designed for repeated use in that temperature range and pressure. Caveat: compatibility with specific hydraulic oils should be confirmed against the HNBR o-ring chemical resistance data for your exact fluid and any additives, and system-level factors (dynamic pressure spikes, media temperature at seals, and cycling rate) should be assessed to ensure long-term reliability.

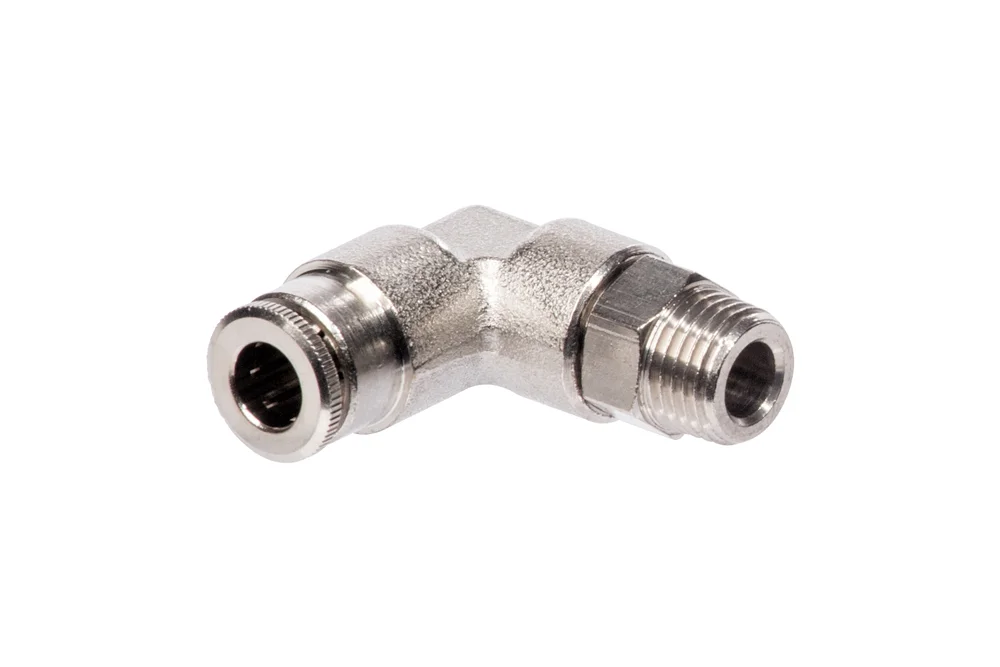

Fitting 90° adjustable PUSH-IN with thread external, brass, type AI 58111

Additional information

Material	B – brass (bronze)
Standard length [m]	2

Fitting 90° adjustable PUSH-IN for hose terminated thread external BSPT or metric. Do use in technology lubrication. recommended material joined hoses is polyamide. Body material: brass nickel-plated. Material seal: O-ring (HNBR). Operating temperature: od -30°C up to +150°C. maximum Working pressure: 150 bar (for liquids), 30 bar (for air).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
AI-58111-04-02	Fitting angled adjustable PUSH-IN hose 4 mm, 1/8" BSPT male	-	150	In stock	Enquiry
AI-58111-04-M10	Fitting angled adjustable PUSH-IN hose 4 mm, M10x1 male cone	-	150	In stock	Enquiry
AI-58111-04-M6	Fitting angled adjustable PUSH-IN hose 4 mm, M6x1 male cone	-	150	In stock	Enquiry
AI-58111-04-M8	Fitting angled adjustable PUSH-IN hose 4 mm, M8x1 male cone	-	150	In stock	Enquiry
AI-58111-06-02	Fitting angled adjustable PUSH-IN hose 6 mm, 1/8" BSPT male	-	150	In stock	Enquiry
AI-58111-06-M10	Fitting angled adjustable PUSH-IN hose 6 mm, M10x1 male cone	-	150	In stock	Enquiry
AI-58111-06-M6	Fitting angled adjustable PUSH-IN hose 6 mm, M6x1 male cone	-	150	In stock	Enquiry
AI-58111-06-M8	Fitting angled adjustable PUSH-IN hose 6 mm, M8x1 male cone	-	150	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

Fitting 90° adjustable PUSH-IN for hose terminated thread external BSPT or metric. Do use in technology lubrication. recommended material joined hoses is polyamide. Body material: brass nickel-plated. Material seal: O-ring (HNBR). Operating temperature: od -30°C up to +150°C. maximum Working pressure: 150 bar (for liquids), 30 bar (for air).
