Is the Brass Mini Ball Valve with Plug-In Hose Connector, Type 6560 compatible with potable water and food-grade applications?

Brass Mini Ball Valve with Plug-In Hose Connector, Type 6560 is suitable for potable water and many food‑grade applications with some important reservations. Its nickel‑plated brass body and chrome‑plated brass ball offer durability and corrosion resistance compatible with water use. However, the seal materials—Teflon (PTFE) for the ball and NBR (nitrile rubber) for the spindle—are decisive: PTFE is generally food‑safe and chemically inert, while NBR is not universally rated for all food or potable water standards (it can be acceptable for some water uses but may not meet specific food‑contact regulations such as FDA or EU 1935/2004 without certification). Therefore, for potable water and food‑grade applications you should: - Verify that the specific valve batch has appropriate certifications (e.g., NSF/ANSI 61 for drinking water, FDA compliance or EU food‑contact approval) for your regulatory region. - Confirm NBR suitability for your product (temperature, chemicals, flavor transfer) or request an alternative seal (e.g., EPDM or FDA‑grade elastomer) if required. - Consider media compatibility at the operating temperature range (−20°C to +80°C). Without explicit regulatory certification provided by the manufacturer, do not assume full compliance for potable water or food‑grade uses.

Can the Brass Mini Ball Valve with Plug-In Hose Connector, Type 6560 be used with aggressive chemicals or solvents without additional protective coatings?

Brass Mini Ball Valve with Plug-In Hose Connector, Type 6560 is suitable for a wide range of media including many chemicals and petrochemical products due to its nickel-plated brass body, chrome-plated brass ball, PTFE (Teflon) ball seal and NBR spindle seal. However, compatibility with aggressive chemicals or solvents cannot be assumed universally. Strong acids, alkalis, ketones, chlorinated solvents, or highly oxidative agents can attack brass, nickel plating, chrome plating, PTFE or NBR seals differently. NBR is particularly susceptible to swelling or hardening in many solvents, and some aggressive media can degrade metal platings or cause stress corrosion. Recommendation: consult the chemical resistance data for each wetted material (nickel-plated brass, chrome-plated brass, PTFE, NBR) against the specific chemical and operating temperature/concentration. For aggressive chemicals or prolonged exposure, consider valves with chemically resistant materials (e.g., stainless steel, Monel, PTFE-encapsulated components, FKM/Viton seals) or request additional protective coatings. If in doubt, perform compatibility testing or contact the manufacturer for confirmation before use.

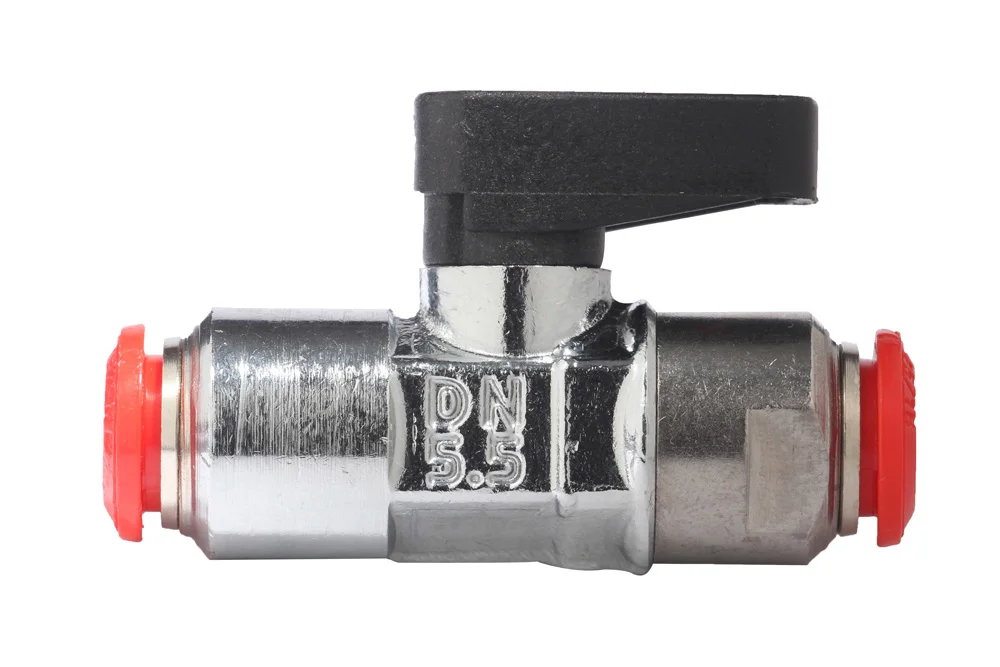

Brass Mini Ball Valve with Plug-In Hose Connector, Type 6560

All products, Pneumatic valves/

Additional information

Material	B – brass (bronze)

The universal valve type 6560 is a reliable solution designed for demanding industrial installations, ensuring safe and efficient flow control across a wide range of applications. Engineered for versatility, it is suitable for air, gases, water, chemicals, and petrochemical products, making it an essential component in diverse sectors. Its robust body is crafted from nickel-plated brass, while the ball is made of chrome-plated brass, guaranteeing durability and resistance to wear. The sealing system combines Teflon for the ball and NBR for the spindle, providing excellent tightness and long-lasting performance. With an operating temperature range from -20°C to +80°C, this valve delivers consistent functionality even under challenging conditions. Designed to meet the highest standards of reliability, the type 6560 valve offers a cost-effective and efficient solution for industries seeking dependable flow control with minimal maintenance requirements.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
AI-6560-04	Mini ball valve type 6560, hose 4 mm	4	20	In stock	Enquiry
AI-6560-06	Mini ball valve type 6560, hose 6 mm	6	20	In stock	Enquiry
AI-6560-08	Mini ball valve type 6560, hose 8 mm	8	20	In stock	Enquiry
AI-6560-10	Mini ball valve type 6560, hose 10 mm	10	20	In stock	Enquiry
AI-6560-12	Mini ball valve type 6560, hose 12 mm	12	20	In stock	Enquiry
