Is the Brass Quick Connector Socket DN13 with Female Thread, TST 190 Series compatible with hot oil and steam applications up to 200°C?

Yes. The Brass Quick Connector Socket DN13 with Female Thread, TST 190 Series is compatible with hot oil and steam applications up to 200°C when equipped with Viton sealing. It is rated for a working pressure up to 25 bar and an operating temperature range of -20°C to +200°C (with Viton), constructed from brass with stainless steel reinforcement for durability, and is explicitly stated as suitable for hot oil and steam systems.

Can the Brass Quick Connector Socket DN13 with Female Thread, TST 190 Series be used for cooling injection molds and die-cast parts made of aluminum, brass, or zinc alloys?

Yes. The Brass Quick Connector Socket DN13 with Female Thread, TST 190 Series is suitable for cooling injection molds and die-cast parts made of aluminum, brass, and zinc alloys. With a 13 mm flow diameter, up to 25 bar working pressure, and an operating temperature range of -20°C to +200°C (with Viton sealing), it supports reliable thermal management in demanding conditions. Its brass body and valve sleeve, combined with stainless steel spring, ring, and balls, provide durability and wear resistance for continuous use. The coupling’s sealed design ensures secure, leak-free connections, making it well suited for cooling circuits in injection molding and die-casting processes, as well as related applications involving water, hot oil, or steam.

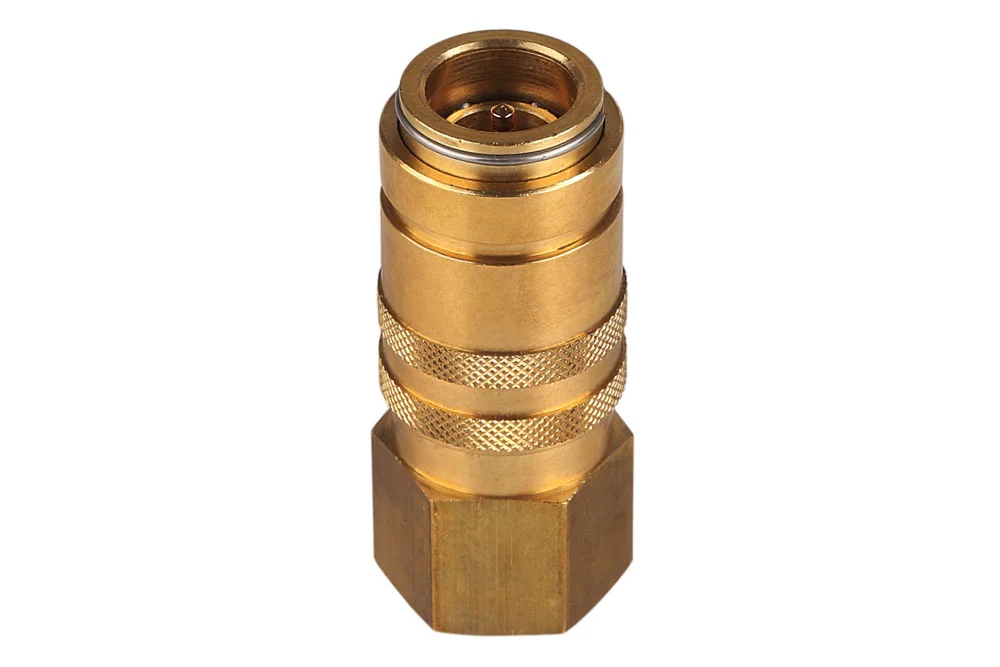

Socket DN 13 quick coupling with thread internal, series TST 190, brass

Additional information

Material	B – brass (bronze)

Socket DN13 quick coupling with thread internal BSP and metric, with valve or without valve. used widely in industry for cooling moulds injection and casting parts with plastics, aluminum, brass and alloys zinc. can be used for water in cleaning machines, for hot oil, steam water. Diameter bore: 13 mm. Working pressure: 25 bar. Operating temperature: od -20°C up to +200°C (Viton). Material: brass (body socket, Connection, sleeve valve), steel stainless (spring, ring, balls).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
FW-CSK190-DG21	Socket DN 13 with 1/2" BSP female, with a valve	-	25	In stock	Enquiry
FW-CSK190-DG26	Socket DN 13 with 3/4" BSP female, with a valve	-	25	In stock	Enquiry
FW-CSK190-DGM24	Socket DN 13 with M24x1.5 female, with a valve	-	25	In stock	Enquiry
FW-SK190-DG21	Socket DN 13 with 1/2" BSP female, without valve	-	25	In stock	Enquiry
FW-SK190-DG26	Socket DN 13 with 3/4" BSP female, without valve	-	25	In stock	Enquiry
FW-SK190-DGM24	Socket DN 13 with M24x1.5 female, without valve	-	25	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

Socket DN13 quick coupling with thread internal BSP and metric, with valve or without valve. used widely in industry for cooling moulds injection and casting parts with plastics, aluminum, brass and alloys zinc. can be used for water in cleaning machines, for hot oil, steam water. Diameter bore: 13 mm. Working pressure: 25 bar. Operating temperature: od -20°C up to +200°C (Viton). Material: brass (body socket, Connection, sleeve valve), steel stainless (spring, ring, balls).
