Is the Brass Threaded Quick-Connect Socket DN2.7 with Double Shut-Off Valve, Series 20KA suitable for use with nitrogen at 35 bar and temperatures down to -20°C?

Yes. The Brass Threaded Quick-Connect Socket DN2.7 with Double Shut-Off Valve, Series 20KA is suitable for use with nitrogen at 35 bar and temperatures down to -20°C. The product description explicitly lists nitrogen among compatible non-flammable gases, specifies a maximum working pressure of up to 35 bar, and states an operating temperature range from -20°C to +100°C. Materials (brass body, AISI 301 springs/rings, AISI 420 balls) and NBR sealing support durability and reliable tightness under these conditions. Ensure compatibility with any system-specific requirements (thread type, seal material compatibility with contaminants) before installation.

Can the Brass Threaded Quick-Connect Socket DN2.7 with Double Shut-Off Valve, Series 20KA be used for compressed air systems at 6 bar with a flow rate of 165 l/min?

Yes. The Brass Threaded Quick-Connect Socket DN2.7 with Double Shut-Off Valve, Series 20KA is suitable for compressed air at 6 bar with a flow rate of 165 l/min. The product description explicitly states a flow rate of 165 l/min at 6 bar for air, supports working pressures up to 35 bar, and is designed for air and other non-flammable gases. Its double shut-off valves, brass construction, stainless steel components, and NBR sealing provide reliable, leak-free performance and durability within the operating temperature range of −20°C to +100°C.

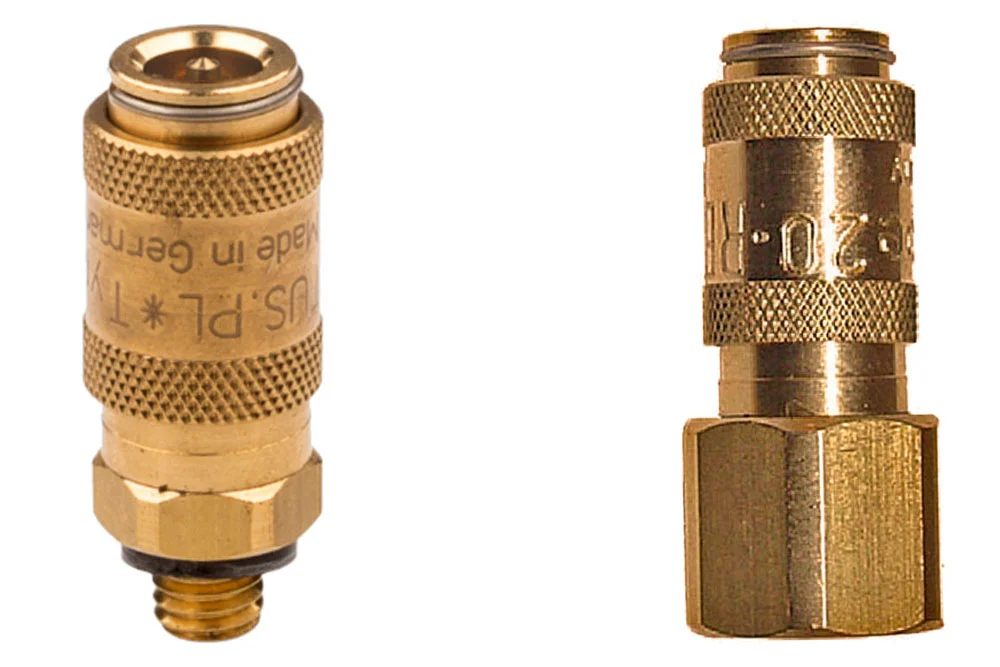

Brass Threaded Quick-Connect Socket DN2.7 with Double Shut-Off Valve, Series 20KA

All products, General-purpose low-pressure quick couplings/

Additional information

Material	B – brass (bronze)
Standard length [m]	10

The compact quick-connect socket of the DN 2.7 series 20KA is engineered for maximum efficiency and reliability in demanding applications. Featuring a double shut-off system with integrated valves in both the socket and the plug, it guarantees secure and leak-free operation, making it ideal for use with water, air, nitrogen, and other non-flammable gases. Its versatility is enhanced by the option of external or internal BSP or metric threads, ensuring seamless integration into various systems. With a flow rate of 165 l/min at 6 bar for air and 3 l/min for water, combined with a working pressure of up to 35 bar, this connector delivers consistent performance even under challenging conditions. The robust construction, using high-quality brass, AISI 301 stainless steel springs and rings, and AISI 420 stainless steel balls, ensures long-lasting durability and resistance to wear. NBR sealing provides reliable tightness, while the wide operating temperature range from -20°C to +100°C allows for use in diverse environments. Compact in size yet powerful in performance, the 20KA series quick-connect socket is the perfect solution for industries seeking safety, efficiency, and durability in fluid and gas handling systems.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
RE-20KBAM05MPX	Quick coupling socket 20KB DN2.7, GZ M5, brass, NBR	-	35	In stock	Enquiry
RE-20KBAW10MPX	Quick coupling socket 20KB DN2.7, GZ 1/8" BSP, brass, NBR	-	35	In stock	Enquiry
RE-20KBIM05MPX	Quick coupling socket 20KB DN2.7, GW M5, brass, NBR	-	35	In stock	Enquiry
RE-20KBIW10MPX	Quick coupling socket 20KB DN2.7, GW 1/8" BSP, brass, NBR	-	35	In stock	Enquiry
