Coupling TW DIN 28450 with a female BSP thread, brass, type VK

Additional information

Material

B – brass (bronze)

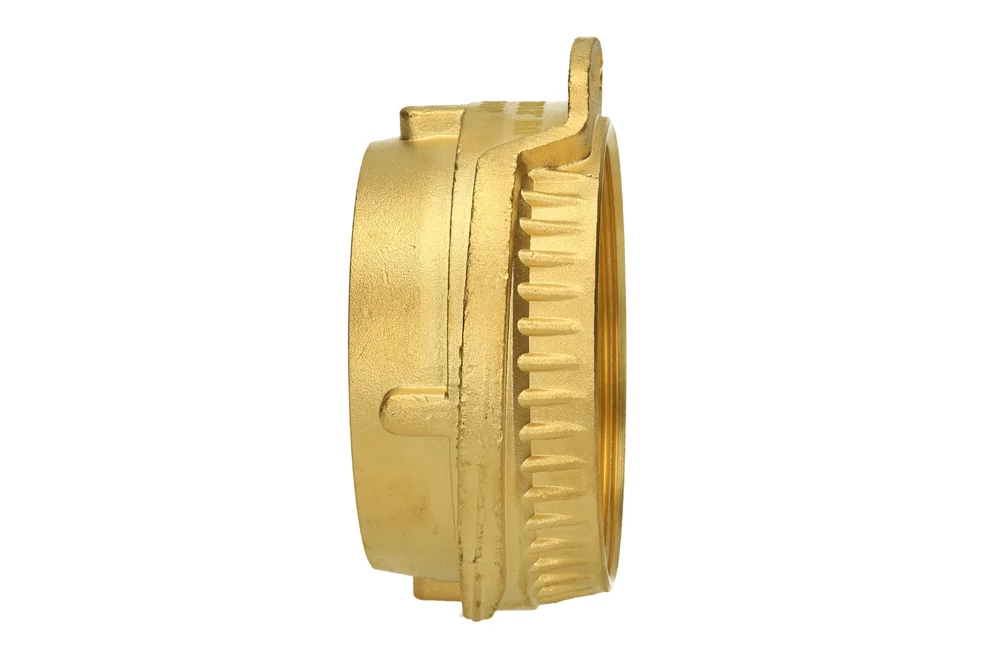

Plug coupling reloading TW type VK with thread internal BSP. intended for mounting on ends for hose or installations pipe having thread external BSP. made in accordance with the standard EN ISO 14420-6 (formerly DIN 28450). intended for liquids, bulk materials and gases (with the exception liquefied gas and steam). Material: brass. pressure: od -0.8 bar up to 16 bar. Operating temperature: od -20°C up to +65°C (should take into account medium and Material seal). sealing thread (type the gasket GD): polyurethane.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
TW-VK-050-MSAdapter VK 50 (TW 1501) with 2" BSP female, brass-16In stock0 €
Enquiry
TW-VK-050-MSRAdapter VK 50 (TW 1501) with 2" BSP female, brass-16In stock0 €
Enquiry
TW-VK-080-MSAdapter VK 80 (TW 501) with 3" BSP female, brass-16In stock0 €
Enquiry
TW-VK-080-MSRAdapter VK 80 (TW 501) with 3" BSP female, brass-16In stock0 €
Enquiry
TW-VK-100-MSAdapter VK 100 with 4" BSP female, brass-16In stock0 €
Enquiry
TW-VK-100-MSRAdapter VK 100 with 4" BSP female, brass-16In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Plug coupling reloading TW type VK with thread internal BSP. intended for mounting on ends for hose or installations pipe having thread external BSP. made in accordance with the standard EN ISO 14420-6 (formerly DIN 28450). intended for liquids, bulk materials and gases (with the exception liquefied gas and steam). Material: brass. pressure: od -0.8 bar up to 16 bar. Operating temperature: od -20°C up to +65°C (should take into account medium and Material seal). sealing thread (type the gasket GD): polyurethane.

Additional information

Material

B – brass (bronze)

Do you need a larger quantity of products or a bespoke quote?
