Hydraulic Pilot-Operated Check Valve for Double-Acting Cylinders, BSP, FPDL

All products, Directional control valves/

Additional information

Material	CS – steel (cast iron)

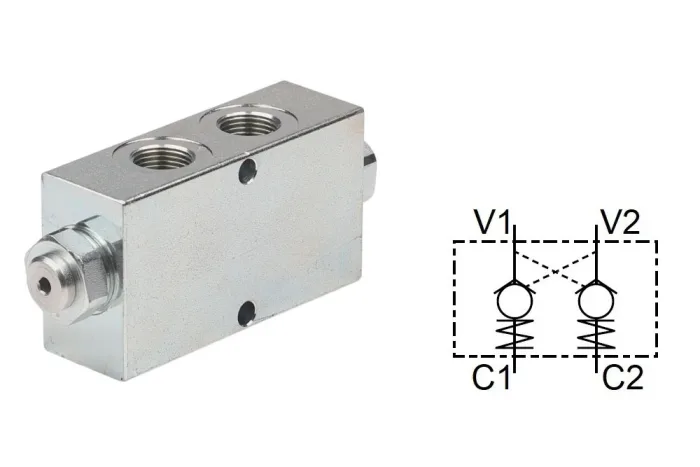

The FPDL type controlled check valve is a reliable safety component designed for hydraulic systems, effectively preventing unintended movements of double-acting actuators during both piston rod extension and retraction. It ensures secure operation with permissible flow directions V1 → C1 (simultaneously C2 → V2) and V2 → C2 (simultaneously C1 → V1), providing precise control and dependable performance. The valve body is manufactured from high-quality galvanized steel in sizes 1/4″ and 3/8″, or lightweight aluminum in 1/2″ and 3/4″, while the stem is made of hardened steel for maximum durability. Equipped with NBR seals, it guarantees excellent resistance to wear and hydraulic fluids, maintaining tightness even under demanding conditions. With an opening pressure of 3 bar and an operating temperature range from -20°C to +100°C, the valve is suitable for a wide variety of industrial applications. Two mounting holes, clearly visible in the design, allow for quick and secure installation, making the FPDL valve a practical and efficient solution for enhancing the safety and reliability of hydraulic systems.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
DC-FPDL-04	FPDL GW 1/4" controlled check valve	-	350	In stock	Enquiry
DC-FPDL-06	FPDL GW 3/8" controlled check valve	-	350	In stock	Enquiry
DC-FPDL-08	FPDL GW 1/2" controlled check valve	-	260	In stock	Enquiry
DC-FPDL-12	FPDL GW 3/4" controlled check valve	-	260	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The FPDL type controlled check valve is a reliable safety component designed for hydraulic systems, effectively preventing unintended movements of double-acting actuators during both piston rod extension and retraction. It ensures secure operation with permissible flow directions V1 → C1 (simultaneously C2 → V2) and V2 → C2 (simultaneously C1 → V1), providing precise control and dependable performance. The valve body is manufactured from high-quality galvanized steel in sizes 1/4″ and 3/8″, or lightweight aluminum in 1/2″ and 3/4″, while the stem is made of hardened steel for maximum durability. Equipped with NBR seals, it guarantees excellent resistance to wear and hydraulic fluids, maintaining tightness even under demanding conditions. With an opening pressure of 3 bar and an operating temperature range from -20°C to +100°C, the valve is suitable for a wide variety of industrial applications. Two mounting holes, clearly visible in the design, allow for quick and secure installation, making the FPDL valve a practical and efficient solution for enhancing the safety and reliability of hydraulic systems.
