Is the Walterscheid™ SV Straight Bulkhead Fitting, Carbon Steel compatible with both L (light) and S (heavy) series hydraulic systems?

Yes. The Walterscheid™ SV Straight Bulkhead Fitting, Carbon Steel is available in both L (light) and S (heavy) series, so it is compatible with hydraulic systems that use either L- or S-series DIN 2353 connections.

Does the Walterscheid™ SV Straight Bulkhead Fitting, Carbon Steel require a specific counter nut torque specification for L and S series installations?

Does the Walterscheid™ SV Straight Bulkhead Fitting, Carbon Steel require a specific counter nut torque specification for L and S series installations? Yes. The Walterscheid™ SV Straight Bulkhead Fitting, Carbon Steel should be assembled using the counter nut torque values specified for DIN 2353 24° fittings for the respective series: use the torque (tightening) values appropriate to the L (light) series and the higher values for the S (heavy) series. Because material, thread size and series (L vs S) determine the correct torque, always refer to the DIN 2353/Eaton/Walterscheid installation torque chart for the exact metric thread sizes used. If a manufacturer-specific torque table is provided by Eaton/Walterscheid for the SV fitting, follow that. In absence of a proprietary table, apply the standard DIN 2353 torque recommendations for the corresponding series and thread size to ensure leak-free, safe assembly.

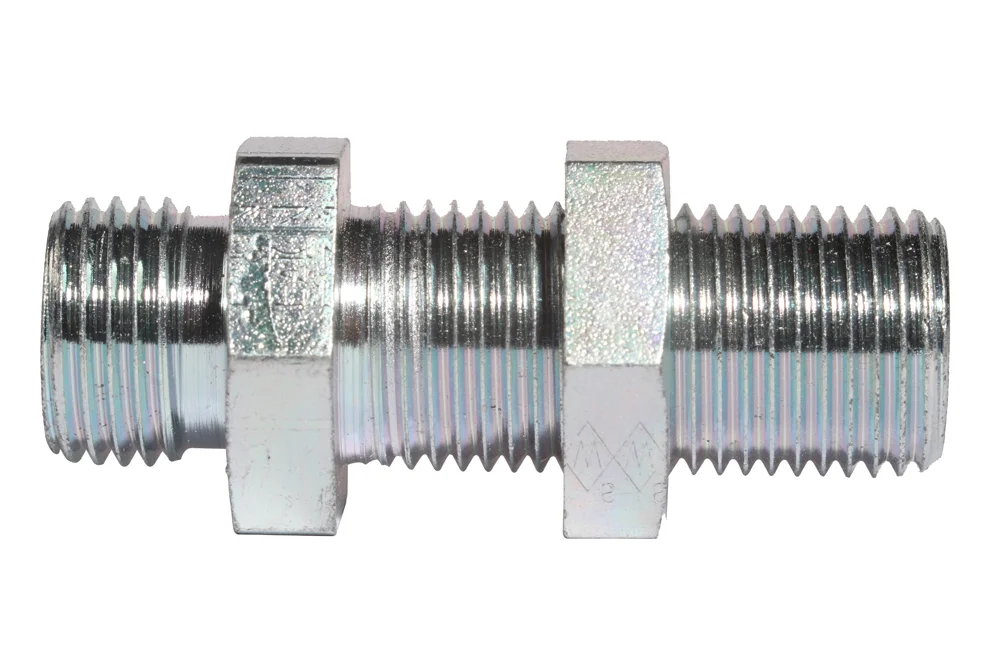

Walterscheid™ SV Straight Bulkhead Fitting, Carbon Steel

Additional information

Material	CS – steel (cast iron)

The DIN 2353 Eaton Walterscheid™ straight partition fitting, type SV with counter nut, is engineered to deliver reliable performance and long-lasting durability in demanding hydraulic applications. Featuring a precise 24° DIN 2353 socket on both sides with external metric thread, it ensures secure and leak-free connections even under high pressure. Available in both L (light series) and S (heavy series), this versatile fitting provides flexibility to match a wide range of system requirements. Manufactured from robust carbon steel and enhanced with the advanced Guardian Seal™ galvanic coating, it offers superior resistance to corrosion and wear, significantly extending service life and reducing maintenance costs. Designed for efficiency, safety, and compatibility, this fitting is the ideal choice for professionals seeking dependable solutions that optimize system performance and reliability.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HD-SV-06L-W	Walterscheid fitting DIN 2353 SV 6L	-	500	In stock	Enquiry
HD-SV-06S-W	Walterscheid fitting DIN 2353 SV 6S	-	800	In stock	Enquiry
HD-SV-08L-W	Walterscheid fitting DIN 2353 SV 8L	-	500	In stock	Enquiry
HD-SV-08S-W	Walterscheid fitting DIN 2353 SV 8S	-	800	In stock	Enquiry
HD-SV-10L-W	Walterscheid fitting DIN 2353 SV 10L	-	500	In stock	Enquiry
HD-SV-10S-W	Walterscheid fitting DIN 2353 SV 10S	-	800	In stock	Enquiry
HD-SV-12L-W	Walterscheid fitting DIN 2353 SV 12L	-	400	In stock	Enquiry
HD-SV-12S-W	Walterscheid fitting DIN 2353 SV 12S	-	630	In stock	Enquiry
HD-SV-15L-W	Walterscheid fitting DIN 2353 SV 15L	-	400	In stock	Enquiry
HD-SV-16S-W	Walterscheid fitting DIN 2353 SV 16S	-	630	In stock	Enquiry
HD-SV-18L-W	Walterscheid fitting DIN 2353 SV 18L	-	400	In stock	Enquiry
HD-SV-20S-W	Walterscheid fitting DIN 2353 SV 20S	-	420	In stock	Enquiry
HD-SV-22L-W	Walterscheid fitting DIN 2353 SV 22L	-	250	In stock	Enquiry
HD-SV-25S-W	Walterscheid fitting DIN 2353 SV 25S	-	420	In stock	Enquiry
HD-SV-28L-W	Walterscheid fitting DIN 2353 SV 28L	-	250	In stock	Enquiry
HD-SV-30S-W	Walterscheid fitting DIN 2353 SV 30S	-	400	In stock	Enquiry
HD-SV-35L-W	Walterscheid fitting DIN 2353 SV 35L	-	250	In stock	Enquiry
HD-SV-38S-W	Walterscheid fitting DIN 2353 SV 38S	-	400	In stock	Enquiry
HD-SV-42L-W	Walterscheid fitting DIN 2353 SV 42L	-	250	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The DIN 2353 Eaton Walterscheid™ straight partition fitting, type SV with counter nut, is engineered to deliver reliable performance and long-lasting durability in demanding hydraulic applications. Featuring a precise 24° DIN 2353 socket on both sides with external metric thread, it ensures secure and leak-free connections even under high pressure. Available in both L (light series) and S (heavy series), this versatile fitting provides flexibility to match a wide range of system requirements. Manufactured from robust carbon steel and enhanced with the advanced Guardian Seal™ galvanic coating, it offers superior resistance to corrosion and wear, significantly extending service life and reducing maintenance costs. Designed for efficiency, safety, and compatibility, this fitting is the ideal choice for professionals seeking dependable solutions that optimize system performance and reliability.
