Is the Collet for Hydraulic Hoses 4SH, R13, R15, Carbon Steel, IL4 Type compatible only with INTERLOCK fittings?

Collet for Hydraulic Hoses 4SH, R13, R15, Carbon Steel, IL4 Type is engineered exclusively for use with INTERLOCK hydraulic fittings from the same supplier, so it is compatible only with INTERLOCK fittings. The IL4 sleeve’s design, machining requirements and dimensions are matched to INTERLOCK fittings to ensure precise fit, secure clamping and maximum safety; using it with non‑INTERLOCK fittings may result in improper fit and compromised performance.

Can the Collet for Hydraulic Hoses 4SH, R13, R15, Carbon Steel, IL4 Type be used with hydraulic fittings from other manufacturers if specifications match?

Collet for Hydraulic Hoses 4SH, R13, R15, Carbon Steel, IL4 Type is engineered exclusively for use with INTERLOCK hydraulic fittings from the same supplier. Even if another manufacturer’s fittings match the nominal dimensions (D1, D2, D3) and appear compatible, using the IL4 collet with third‑party fittings is not recommended. The IL4’s design, tolerances, and requirement for both external and internal machining during assembly are matched to INTERLOCK fittings to ensure a precise seal, correct clamping engagement and safe performance under high pressure. Subtle differences in thread form, shoulder geometry, material hardness or machining tolerances between manufacturers can compromise fit, cause leaks, premature wear or failure, and may void warranties or safety approvals. If you consider cross‑use, obtain written confirmation from both suppliers that their components are fully compatible and meet the same specifications and assembly procedures; otherwise use IL4 only with INTERLOCK fittings.

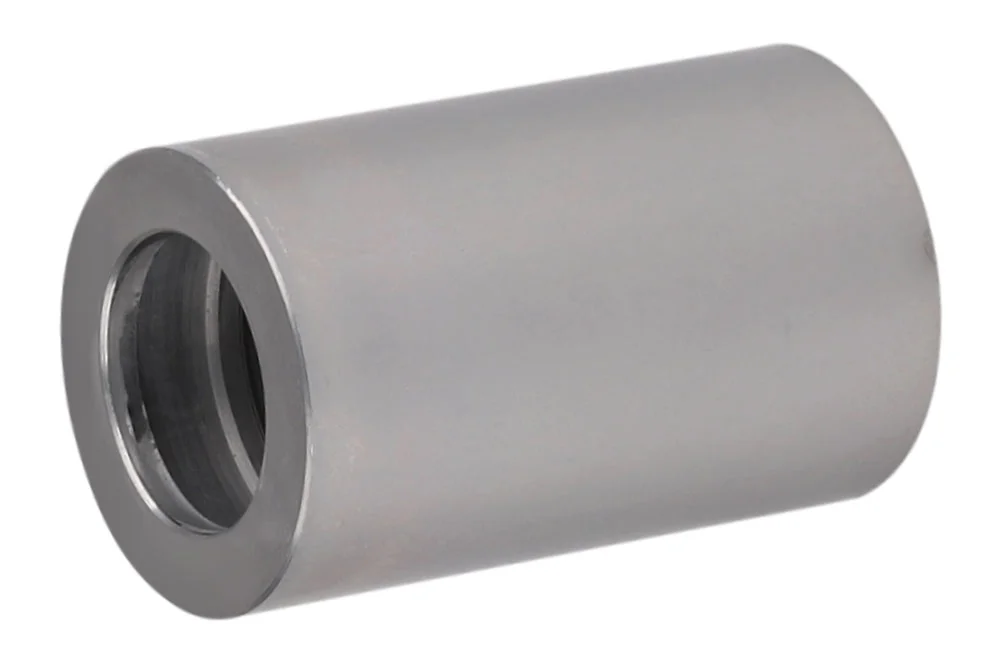

Collet for Hydraulic Hoses 4SH, R13, R15, Carbon Steel, IL4 Type

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

The IL4 clamping sleeve is a robust and reliable solution designed for rubber hydraulic hoses with spiral reinforcement types 4SH, R13, and R15, ensuring secure and durable connections in demanding hydraulic systems. Engineered exclusively for use with INTERLOCK hydraulic fittings from the same supplier, it guarantees perfect compatibility and maximum safety of operation. The sleeve requires both external and internal machining during assembly, providing a precise and stable fit that enhances system performance. With carefully defined dimensions—D1 as the outer diameter, D2 as the inner diameter, and D3 as the lock diameter—it allows for accurate selection and seamless integration into hydraulic installations. Manufactured from high-quality carbon steel and finished with a protective galvanization layer, the IL4 sleeve offers excellent resistance to wear, corrosion, and extreme working conditions, making it an ideal choice for industries where reliability and durability are essential.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-IL4-12	INTERLOCK sleeve for hose 4SH/R13/R15 3/4"	20	-	In stock	Enquiry
TI-IL4-16	INTERLOCK sleeve for hose 4SH/R13/R15 1"	25	-	In stock	Enquiry
TI-IL4-20	INTERLOCK sleeve for hose 4SH 1.1/4"	32	-	In stock	Enquiry
TI-IL4-24	INTERLOCK sleeve for hose 4SH 1.1/2"	38	-	In stock	Enquiry
TI-IL4-32	INTERLOCK sleeve for hose 4SH 2"	50	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The IL4 clamping sleeve is a robust and reliable solution designed for rubber hydraulic hoses with spiral reinforcement types 4SH, R13, and R15, ensuring secure and durable connections in demanding hydraulic systems. Engineered exclusively for use with INTERLOCK hydraulic fittings from the same supplier, it guarantees perfect compatibility and maximum safety of operation. The sleeve requires both external and internal machining during assembly, providing a precise and stable fit that enhances system performance. With carefully defined dimensions—D1 as the outer diameter, D2 as the inner diameter, and D3 as the lock diameter—it allows for accurate selection and seamless integration into hydraulic installations. Manufactured from high-quality carbon steel and finished with a protective galvanization layer, the IL4 sleeve offers excellent resistance to wear, corrosion, and extreme working conditions, making it an ideal choice for industries where reliability and durability are essential.
