Is the SAE 6000 Supercat 45° Flange End, Type ZSK313, Carbon Steel compatible with crimping sleeves for high‑pressure hydraulic hoses?

Yes. The SAE 6000 Supercat 45° Flange End, Type ZSK313, Carbon Steel is compatible with crimping sleeves for high‑pressure hydraulic hoses. Its precise 45° geometry and robust carbon steel construction, plus galvanized corrosion protection, are specifically engineered to allow secure clamping when used with a crimping sleeve matched to the hose type. When the correct sleeve and crimping parameters for the specific hose are used, the assembly achieves a tight, leak‑free connection suitable for high‑pressure hydraulic service. Ensure you select the proper sleeve size/material and follow the hose and fitting manufacturer's crimping specifications and industry standards for safe, reliable performance.

Can the SAE 6000 Supercat 45° Flange End, Type ZSK313, Carbon Steel be used in corrosive or marine environments without additional protective coatings?

No. The SAE 6000 Supercat 45° Flange End, Type ZSK313, Carbon Steel is supplied with a durable galvanized coating that provides good general corrosion resistance and protection in many industrial environments. However, galvanized carbon steel is not sufficient for prolonged exposure to highly corrosive atmospheres (acidic or alkaline chemical environments), continuous salt‑water splash, immersion, or marine/offshore conditions where chloride attack and accelerated corrosion occur. For those applications additional protection is recommended — e.g., thicker specialized coatings (epoxy, polyurethane), stainless steel materials, cathodic protection, or compatible corrosion‑resistant plating — plus appropriate sealing and maintenance. Specify the exact service conditions to select the correct protective measure.

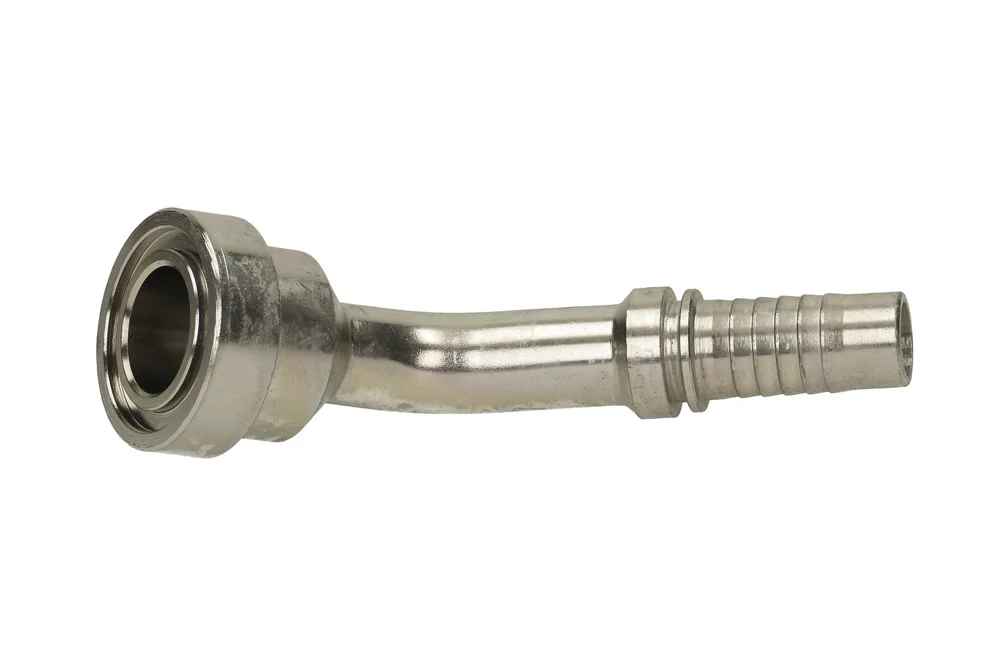

SAE 6000 Supercat 45° Flange End, Type ZSK313, Carbon Steel

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

The SAE 6000 SUPERCAT (SFS) flange end with a 45° angled design is a robust and reliable solution engineered for demanding hydraulic and industrial applications. Manufactured from high‑quality carbon steel and protected with a durable galvanized coating, it ensures long‑lasting resistance to wear, corrosion, and harsh working environments. Its precise geometry allows secure clamping when used with a crimping sleeve tailored to the specific hose type, guaranteeing a tight, leak‑free connection even under high pressure. This flange end is optimized for performance, offering exceptional strength, safety, and efficiency in fluid transfer systems. Designed to meet the highest industry standards, it provides versatility across a wide range of installations, making it an excellent choice for professionals seeking durability, reliability, and ease of assembly in their hydraulic setups.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZSK313-12-12	End fitting 45° SAE 3/4", hose 3/4" SUPERCAT	20	-	In stock	Enquiry
TI-ZSK313-16-12	End fitting 45° SAE 1", hose 3/4" SUPERCAT	20	-	In stock	Enquiry
TI-ZSK313-16-16	End fitting 45° SAE 1", hose 1" SUPERCAT	25	-	In stock	Enquiry
TI-ZSK313-20-16	End fitting 45° SAE 1.1/4", hose 1" SUPERCAT	25	-	In stock	Enquiry
TI-ZSK313-20-20	End fitting 45° SAE 1.1/4", hose 1.1/4" SUPERCAT	32	-	In stock	Enquiry
TI-ZSK313-24-20	End fitting 45° SAE 1.1/2", hose 1.1/4" SUPERCAT	32	-	In stock	Enquiry
TI-ZSK313-24-24	End fitting 45° SAE 1.1/2", hose 1.1/2" SUPERCAT	38	-	In stock	Enquiry
