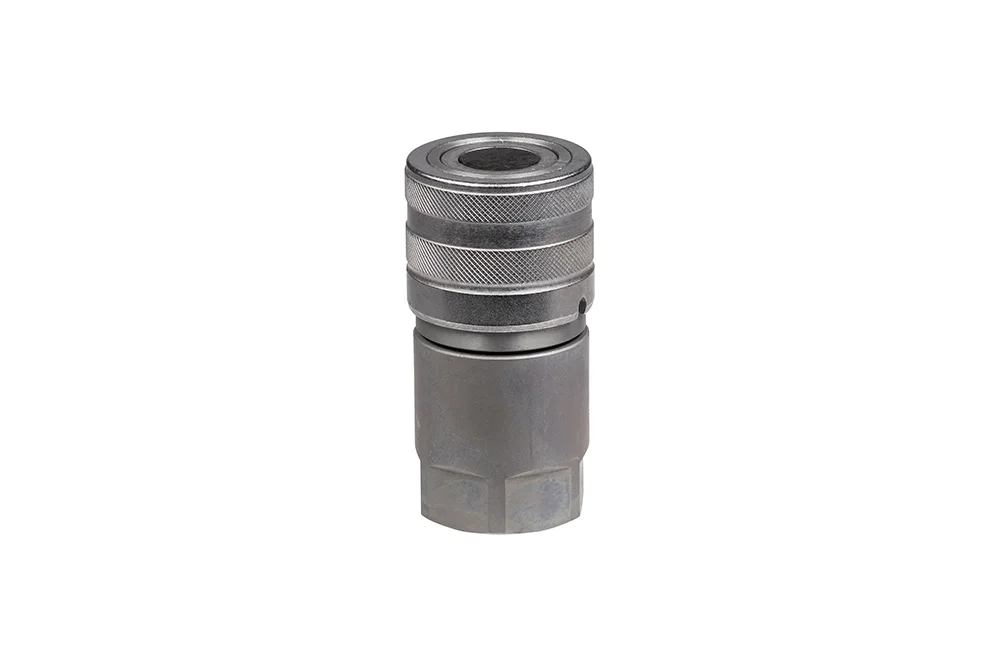

Quick coupling hydraulic Leak-free DNP PLT4, socket with female thread of carbon steel

Additional information

Material

CS – steel (cast iron)

Leak-free socket quick coupling type “flat-face” intended mainly for machine construction, in which available large strokes pressure. has stem securing against accidental disconnection. quick coupling can be operated one hand. depending on use should select appropriate Material seal. interchangeable with quick coupling ISO-F other manufacturers. standard: ISO 16028 (besides size DN5). Application: hydraulics power (oil hydraulic), industrial. Working pressure: up to 500 bar. Material: steel with coating zinc – nickel. sealing: NBR (od -25°C up to +100°C), Viton (od -15°C up to +200°C).

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
DP-PLT4-0404112Socket DN5 with 1/8" BSP female, seal NBR, with a valve-500In stock0 €
Enquiry
DP-PLT4-0606112Socket DN6 with 1/4" BSP female, seal NBR, with a valve-400In stock0 €
Enquiry
DP-PLT4-1310112Socket DN10 with 3/8" BSP female, seal NBR, with a valve-350In stock0 €
Enquiry
DP-PLT4-1313112Socket DN10 with 1/2" BSP female, seal NBR, with a valve-350In stock0 €
Enquiry
DP-PLT4-1319032Socket DN10 with 3/4"-16 UNF female, seal NBR, with a valve-350In stock0 €
Enquiry
DP-PLT4-2013112Socket DN12 with 1/2" BSP female, seal NBR, with a valve-350In stock0 €
Enquiry
DP-PLT4-2019112Socket DN12 with 3/4" BSP female, seal NBR, with a valve-350In stock0 €
Enquiry
DP-PLT4-2023032Socket DN12 with 7/8"-14 UNF female, seal NBR, with a valve-350In stock0 €
Enquiry
DP-PLT4-2027032Socket DN12 with 1.1/16"-12 UNF female, seal NBR, with a valve-350In stock0 €
Enquiry
DP-PLT4-2219112Socket DN16 with 3/4" BSP female, seal NBR, with a valve-350In stock0 €
Enquiry
DP-PLT4-2219112-VSocket DN16 with 3/4" BSP female, seal Viton, with a valve-350In stock0 €
Enquiry
DP-PLT4-2519112Socket DN19 with 3/4" BSP female, seal NBR, with a valve-350In stock0 €
Enquiry
DP-PLT4-2525112Socket DN19 with 1" BSP female, seal NBR, with a valve-350In stock0 €
Enquiry
DP-PLT4-2527032Socket DN19 with 1.1/16"-16 UNF female, seal NBR, with a valve-350In stock0 €
Enquiry
DP-PLT4-2533032Socket DN19 with 1.5/16"-12 UNF female, seal NBR, with a valve-350In stock0 €
Enquiry
DP-PLT4-3025112Socket DN25 with 1" BSP female, seal NBR, with a valve-350In stock0 €
Enquiry
DP-PLT4-3025112-VSocket DN25 with 1" BSP female, seal Viton, with a valve-350In stock0 €
Enquiry
DP-PLT4-3031112Socket DN25 with 1.1/4" BSP female, seal NBR, with a valve-350In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Leak-free socket quick coupling type “flat-face” intended mainly for machine construction, in which available large strokes pressure. has stem securing against accidental disconnection. quick coupling can be operated one hand. depending on use should select appropriate Material seal. interchangeable with quick coupling ISO-F other manufacturers. standard: ISO 16028 (besides size DN5). Application: hydraulics power (oil hydraulic), industrial. Working pressure: up to 500 bar. Material: steel with coating zinc – nickel. sealing: NBR (od -25°C up to +100°C), Viton (od -15°C up to +200°C).

Additional information

Material

CS – steel (cast iron)
