Is the DKL 45° Hydraulic Fitting, Type ZMW311, Light Series, Carbon Steel compatible with standard metric internal-thread hydraulic ports and nuts?

DKL 45° Hydraulic Fitting, Type ZMW311, Light Series, Carbon Steel Format — Yes. The description states the fitting features an internal metric thread with nut and a precise metal-to-metal seal and uses the universal 24°/60° cone (DKL), which is compatible with standard metric internal-thread hydraulic ports and nuts that conform to DKL (24°/60°) specifications. Ensure the port/nut matches the same metric thread size, cone standard (24°/60°), and pressure/hose crimping requirements; when those align, the fitting will provide a secure, leak-free connection.

Can the DKL 45° Hydraulic Fitting, Type ZMW311, Light Series, Carbon Steel be crimped reliably with sleeves specified for different hose materials and sizes?

Yes — the DKL 45° Hydraulic Fitting, Type ZMW311, Light Series, Carbon Steel can be crimped reliably, provided the sleeve used matches the specific hose type and size. The fitting is expressly optimized for crimping with the appropriate sleeve: its precise geometry, metal-to-metal 24°/60° cone seal and lightweight 45° tail are designed to form a secure, durable connection when a correctly sized sleeve for the hose material is used. Using sleeves intended for different hose constructions or incorrect diameters risks poor crimp compression, compromised sealing, leaks or premature failure. Always follow the hose and sleeve manufacturer’s specifications and crimping tool settings to ensure a proper, long-lasting crimp.

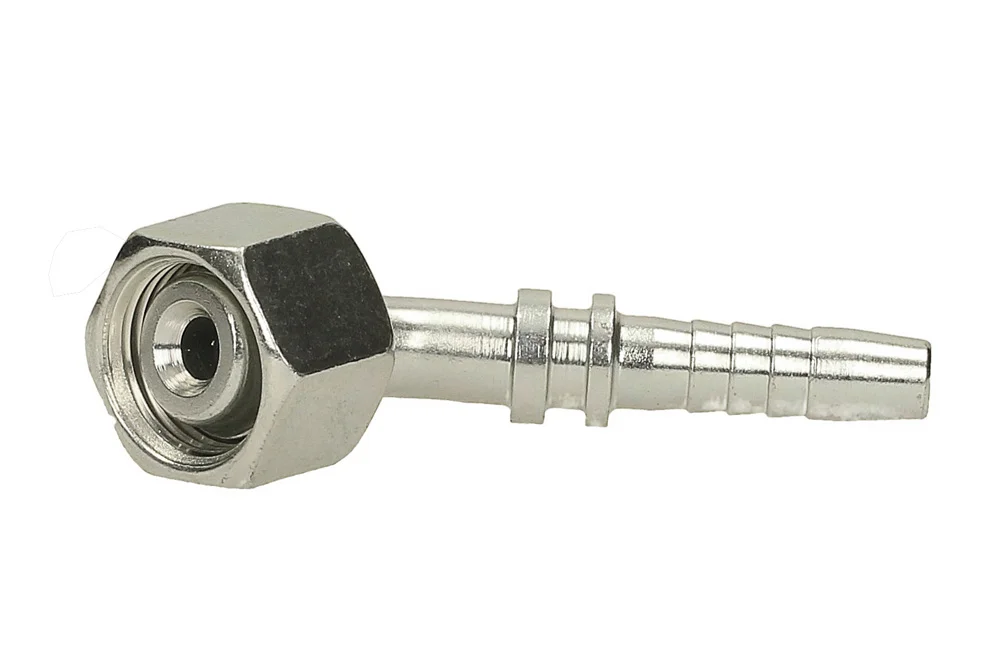

DKL 45° Hydraulic Fitting, Type ZMW311, Light Series, Carbon Steel

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

This standard hydraulic end fitting, type Z with a classic hydraulic tail for hose connection, is engineered for reliable performance in demanding hydraulic and industrial applications. Featuring an internal metric thread with nut and a precise metal-to-metal seal, it ensures secure and leak-free connections. The universal 24°/60° cone (DKL) combined with a 45° angled lightweight series design provides versatility and ease of installation, even in confined spaces. Optimized for crimping with the appropriate sleeve matched to the hose type, it guarantees durability and long-lasting efficiency. Manufactured from high-quality carbon steel and finished with galvanization, the fitting offers excellent resistance to wear and corrosion, extending service life and reducing maintenance needs. Its robust construction and precise geometry make it a dependable choice for professionals seeking a cost-effective yet high-performance solution for hydraulic systems.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZMW311-12-04	End. 45° G1/2 M12x1.5, hose 1/4", 24/60°, light	6	-	In stock	Enquiry
TI-ZMW311-14-04	End. 45° G thread M14x1.5, hose 1/4", 24/60°, lightweight	6	-	In stock	Enquiry
TI-ZMW311-16-05	End. 45° G-thread M16x1.5, hose 5/16", 24/60°, light	8	-	In stock	Enquiry
TI-ZMW311-16-06	End. 45° G1/2 M16x1.5, hose 3/8", 24/60°, lightweight	10	-	In stock	Enquiry
TI-ZMW311-18-05	End fitting 45° G1/2 M18x1.5, hose 5/16", 24/60°, lightweight	8	-	In stock	Enquiry
TI-ZMW311-18-06	End. 45° female thread M18x1.5, hose 3/8", 24/60°, lightweight	10	-	In stock	Enquiry
TI-ZMW311-22-06	End. 45° G1/2 M22x1.5, hose 3/8", 24/60°, light	10	-	In stock	Enquiry
TI-ZMW311-22-08	End. 45° G1/2" M22x1.5, hose 1/2", 24/60°, light	12	-	In stock	Enquiry
TI-ZMW311-26-10	End. 45° G thread M26x1.5, hose 5/8", 24/60°, light	16	-	In stock	Enquiry
TI-ZMW311-27-10	End. 45° G-thread M27x2, hose 5/8", 24/60°, lightweight	16	-	In stock	Enquiry
TI-ZMW311-30-12	End. 45° G thread M30x2, hose 3/4", 24/60°, light	20	-	In stock	Enquiry
TI-ZMW311-36-16	End. 45° GW M36x2, hose 1", 24/60°, light	25	-	In stock	Enquiry
TI-ZMW311-45-20	End fitting 45° G1/2 M45x2, hose 1.1/4", 24/60°, lightweight	32	-	In stock	Enquiry
TI-ZMW311-52-24	End fitting 45° G1/2" M52x2, hose 1.1/2", 24/60°, lightweight	38	-	In stock	Enquiry
