Does the SAE 3000 45° Flange End, Type ZSK311, Light Series, Carbon Steel require specific hose inner diameters or adapters for optimal sealing with different crimping sleeves?

SAE 3000 45° Flange End, Type ZSK311, Light Series, Carbon Steel does require matching hose inner diameters and appropriate crimping sleeves/adapters for optimal sealing. Because it is engineered for secure clamping with a crimping sleeve tailored to the specific hose type, you must: - Use a crimping sleeve sized for the hose inner diameter (ID) that corresponds to the flange tail ID to ensure full contact and proper swage profile. - Select adapters or insert fittings when connecting hoses with differing IDs or construction (e.g., thermoplastic vs. rubber) to maintain correct sealing geometry and prevent extrusion or gaps. - Follow manufacturer crimp specifications (sleeve length, crimp diameter, and die profile) for the hose construction to achieve the specified crimp strength and leak-free performance. - Ensure material compatibility and surface finish (galvanized carbon steel flange vs. hose reinforcement) and confirm torque/assembly procedures if a two-piece adapter or backup ferrule is used. In short, match hose ID and use the correct crimping sleeve/adapter per hose maker and crimper guidelines to achieve durable, leak-free seals with the SAE 3000 45° Flange End, Type ZSK311, Light Series, Carbon Steel.

SAE 3000 45° Flange End, Type ZSK311, Light Series, Carbon Steel

Q: Is the SAE 3000 45° Flange End, Type ZSK311, Light Series, Carbon Steel compatible with standard SAE 3000 hoses and crimping sleeves?

Yes — the SAE 3000 45° Flange End, Type ZSK311, Light Series, Carbon Steel is compatible with standard SAE 3000 hoses and crimping sleeves when the proper crimping sleeve matched to the specific hose type is used. The product is engineered for secure clamping with a crimping sleeve tailored to the hose, providing durable, leak-free performance under demanding conditions. Ensure you select the correct sleeve size and crimp specifications for your exact SAE 3000 hose construction to achieve proper crimp profile and reliable sealing.

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

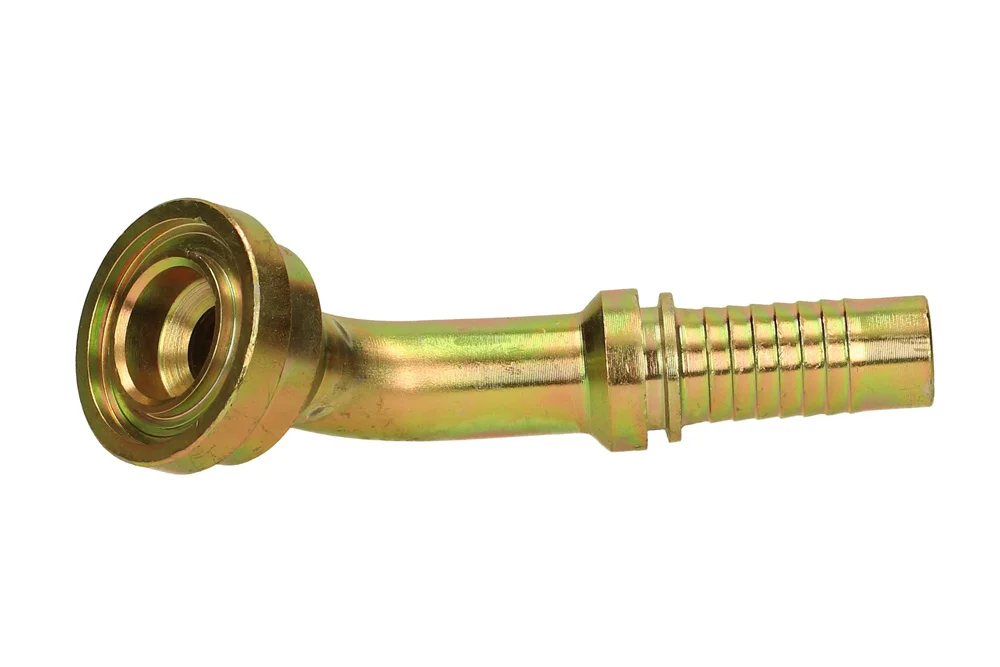

The SAE 3000 flange end (SFL) with a 45° angled design in a lightweight series offers a reliable and efficient solution for hydraulic and industrial hose connections. Engineered for secure clamping with a crimping sleeve tailored to the specific hose type, it ensures durability and leak-free performance even under demanding operating conditions. Manufactured from high-quality carbon steel and finished with a protective galvanization layer, the flange provides excellent resistance to corrosion and wear, extending service life and reducing maintenance costs. Its lightweight construction simplifies installation while maintaining robust strength, making it an ideal choice for applications where efficiency, safety, and long-term reliability are essential. This component is designed to meet the needs of modern hydraulic systems, supporting optimal performance and ensuring consistent operational stability across a wide range of industries.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZSK311-08-08	End fitting 45° SAE 1/2", hose 1/2", lightweight	12	-	In stock	Enquiry
TI-ZSK311-08-10	End fitting 45° SAE 1/2", hose 5/8", lightweight	16	-	In stock	Enquiry
TI-ZSK311-10-08K	End fitting 45° SAE 5/8", hose 1/2", lightweight, KOMATSU	12	-	In stock	Enquiry
TI-ZSK311-10-10K	End fitting 45° SAE 5/8", hose 5/8", lightweight, KOMATSU	16	-	In stock	Enquiry
TI-ZSK311-12-08	End fitting 45° SAE 3/4", hose 1/2", lightweight	12	-	In stock	Enquiry
TI-ZSK311-12-10	End fitting 45° SAE 3/4", hose 5/8", lightweight	16	-	In stock	Enquiry
TI-ZSK311-12-12	End fitting 45° SAE 3/4", hose 3/4", lightweight	20	-	In stock	Enquiry
TI-ZSK311-16-12	End fitting 45° SAE 1", hose 3/4", lightweight	20	-	In stock	Enquiry
TI-ZSK311-16-16	End fitting 45° SAE 1", hose 1", lightweight	25	-	In stock	Enquiry
TI-ZSK311-20-16	End fitting 45° SAE 1.1/4", hose 1", lightweight	25	-	In stock	Enquiry
TI-ZSK311-20-20	End fitting 45° SAE 1.1/4", hose 1.1/4", lightweight	32	-	In stock	Enquiry
TI-ZSK311-24-20	End fitting 45° SAE 1.1/2", hose 1.1/4", lightweight	32	-	In stock	Enquiry
TI-ZSK311-24-24	End fitting 45° SAE 1.1/2", hose 1.1/2", lightweight	38	-	In stock	Enquiry
TI-ZSK311-32-24	End fitting 45° SAE 2", hose 1.1/2", lightweight	38	-	In stock	Enquiry
TI-ZSK311-32-32	End fitting 45° SAE 2", hose 2", lightweight	50	-	In stock	Enquiry
TI-ZSK311-40-32	End fitting 45° SAE 2.1/2", hose 2", lightweight	50	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The SAE 3000 flange end (SFL) with a 45° angled design in a lightweight series offers a reliable and efficient solution for hydraulic and industrial hose connections. Engineered for secure clamping with a crimping sleeve tailored to the specific hose type, it ensures durability and leak-free performance even under demanding operating conditions. Manufactured from high-quality carbon steel and finished with a protective galvanization layer, the flange provides excellent resistance to corrosion and wear, extending service life and reducing maintenance costs. Its lightweight construction simplifies installation while maintaining robust strength, making it an ideal choice for applications where efficiency, safety, and long-term reliability are essential. This component is designed to meet the needs of modern hydraulic systems, supporting optimal performance and ensuring consistent operational stability across a wide range of industries.
