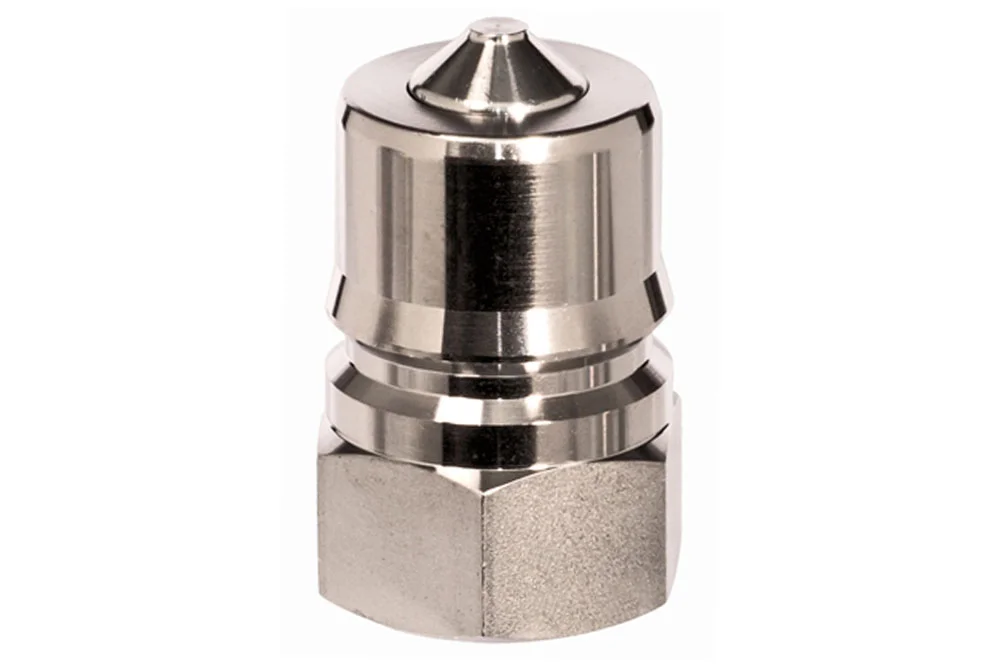

Plug quick coupling with a female BSP threadT with valve, NITTO KOHKI SP CUPLA type A, steel carbon

Additional information

Material

CS – steel (cast iron)

Plug with a shut-off valve Nitto Kohki series SP CUPLA type A with thread internal BSPT o excellent durability, intended for water, oils hydraulic, steam, chemicals, air and gases. Material: steel chrome-plated. Working pressure: 75 bar (1/8″, 1/4″, 3/8″), 45 bar (1/2″, 3/4″, 1″), 30 bar (1.1/4″, 1.1/2″), 20 bar (2″). Operating temperature: od -20°C up to +80°C (NBR).

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
NK-10P-A-SQuick coupling plug SP-A CUPLA, 1.1/4" BSPT female, nickel-plated steel-30In stock0 €
Enquiry
NK-12P-A-SQuick coupling plug SP-A CUPLA, 1.1/2" BSPT female, nickel-plated steel-30In stock0 €
Enquiry
NK-16P-A-SQuick coupling plug SP-A CUPLA, 2" BSPT female, nickel-plated steel-20In stock0 €
Enquiry
NK-2P-A-SQuick coupling plug SP-A CUPLA, 1/4" BSPT female, nickel-plated steel-75In stock0 €
Enquiry
NK-3P-A-SQuick coupling plug SP-A CUPLA, 3/8" BSPT female, nickel-plated steel-75In stock0 €
Enquiry
NK-4P-A-SQuick coupling plug SP-A CUPLA, 1/2" BSPT female, nickel-plated steel-45In stock0 €
Enquiry
NK-6P-A-SQuick coupling plug SP-A CUPLA, 3/4" BSPT female, nickel-plated steel-45In stock0 €
Enquiry
NK-8P-A-SQuick coupling plug SP-A CUPLA, 1" BSPT female, nickel-plated steel-45In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Plug with a shut-off valve Nitto Kohki series SP CUPLA type A with thread internal BSPT o excellent durability, intended for water, oils hydraulic, steam, chemicals, air and gases. Material: steel chrome-plated. Working pressure: 75 bar (1/8″, 1/4″, 3/8″), 45 bar (1/2″, 3/4″, 1″), 30 bar (1.1/4″, 1.1/2″), 20 bar (2″). Operating temperature: od -20°C up to +80°C (NBR).
