Can NON SKIVE DKJ Straight End, Carbon Steel, Type NJW110 be used without skiving on hoses 4SP, 4SH, R13, and R15 when crimped with TI-N… sleeves?

Yes. NON SKIVE DKJ Straight End, Carbon Steel, Type NJW110 can be used without skiving on hoses 4SP, 4SH, R13, and R15 when crimped with TI-N… sleeves. The fitting’s NON SKIVE design permits installation without removing the hose’s rubber cover, and when combined with the TI-N… crimping sleeve provides a secure, leak-free, and durable connection. Manufactured from carbon steel with a protective zinc finish and featuring a 74° cone UNF sealing geometry, it ensures reliable pressure resistance, corrosion protection, and long service life in demanding hydraulic applications.

Can NON SKIVE DKJ Straight End, Carbon Steel, Type NJW110 maintain leak-free performance on 4SP, 4SH, R13, and R15 hoses when crimped with TI-N… sleeves without skiving?

Yes. NON SKIVE DKJ Straight End, Carbon Steel, Type NJW110 Format can maintain leak-free performance on 4SP, 4SH, R13, and R15 hoses when crimped with TI-N… sleeves without skiving. The fitting is specifically engineered for those hose types and for use with the TI-N… crimping sleeve; its NON SKIVE design lets you install without removing the hose rubber layer while preserving a secure 74° cone (DKJ) seal. Made from high-quality carbon steel with a protective zinc coating and precise geometry, it provides durable corrosion resistance, optimal sealing, and the pressure capacity required for demanding hydraulic applications—ensuring safe, reliable, and leak-free operation when properly assembled.

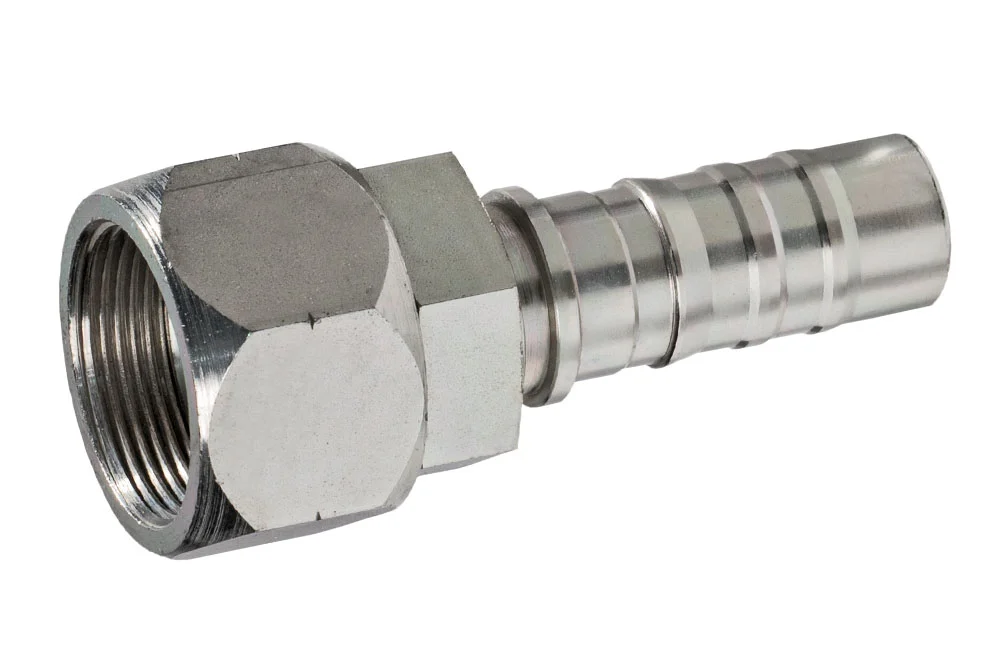

NON SKIVE DKJ Straight End, Carbon Steel, Type NJW110

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

The Straight NON SKIVE fitting with internal UNF thread and 74° cone (DKJ) sealing is designed for reliable performance in demanding hydraulic applications. Engineered for use with hoses type 4SP, 4SH, R13, and R15, it ensures a secure and durable connection when combined with the TI-N… crimping sleeve. The NON SKIVE technology allows installation without removing the rubber layer of the hose, significantly reducing assembly time while maintaining maximum safety and leak-free operation. Manufactured from high-quality carbon steel and finished with a protective zinc coating, the fitting offers excellent resistance to corrosion and wear, extending service life even in harsh working environments. Its precise geometry guarantees optimal sealing and pressure resistance, making it an ideal choice for industries where efficiency, reliability, and durability are essential. This solution provides a cost-effective and professional option for building robust hydraulic systems that meet the highest technical standards.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-NJW110-17-12	End. JIC NON SKIVE GW 1.1/16", hose 3/4"	20	-	In stock	Enquiry
TI-NJW110-21-12	End. JIC NON SKIVE GW 1.5/16", hose 3/4"	20	-	In stock	Enquiry
TI-NJW110-21-16	End. JIC NON SKIVE GW 1.5/16", hose 1"	25	-	In stock	Enquiry
TI-NJW110-26-16	End. JIC NON SKIVE GW 1.5/8", hose 1"	25	-	In stock	Enquiry
TI-NJW110-26-20	End. JIC NON SKIVE GW 1.5/8", hose 1.1/4"	32	-	In stock	Enquiry
TI-NJW110-30-24	End. JIC NON SKIVE GW 1.7/8", hose 1.1/2"	38	-	In stock	Enquiry
TI-NJW110-40-32	End. JIC NON SKIVE GW 2.1/2", hose 2"	50	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The Straight NON SKIVE fitting with internal UNF thread and 74° cone (DKJ) sealing is designed for reliable performance in demanding hydraulic applications. Engineered for use with hoses type 4SP, 4SH, R13, and R15, it ensures a secure and durable connection when combined with the TI-N… crimping sleeve. The NON SKIVE technology allows installation without removing the rubber layer of the hose, significantly reducing assembly time while maintaining maximum safety and leak-free operation. Manufactured from high-quality carbon steel and finished with a protective zinc coating, the fitting offers excellent resistance to corrosion and wear, extending service life even in harsh working environments. Its precise geometry guarantees optimal sealing and pressure resistance, making it an ideal choice for industries where efficiency, reliability, and durability are essential. This solution provides a cost-effective and professional option for building robust hydraulic systems that meet the highest technical standards.
