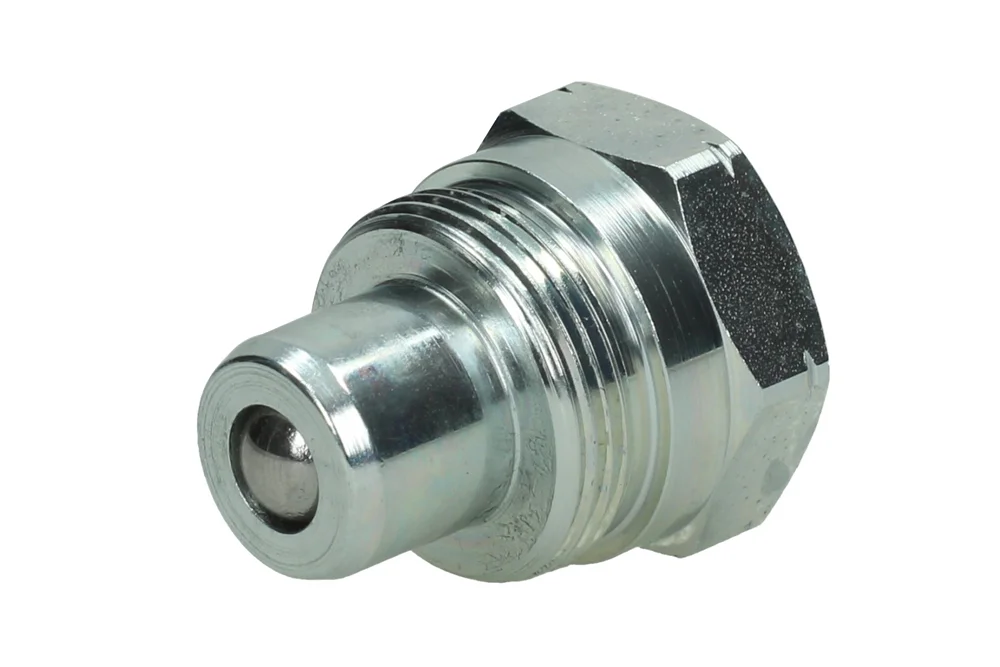

Plug screw-together quick coupling with a female NPT thread with valve, steel carbon, type PVS

Additional information

Material

CS – steel (cast iron)

Plug screw-together PVS quick coupling hydraulic intended for installation o very high pressures, in which available large loads mechanical. used in presses hydraulic, equipment rescue, jacks hydraulic, cutters, etc. can be joined / disconnected when in system found pressure residual. caps should order separately. Material: steel carbon. sealing: NBR. Flow rate: 1/4″ – 16.4 l/min; (Δp = 4 bar), 3/8″ – 21.3 l/min; (Δp=4 bar). Working pressure: 700 bar. pressure bursting: 1/4″ – 2100 bar (coupling connected), 3/8″ – 1850 bar (coupling connected), 1/4″ – 1490 bar (plug disconnected), 3/8″ – 1500 bar (plug disconnected). Operating temperature: od -25°C up to +100°C.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
DP-PVS1-0606013Plug screw-together 1/4" with 1/4" NPT female, seal NBR, with a valve-700In stock0 €
Enquiry
DP-PVS1-1010013Plug screw-together 3/8" with 3/8" NPT female, seal NBR, with a valve-700In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Plug screw-together PVS quick coupling hydraulic intended for installation o very high pressures, in which available large loads mechanical. used in presses hydraulic, equipment rescue, jacks hydraulic, cutters, etc. can be joined / disconnected when in system found pressure residual. caps should order separately. Material: steel carbon. sealing: NBR. Flow rate: 1/4″ – 16.4 l/min; (Δp = 4 bar), 3/8″ – 21.3 l/min; (Δp=4 bar). Working pressure: 700 bar. pressure bursting: 1/4″ – 2100 bar (coupling connected), 3/8″ – 1850 bar (coupling connected), 1/4″ – 1490 bar (plug disconnected), 3/8″ – 1500 bar (plug disconnected). Operating temperature: od -25°C up to +100°C.

Additional information

Material

CS – steel (cast iron)
