Is the Spigot Carbon Steel Type S compatible with textile-reinforced plastic hoses with external steel braid for low-pressure sanitary and fuel applications?

Yes. The Spigot, Carbon Steel, Type S is compatible with textile-reinforced plastic hoses that have an external steel braid for low-pressure sanitary and fuel applications. Designed to DIN 7608 with a 60° spherical sealing cone, it is engineered specifically for rubber hoses as well as non-reinforced and textile-reinforced plastic hoses with external steel braid, providing secure, durable connections suited to sanitary installations, fuel distribution systems and other low-pressure technical uses. When used with the UM nut (EC-105…), it ensures optimal performance and easy assembly. Manufactured from high-quality carbon steel with a galvanized finish, it also offers improved corrosion resistance and long-term durability.

Can Spigot Carbon Steel Type S fittings be used with rubber and non-reinforced plastic hoses in compressed air and other low-pressure technical applications?

Yes. Spigot Carbon Steel Type S fittings are suitable for use with rubber hoses and non-reinforced plastic hoses in compressed air and other low-pressure technical applications. Designed to DIN 7608 with a 60° spherical sealing cone, they provide secure, durable connections for flexible hose assemblies. The fittings are engineered for rubber hoses, non-reinforced plastic hoses, and textile-reinforced plastic hoses with an external steel braid, making them appropriate for sanitary installations, fuel distribution systems, compressed air lines, and similar low-pressure uses. When paired with the UM nut (EC-105…), they ensure optimal performance and straightforward assembly. Made from high-quality carbon steel with a galvanized finish, Spigot Carbon Steel Type S Format fittings offer improved corrosion resistance and long-term durability, delivering a reliable and cost-effective solution for demanding environments.

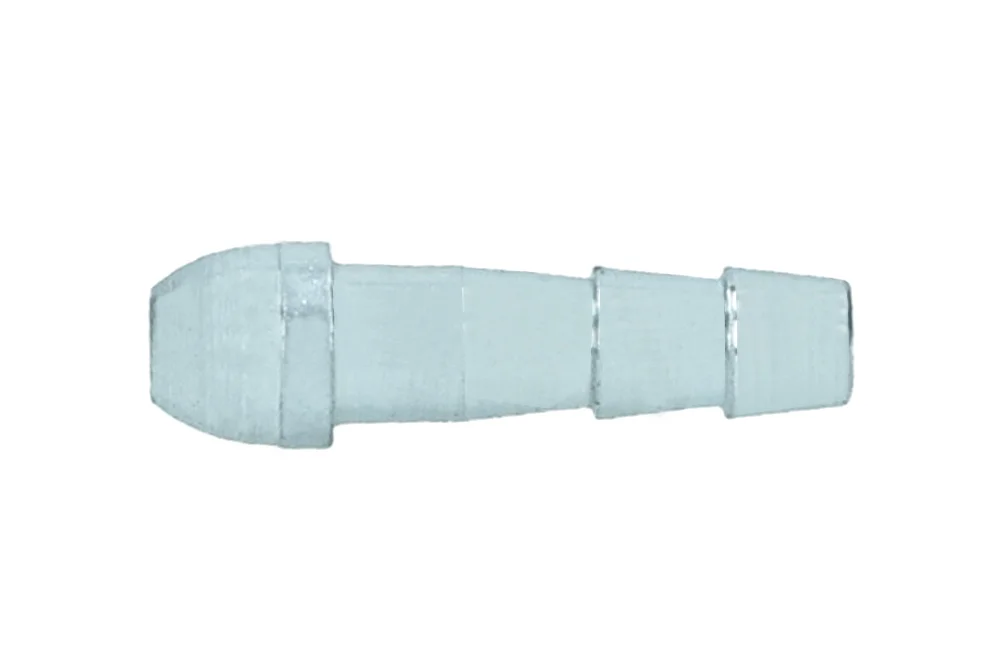

Spigot, steel carbon, type S

All products, Low-pressure fittings and adapters/

Additional information

Material	CS – steel (cast iron)

A fitting type S of a cone sealing 60°, ball, close for DIN 7608, Intended for hoses low-pressure rubber and plastic unreinforced and of reinforcement textile, with external a braid steel. used commonly in flexible lines for fittings sanitary, installation fuel, air etc. use a nut type UM (EC- 105…). Material: steel carbon, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EC-105050	Spigot S 5 (hose 4.5 mm)	5	30	In stock	Enquiry
EC-105060	Spigot S 6 (hose 5.5 mm)	6	30	In stock	Enquiry
EC-105068	Spigot S 6/8 (hose 5.5 mm)	6	30	In stock	Enquiry
EC-105069	Spigot S 6/10 (hose 5.5 mm)	6	30	In stock	Enquiry
EC-105080	Spigot S 8 (hose 7.5 mm)	8	30	In stock	Enquiry
EC-105081	Spigot S 8/10 (hose 7.5 mm)	8	30	In stock	Enquiry
EC-105100	Spigot S 10 (hose 9 mm)	10	30	In stock	Enquiry
EC-105102	Spigot S 10/12 (hose 9 mm)	10	30	In stock	Enquiry
EC-105112	Spigot S 12 (hose 11.5 mm)	12	30	In stock	Enquiry
EC-105113	Spigot S 12 1/2" (hose 11.5 mm)	12	30	In stock	Enquiry
EC-105114	Spigot S 12/15 (hose 11.5 mm)	12	30	In stock	Enquiry
EC-105150	Spigot S 15/22 (hose 14.5 mm)	16	30	In stock	Enquiry
EC-105151	Spigot S 15 1/2" (hose 14.5 mm)	16	30	In stock	Enquiry
EC-105156	Spigot S 15/26 (hose 14.5 mm)	16	30	In stock	Enquiry
EC-105186	Spigot S 18/26 (hose 17 mm)	18	30	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

A fitting type S of a cone sealing 60°, ball, close for DIN 7608, Intended for hoses low-pressure rubber and plastic unreinforced and of reinforcement textile, with external a braid steel. used commonly in flexible lines for fittings sanitary, installation fuel, air etc. use a nut type UM (EC- 105…). Material: steel carbon, galvanized.
