Can NON SKIVE AGO Straight End, Carbon Steel, Type NOZ110 be used with 4SP/4SH/R13/R15 hoses without skiving and still ensure a reliable seal with TI-N crimping sleeve?

Yes. NON SKIVE AGO Straight End, Carbon Steel, Type NOZ110 is specifically designed for use with 4SP, 4SH, R13 and R15 hoses without skiving. When assembled with the matching TI-N crimping sleeve, the NON SKIVE technology eliminates the need to remove the hose’s rubber cover while still providing a precise, durable seal. The product’s design and material—high‑quality carbon steel with a galvanized finish—ensure reliable mechanical strength, corrosion resistance and long service life under high pressure. Proper crimping with the correct TI-N sleeve and recommended crimping parameters is essential to achieve the intended sealing and safety performance.

Can NON SKIVE AGO Straight End, Carbon Steel, Type NOZ110 maintain pressure ratings and leak-free performance with 4SP/4SH/R13/R15 hoses when crimped using the TI-N sleeve without skiving?

Yes. The NON SKIVE AGO Straight End, Carbon Steel, Type NOZ110 can maintain rated pressure and deliver leak-free performance with 4SP/4SH/R13/R15 hoses when properly crimped using the TI-N sleeve without skiving. The fitting is specifically engineered for non-skive assemblies: its design and mating geometry ensure reliable sealing and mechanical retention without removing the hose’s rubber cover. Manufactured from high-quality carbon steel with a galvanized finish, NOZ110 provides the strength, corrosion resistance, and wear resistance required for high-pressure hydraulic service. When assembled to manufacturer crimp specifications (correct sleeve, crimping machine settings, and inspection), the NON SKIVE technology simplifies installation while preserving pressure ratings and leak-tight integrity, making it suitable for demanding applications in construction, agriculture, mining, and heavy machinery.

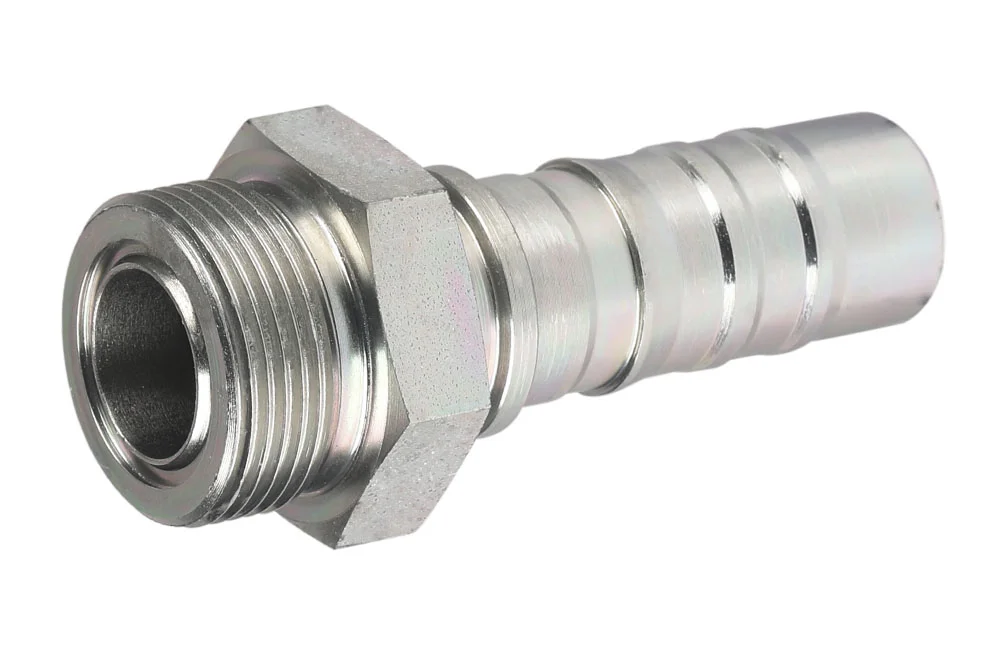

NON SKIVE AGO Straight End, Carbon Steel, Type NOZ110

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

The straight NON SKIVE end fitting with external UNF thread and flat sealing (AGO) is engineered for secure and reliable performance in demanding hydraulic applications. Designed specifically for crimping with hoses of types 4SP, 4SH, R13, and R15, it ensures a precise and durable connection when used together with the TI-N crimping sleeve. Thanks to the NON SKIVE technology, assembly is simplified and faster, as there is no need to remove the rubber layer of the hose, which not only saves time but also reduces the risk of installation errors. Manufactured from high-quality carbon steel with a galvanized finish, the fitting offers excellent resistance to corrosion and mechanical wear, guaranteeing long-lasting durability even under high pressure and intensive operating conditions. Its robust construction and reliable sealing system make it an ideal choice for industries where safety, efficiency, and performance are critical, such as construction, agriculture, mining, and heavy machinery. This fitting combines ease of installation with superior strength, providing a cost-effective and professional solution for modern hydraulic systems.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-NOZ110-19-12	End. ORFS NON SKIVE GZ 1.3/16", hose 3/4"	20	-	In stock	Enquiry
TI-NOZ110-23-16	End. ORFS NON SKIVE GZ 1.7/16", hose 1"	25	-	In stock	Enquiry
TI-NOZ110-27-20	End. ORFS NON SKIVE GZ 1.11/16", hose 1.1/4"	32	-	In stock	Enquiry
TI-NOZ110-32-24	End. ORFS NON SKIVE GZ 2", hose 1.1/2"	38	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The straight NON SKIVE end fitting with external UNF thread and flat sealing (AGO) is engineered for secure and reliable performance in demanding hydraulic applications. Designed specifically for crimping with hoses of types 4SP, 4SH, R13, and R15, it ensures a precise and durable connection when used together with the TI-N crimping sleeve. Thanks to the NON SKIVE technology, assembly is simplified and faster, as there is no need to remove the rubber layer of the hose, which not only saves time but also reduces the risk of installation errors. Manufactured from high-quality carbon steel with a galvanized finish, the fitting offers excellent resistance to corrosion and mechanical wear, guaranteeing long-lasting durability even under high pressure and intensive operating conditions. Its robust construction and reliable sealing system make it an ideal choice for industries where safety, efficiency, and performance are critical, such as construction, agriculture, mining, and heavy machinery. This fitting combines ease of installation with superior strength, providing a cost-effective and professional solution for modern hydraulic systems.
