Is the 90° SAE 3000 / DIN 2353 Flange Connection, Carbon Steel, Type C3 rated for continuous operation at +100°C?

The 90° SAE 3000 / DIN 2353 Flange Connection, Carbon Steel, Type C3 is rated for continuous operation at +100°C. The product description specifies a temperature range from -20°C to +100°C, indicating it is designed to guarantee consistent functionality up to that maximum temperature under normal operating conditions.

Can the 90° SAE 3000 / DIN 2353 Flange Connection, Carbon Steel, Type C3 be used with alternative sealing materials for temperatures below -20°C?

90° SAE 3000 / DIN 2353 Flange Connection, Carbon Steel, Type C3 Format: The standard configuration is supplied with an NBR (nitrile) O‑ring and is specified for operation down to −20°C. NBR hardens and loses elasticity below its lower temperature limit, which increases leak risk. Using alternative sealing materials for temperatures below −20°C is possible, but requires choosing seals with suitable low‑temperature elastomeric properties (e.g., FKM/Viton has limited improvement, often similar or worse at very low temps; FFKM perfluoroelastomers offer better chemical resistance but still have cold‑temperature limits; silicone, EPDM, or specially formulated low‑temperature NBR grades can perform better). PTFE (Teflon) or molded metal‑backed seals are alternatives where elastomer flexibility is unacceptable, though they change sealing behavior and may require design/installation adjustments. Before substitution, verify: - Manufacturer approval or compatibility with the 90° SAE 3000 / DIN 2353 Flange Connection, Carbon Steel, Type C3 Format. - Temperature range and hardness (durometer) of the alternative seal at the lowest operating temperature. - Chemical compatibility with hydraulic fluid. - Fit, groove dimensions, and required preloads for reliable sealing. - Pressure and dynamic/static application (dynamic seals need elastomeric flexibility). Recommendation: Consult the flange/seal manufacturer for approved low‑temperature seal options or use engineered low‑temperature seals (e.g., specially compounded NBR or silicone/FFKM variants) tested and certified for your specific fluid, pressure and temperature conditions prior to field use.

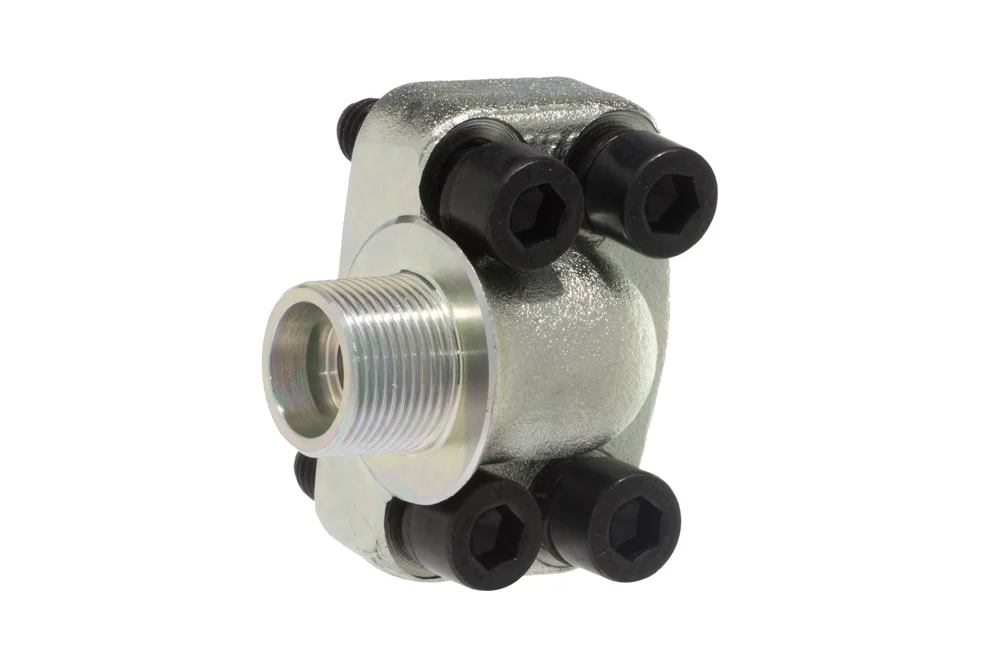

90° SAE 3000 / DIN 2353 Flange Connection, Carbon Steel, Type C3

All products, High-pressure adapters/

Additional information

Material	CS – steel (cast iron)

The 90° SAE 3000 flanged connection with a compact 24° DIN 2353 socket is designed for reliable integration with metric tubing in demanding hydraulic systems. Engineered for durability and precision, it comes complete with mounting screws and an NBR O-ring seal to ensure secure, leak-free performance. Available in both light (L) and heavy (S) series, this versatile component adapts seamlessly to a wide range of applications, offering flexibility and strength where it matters most. Manufactured from high-quality carbon steel with a galvanized finish, it provides excellent resistance to wear and corrosion, extending service life even under intensive operating conditions. With a temperature range from -20°C to +100°C, it guarantees consistent functionality in diverse environments, making it the ideal choice for industries seeking efficiency, safety, and long-term reliability in their hydraulic connections.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HK-C3-M-90-08-12S	90° flange fitting SAE 3000 1/2", tube 12S	-	348	In stock	Enquiry
HK-C3-M-90-08-15L	90° flange fitting SAE 3000 1/2", tube 15L	-	348	In stock	Enquiry
HK-C3-M-90-08-16S	90° flange fitting SAE 3000 1/2", tube 16S	-	348	In stock	Enquiry
HK-C3-M-90-12-16S	90° flange fitting SAE 3000 3/4", tube 16S	-	348	In stock	Enquiry
HK-C3-M-90-12-20S	90° flange fitting SAE 3000 3/4", tube 20S	-	348	In stock	Enquiry
HK-C3-M-90-12-22L	90° flange fitting SAE 3000 3/4", tube 22L	-	348	In stock	Enquiry
HK-C3-M-90-16-20S	90° flange fitting SAE 3000 1", tube 20S	-	348	In stock	Enquiry
HK-C3-M-90-16-25S	90° flange fitting SAE 3000 1", tube 25S	-	348	In stock	Enquiry
HK-C3-M-90-16-28L	90° flange fitting SAE 3000 1", tube 28L	-	348	In stock	Enquiry
HK-C3-M-90-20-25S	90° flange fitting SAE 3000 1.1/4", tube 25S	-	278	In stock	Enquiry
HK-C3-M-90-20-30S	90° flange fitting SAE 3000 1.1/4", tube 30S	-	278	In stock	Enquiry
HK-C3-M-90-20-35L	90° flange fitting SAE 3000 1.1/4", tube 35L	-	278	In stock	Enquiry
HK-C3-M-90-24-35L	90° flange fitting SAE 3000 1.1/2", tube 35L	-	210	In stock	Enquiry
HK-C3-M-90-24-38S	90° flange fitting SAE 3000 1.1/2", tube 38S	-	210	In stock	Enquiry
HK-C3-M-90-24-42L	90° flange fitting SAE 3000 1.1/2", tube 42L	-	210	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The 90° SAE 3000 flanged connection with a compact 24° DIN 2353 socket is designed for reliable integration with metric tubing in demanding hydraulic systems. Engineered for durability and precision, it comes complete with mounting screws and an NBR O-ring seal to ensure secure, leak-free performance. Available in both light (L) and heavy (S) series, this versatile component adapts seamlessly to a wide range of applications, offering flexibility and strength where it matters most. Manufactured from high-quality carbon steel with a galvanized finish, it provides excellent resistance to wear and corrosion, extending service life even under intensive operating conditions. With a temperature range from -20°C to +100°C, it guarantees consistent functionality in diverse environments, making it the ideal choice for industries seeking efficiency, safety, and long-term reliability in their hydraulic connections.
