Is the Carbon Steel NPT Male Threaded End, Type CNP compatible with both rubber and plastic industrial hoses and which clamping methods are recommended?

Yes. The Carbon Steel NPT Male Threaded End, Type CNP is compatible with both rubber and plastic industrial hoses. Its tail design ensures a secure, reliable connection with either hose material. Recommended clamping methods are straps, hose clamps, or dedicated CNFL clamping sleeves—each provides a stable mounting option that helps ensure a tight seal and dependable long-term performance in industrial environments.

Can the Carbon Steel NPT Male Threaded End, Type CNP withstand corrosive or high-temperature industrial environments and which installation practices extend its lifespan?

Carbon Steel NPT Male Threaded End, Type CNP Format Yes — Carbon Steel NPT Male Threaded End, Type CNP, constructed from galvanized carbon steel, offers strong resistance to wear and corrosion and is suitable for many demanding industrial environments, including moderately corrosive and elevated-temperature conditions. Galvanization provides a protective zinc layer that slows corrosion, and the robust carbon steel body tolerates mechanical stress and heat better than many non-metallic alternatives. However, extreme chemical exposure (strong acids, chlorides, caustics) or very high continuous temperatures beyond the alloy/gavanize limits may eventually degrade the coating or base metal; compatibility should be checked against specific media and temperature ranges. Installation practices that extend lifespan: - Use appropriate clamps, straps or CNFL clamping sleeves to ensure even, secure hose engagement and avoid point loading or movement that causes abrasion. - Ensure threads are properly sealed (compatible thread sealant or tape) and tightened to recommended torque to prevent leaks without overstressing threads. - Match hose material and size to the tail design for a snug fit; avoid undersized/oversized assemblies that create stress concentrations. - Provide strain relief and minimize vibration/transverse movement with supports or flexible loops to reduce fatigue at the fitting. - Avoid exposure to incompatible chemicals or temperatures outside specified limits; consider additional protective coatings or stainless alternatives for aggressive environments. - Inspect periodically for corrosion, loosening, or wear and replace fittings or reapply protection as needed. Following these practices will maximize reliability and service life of the Carbon Steel NPT Male Threaded End, Type CNP.

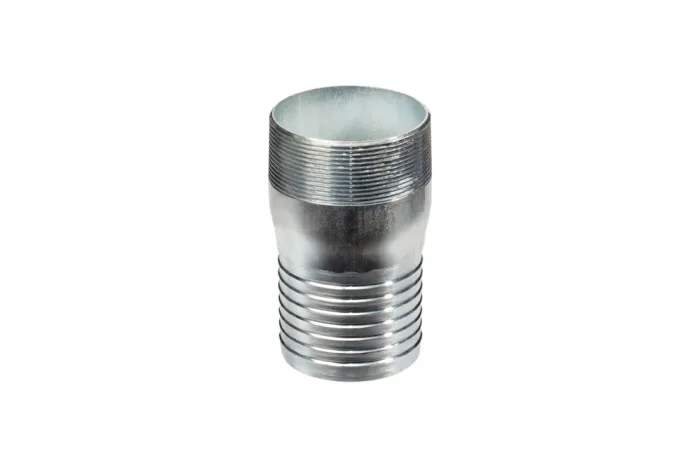

A fitting with thread external NPT, steel carbon, type CNP

All products, Low-pressure fittings and adapters/

Additional information

Material	CS – steel (cast iron)

A fitting type CNP terminated thread external tapered NPT of galvanized steel with “tail” for hose. Intended for hoses rubber and plastic hoses industrial. assembly using bands, straps or special sheet-metal ferrule clamping type CNFL. Material: steel carbon, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
AC-CNPN-050	Fitting CNP with 1/2" NPT male for hose 1/2", galvanized steel	12	10	In stock	Enquiry
AC-CNPN-075	Fitting CNP with 3/4" NPT male for hose 3/4", galvanized steel	20	10	In stock	Enquiry
AC-CNPN-100	Fitting CNP with 1" NPT male for hose 1", galvanized steel	25	10	In stock	Enquiry
AC-CNPN-125	Fitting CNP with 1.1/4" NPT male for hose 1.1/4", galvanized steel	32	10	In stock	Enquiry
AC-CNPN-150	Fitting CNP with 1.1/2" NPT male for hose 1.1/2", galvanized steel	40	10	In stock	Enquiry
AC-CNPN-200	Fitting CNP with 2" NPT male for hose 2", galvanized steel	50	10	In stock	Enquiry
AC-CNPN-250	Fitting CNP with 2.1/2" NPT male for hose 2.1/2", galvanized steel	65	10	In stock	Enquiry
AC-CNPN-300	Fitting CNP with 3" NPT male for hose 3", galvanized steel	75	10	In stock	Enquiry
AC-CNPN-400	Fitting CNP with 4" NPT male for hose 4", galvanized steel	100	10	In stock	Enquiry
AC-CNPN-500	Fitting CNP with 5" NPT male for hose 5", galvanized steel	125	10	In stock	Enquiry
AC-CNPN-600	Fitting CNP with 6" NPT male for hose 6", galvanized steel	150	10	In stock	Enquiry
AC-CNPN-800	Fitting CNP with 8" NPT male for hose 8", galvanized steel	200	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

A fitting type CNP terminated thread external tapered NPT of galvanized steel with “tail” for hose. Intended for hoses rubber and plastic hoses industrial. assembly using bands, straps or special sheet-metal ferrule clamping type CNFL. Material: steel carbon, galvanized.
