Is the WE-MG Adjustable Angle Screw Connector, Carbon Steel, Zn-Ni Finish compatible with ISO-6149 G-sealed ports and 24° DIN 2353 fittings under high-pressure applications?

Yes. The WE-MG Adjustable Angle Screw Connector, Carbon Steel, Zn-Ni Finish is explicitly designed for compatibility with both 24° DIN 2353 fittings and ISO-6149 G-sealed ports. It incorporates a 24° DIN 2353 socket with external metric thread plus an additional external metric thread featuring ISO-6149 G sealing (O-ring + retaining ring), so it will mate correctly with both connection types. For high-pressure applications it is also suitable: the fitting is engineered with a 4:1 safety factor and is offered in L (light) and S (heavy) series to match varying system pressure requirements. Manufactured from carbon steel with a 6–10 µm zinc-nickel finish and proven corrosion resistance (up to 720 hours salt spray), it provides robust mechanical strength and long-term reliability under demanding conditions. Recommendation: choose the appropriate series (S for higher pressures) and verify the specific pressure ratings and thread sizes of your system to ensure full compatibility.

Can the WE-MG Adjustable Angle Screw Connector, Carbon Steel, Zn-Ni Finish be used interchangeably in systems requiring both L (light) and S (heavy) series fittings without performance loss?

Yes — but with conditions. The WE-MG Adjustable Angle Screw Connector, Carbon Steel, Zn-Ni Finish is offered in distinct L (light) and S (heavy) series to match differing system requirements. While both series share the same 24° DIN 2353 socket, external metric threads and ISO-6149 type G sealing, they are engineered for different load and pressure capacities. Because the fitting is built with a 4:1 safety factor and robust materials/coatings, physically interchanging an L and S version may be possible without immediate leakage or failure in some systems. However, substituting a light-series (L) part into an application specified for heavy-series (S) can reduce margin of safety, long-term durability and performance under high-pressure or heavy-duty conditions. Conversely, using an S-series in place of an L-series typically preserves or improves performance but may be unnecessary or incompatible with space/weight constraints. Recommendation: match the series to the system specification (L for light-duty, S for heavy-duty). If interchange is considered, verify system pressure ratings, mechanical loads and dimensional compatibility, and consult supplier or engineering data to avoid performance loss.

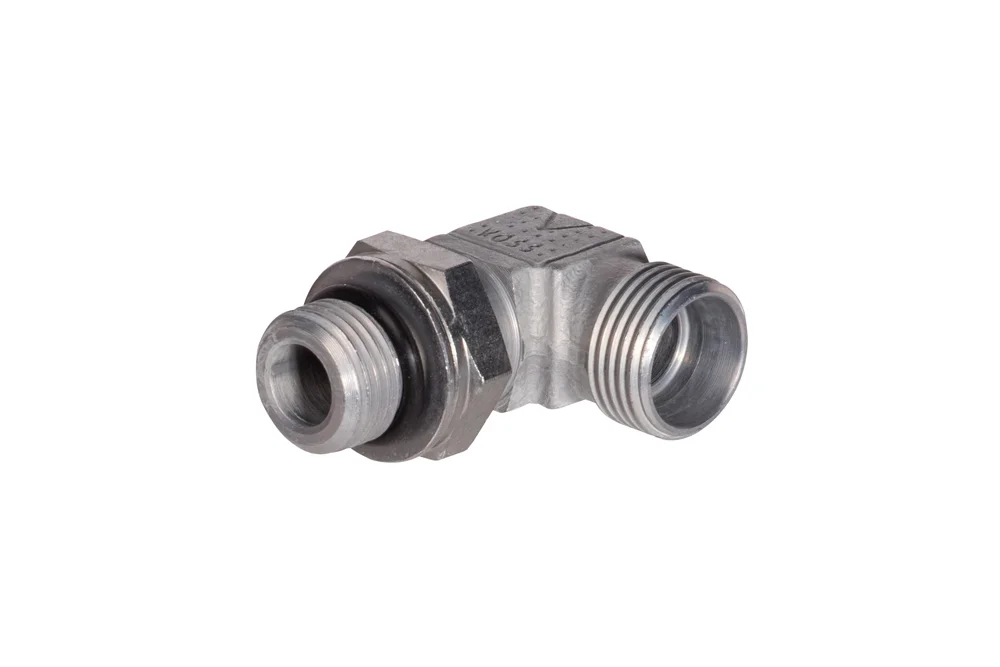

WE-MG Adjustable Angle Screw Connector, Carbon Steel, Zn-Ni Finish

Additional information

Material	CS – steel (cast iron)

The DIN 2353 screw-in angular adjustable fitting type WE-MG is a high-performance connector designed for demanding hydraulic applications, featuring a 24° DIN 2353 socket with external metric thread and an additional external metric thread with ISO-6149 type G sealing, secured by an O-ring and retaining ring. Engineered with a safety factor of 4:1, it ensures maximum reliability and operational safety even under high pressure. Available in both L (light series) and S (heavy series), the fitting offers versatile solutions tailored to different system requirements. Manufactured from robust carbon steel and finished with a premium zinc-nickel coating of 6–10 µm, it delivers exceptional durability and superior corrosion resistance, proven to withstand up to 720 hours in salt spray testing without visible corrosion. This advanced surface protection significantly extends service life, reduces maintenance costs, and guarantees consistent performance in harsh environments, making it an ideal choice for industries where reliability, safety, and long-term efficiency are essential.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HD-WE-06L-MG-10-CN	DIN 2353 fitting WE 6L M10x1, Zn-Ni	-	315	In stock	Enquiry
HD-WE-06S-MG-12-CN	DIN 2353 fitting WE 6S M12x1.5, Zn-Ni	-	400	In stock	Enquiry
HD-WE-08L-MG-12-CN	DIN 2353 fitting WE 8L M12x1.5, Zn-Ni	-	315	In stock	Enquiry
HD-WE-08S-MG-14-CN	DIN 2353 fitting WE 8S M14x1.5, Zn-Ni	-	400	In stock	Enquiry
HD-WE-10L-MG-14-CN	DIN 2353 fitting WE 10L M14x1.5, Zn-Ni	-	315	In stock	Enquiry
HD-WE-10S-MG-16-CN	DIN 2353 fitting WE 10S M16x1.5, Zn-Ni	-	400	In stock	Enquiry
HD-WE-12L-MG-16-CN	DIN 2353 fitting WE 12L M16x1.5, Zn-Ni	-	315	In stock	Enquiry
HD-WE-12S-MG-18-CN	DIN 2353 fitting WE 12S M18x1.5, Zn-Ni	-	400	In stock	Enquiry
HD-WE-15L-MG-18-CN	DIN 2353 fitting WE 15L M18x1.5, Zn-Ni	-	315	In stock	Enquiry
HD-WE-16S-MG-22-CN	DIN 2353 fitting WE 16S M22x1.5, Zn-Ni	-	400	In stock	Enquiry
HD-WE-18L-MG-22-CN	DIN 2353 fitting WE 18L M22x1.5, Zn-Ni	-	315	In stock	Enquiry
HD-WE-20S-MG-27-CN	DIN 2353 fitting WE 20S M27x2, Zn-Ni	-	400	In stock	Enquiry
HD-WE-22L-MG-27-CN	DIN 2353 fitting WE 22L M27x2, Zn-Ni	-	160	In stock	Enquiry
HD-WE-25S-MG-33-CN	DIN 2353 fitting WE 25S M33x2, Zn-Ni	-	315	In stock	Enquiry
HD-WE-28L-MG-33-CN	DIN 2353 fitting WE 28L M33x2, Zn-Ni	-	160	In stock	Enquiry
HD-WE-30S-MG-42-CN	DIN 2353 fitting WE 30S M42x2, Zn-Ni	-	250	In stock	Enquiry
HD-WE-35L-MG-42-CN	DIN 2353 fitting WE 35L M42x2, Zn-Ni	-	160	In stock	Enquiry
HD-WE-38S-MG-48-CN	DIN 2353 fitting WE 38S M48x2, Zn-Ni	-	250	In stock	Enquiry
HD-WE-42L-MG-48-CN	DIN 2353 fitting WE 42L M48x2, Zn-Ni	-	160	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The DIN 2353 screw-in angular adjustable fitting type WE-MG is a high-performance connector designed for demanding hydraulic applications, featuring a 24° DIN 2353 socket with external metric thread and an additional external metric thread with ISO-6149 type G sealing, secured by an O-ring and retaining ring. Engineered with a safety factor of 4:1, it ensures maximum reliability and operational safety even under high pressure. Available in both L (light series) and S (heavy series), the fitting offers versatile solutions tailored to different system requirements. Manufactured from robust carbon steel and finished with a premium zinc-nickel coating of 6–10 µm, it delivers exceptional durability and superior corrosion resistance, proven to withstand up to 720 hours in salt spray testing without visible corrosion. This advanced surface protection significantly extends service life, reduces maintenance costs, and guarantees consistent performance in harsh environments, making it an ideal choice for industries where reliability, safety, and long-term efficiency are essential.
