Is the DKR 90° Hydraulic Fitting ZBW210, Carbon Steel, Zinc-Nickel compatible with standard crimping sleeves for hydraulic and industrial hoses?

Yes. The DKR 90° Hydraulic Fitting ZBW210, Carbon Steel, Zinc-Nickel is engineered for professional crimping of both hydraulic and industrial hoses and is compatible with standard crimping sleeves that are matched to the specific hose type. Its standard Z-end with internal BSP thread, nut and 60° sealing cone (DKR) and robust construction ensure secure assembly and reliable performance when used with the correct sleeve dimension and hose specification. For best results, select crimping sleeves specified for your hose model and follow manufacturer crimping parameters.

Can the DKR 90° Hydraulic Fitting ZBW210, Carbon Steel, Zinc-Nickel be used in high-saline or marine environments without additional corrosion protection?

DKR 90° Hydraulic Fitting ZBW210, Carbon Steel, Zinc-Nickel offers a robust zinc‑nickel coating (6–10 µm) that provides excellent corrosion resistance—tested up to 720 hours in salt spray. For many marine and high‑saline environments this level of protection is very good and often sufficient for exposed components, particularly where the fitting is installed in sheltered locations or used with regular inspection and maintenance. However, actual suitability depends on service conditions: continuous immersion, splash zones, extreme humidity, galvanic coupling with dissimilar metals, mechanical wear, or exposure to aggressive chemicals can shorten lifetime and increase corrosion risk. For permanently submerged applications, highly aggressive marine environments, or installations where maximum longevity with minimal maintenance is required, additional corrosion protection (e.g., stainless steel fittings, double coatings, sacrificial anodes, protective housings, or specialized sealants) is recommended. Bottom line: DKR 90° Hydraulic Fitting ZBW210, Carbon Steel, Zinc-Nickel is suitable for many high‑saline/marine uses without extra protection, but for the most demanding or critical marine exposures, consider additional protection or alternative materials.

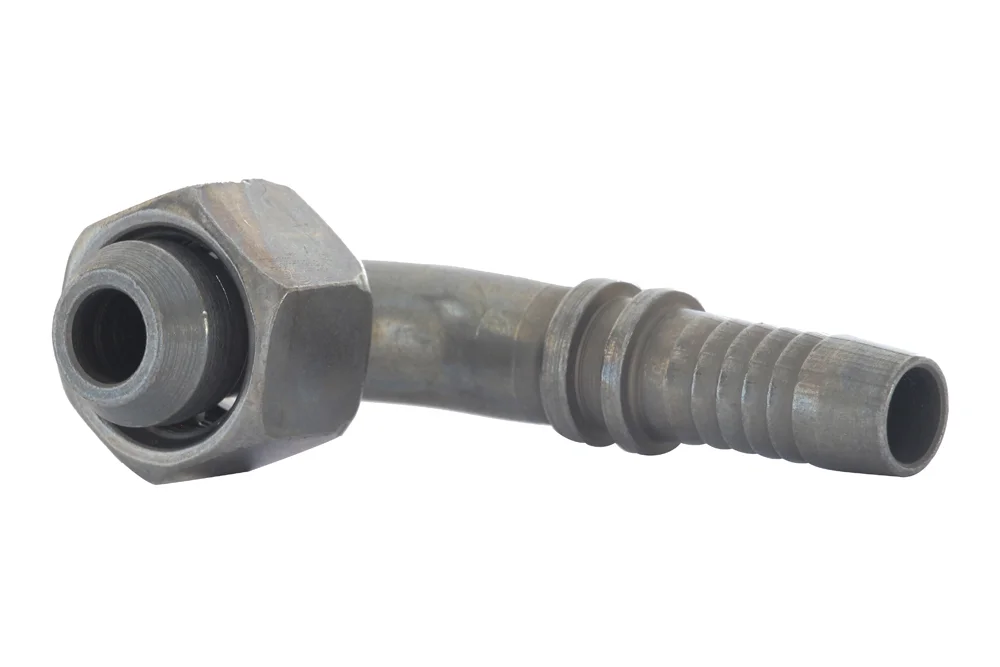

DKR 90° Hydraulic Fitting ZBW210, Carbon Steel, Zinc-Nickel

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	6

The standard hydraulic end type Z with a 90° angled design and regular hydraulic tail for hose connection is equipped with an internal BSP thread, nut, and a 60° sealing cone (DKR), ensuring secure and reliable assembly. Engineered for professional crimping in both hydraulic and industrial hoses, it is compatible with crimping sleeves tailored to specific hose types, guaranteeing optimal performance and durability. Manufactured from high-quality carbon steel and finished with an advanced zinc-nickel coating of 6–10 µm thickness, this fitting offers exceptional protection against wear and corrosion, achieving resistance of up to 720 hours in salt spray testing. Its robust construction and precision engineering make it an excellent choice for demanding applications where reliability, safety, and long service life are essential. Designed to meet the highest industry standards, it provides a dependable solution for hydraulic systems, ensuring consistent performance even under challenging operating conditions.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZBW210-02-03-CN	End. 90° G 1/8" BSP hose 3/16", cone 60°, Zn-Ni	5	-	In stock	Enquiry
TI-ZBW210-02-04-CN	End fitting 90° GW 1/8" BSP, hose 1/4", cone 60°, Zn-Ni	6	-	In stock	Enquiry
TI-ZBW210-04-04-CN	End fitting 90° GW 1/4" BSP, hose 1/4", cone 60°, Zn-Ni	6	-	In stock	Enquiry
TI-ZBW210-06-04-CN	End. 90° G 3/8" BSP, hose 1/4", cone 60°, Zn-Ni	6	-	In stock	Enquiry
TI-ZBW210-06-05-CN	End. 90° G 3/8" BSP, hose 5/16", cone 60°, Zn-Ni	8	-	In stock	Enquiry
TI-ZBW210-06-06-CN	End fitting 90° G 3/8" BSP, hose 3/8", cone 60°, Zn-Ni	10	-	In stock	Enquiry
TI-ZBW210-08-06-CN	End. 90° G 1/2" BSP, hose 3/8", cone 60°, Zn-Ni	10	-	In stock	Enquiry
TI-ZBW210-08-08-CN	End fitting 90° G 1/2" BSP, hose 1/2", cone 60°, Zn-Ni	12	-	In stock	Enquiry
TI-ZBW210-10-08-CN	End. 90° G 5/8" BSP, hose 1/2", cone 60°, Zn-Ni	12	-	In stock	Enquiry
TI-ZBW210-10-10-CN	End fitting 90° G 5/8" BSP, hose 5/8", cone 60°, Zn-Ni	16	-	In stock	Enquiry
TI-ZBW210-12-08-CN	End. 90° G 3/4" BSP, hose 1/2", cone 60°, Zn-Ni	12	-	In stock	Enquiry
TI-ZBW210-12-10-CN	End. 90° G 3/4" BSP, hose 5/8", cone 60°, Zn-Ni	16	-	In stock	Enquiry
TI-ZBW210-12-12-CN	End fitting 90° GW 3/4" BSP, hose 3/4", cone 60°, Zn-Ni	20	-	In stock	Enquiry
TI-ZBW210-16-12-CN	End. 90° G 1" BSP, hose 3/4", cone 60°, Zn-Ni	20	-	In stock	Enquiry
TI-ZBW210-16-16-CN	End fitting 90° GW 1" BSP, hose 1", cone 60°, Zn-Ni	25	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The standard hydraulic end type Z with a 90° angled design and regular hydraulic tail for hose connection is equipped with an internal BSP thread, nut, and a 60° sealing cone (DKR), ensuring secure and reliable assembly. Engineered for professional crimping in both hydraulic and industrial hoses, it is compatible with crimping sleeves tailored to specific hose types, guaranteeing optimal performance and durability. Manufactured from high-quality carbon steel and finished with an advanced zinc-nickel coating of 6–10 µm thickness, this fitting offers exceptional protection against wear and corrosion, achieving resistance of up to 720 hours in salt spray testing. Its robust construction and precision engineering make it an excellent choice for demanding applications where reliability, safety, and long service life are essential. Designed to meet the highest industry standards, it provides a dependable solution for hydraulic systems, ensuring consistent performance even under challenging operating conditions.
