Is KOMATSU Hydraulic End ZMW150 – Carbon Steel compatible with standard 60° reverse cone fittings used in Komatsu systems?

Yes. KOMATSU Hydraulic End ZMW150 – Carbon Steel is compatible with standard 60° reverse cone fittings used in Komatsu systems. The Z-type hydraulic end features an internal metric thread with a nut and seals on a 60° reverse cone specifically to match KOMATSU systems. It is designed for crimping with a sleeve suited to the hose type, ensuring a secure, leak-free connection. Made of carbon steel with a galvanized coating, it provides durable, corrosion-resistant performance suitable for professional hydraulic applications.

Does the KOMATSU Hydraulic End ZMW150 – Carbon Steel require a specific crimping sleeve size for different hose types to ensure a leak-free 60° reverse cone seal?

Yes. The KOMATSU Hydraulic End ZMW150 – Carbon Steel requires a specific crimping sleeve size matched to the hose type to ensure a proper, leak-free 60° reverse cone seal. It is engineered for crimping with a dedicated sleeve that corresponds to the hose construction and diameter; using the correct sleeve ensures secure compression, consistent sealing at the 60° cone, and reliable performance under pressure. Incorrect sleeve sizing can lead to poor crimp quality, compromised sealing, leaks, and premature failure. Always use the sleeve specified for the hose manufacturer and follow recommended crimping procedures and tooling for KOMATSU Hydraulic End ZMW150 – Carbon Steel.

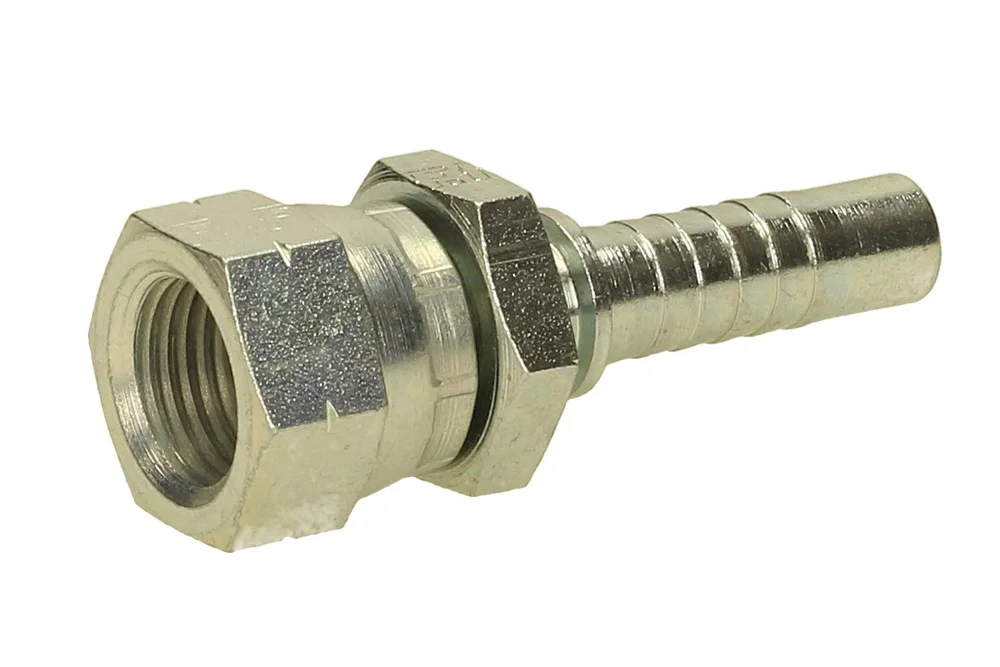

KOMATSU Hydraulic End ZMW150 – Carbon Steel

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

The standard hydraulic end type Z is a reliable and versatile solution designed for professional hydraulic and industrial applications. Equipped with a classic hydraulic tail for hose connection, it features an internal metric thread with a nut and ensures secure sealing on a 60° reverse cone, fully compatible with KOMATSU systems. Engineered for crimping with a dedicated sleeve matched to the specific hose type, this fitting guarantees durability and leak-free performance even under demanding operating conditions. Manufactured from high-quality carbon steel and protected with a galvanized coating, it offers excellent resistance to wear and corrosion, extending service life and reducing maintenance needs. Its precise construction ensures easy installation, consistent performance, and compatibility with a wide range of hydraulic hoses, making it an ideal choice for industries that value efficiency, safety, and long-term reliability.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZMW150-14-04	End. GW M14x1.5, inverted cone 60°, hose 1/4"	6	-	In stock	Enquiry
TI-ZMW150-16-06	End. GW M16x1.5, inverted cone 60°, hose 3/8"	10	-	In stock	Enquiry
TI-ZMW150-18-06	End. GW M18x1.5, reverse cone 60°, hose 3/8"	10	-	In stock	Enquiry
TI-ZMW150-22-08	End. GW M22x1.5, reverse cone 60°, hose 1/2"	12	-	In stock	Enquiry
TI-ZMW150-24-10	End. GW M24x1.5, inverted cone 60°, hose 5/8"	16	-	In stock	Enquiry
TI-ZMW150-30-12	End. GW M30x1.5, reverse cone 60°, hose 3/4"	20	-	In stock	Enquiry
TI-ZMW150-33-16	End. GW M33x1.5, inverted cone 60°, hose 1"	25	-	In stock	Enquiry
TI-ZMW150-36-20	End. GW M36x1.5, inverted cone 60°, hose 1.1/4"	32	-	In stock	Enquiry
TI-ZMW150-42-24	End. GW M42x1.5, inverted cone 60°, hose 1.1/2"	38	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The standard hydraulic end type Z is a reliable and versatile solution designed for professional hydraulic and industrial applications. Equipped with a classic hydraulic tail for hose connection, it features an internal metric thread with a nut and ensures secure sealing on a 60° reverse cone, fully compatible with KOMATSU systems. Engineered for crimping with a dedicated sleeve matched to the specific hose type, this fitting guarantees durability and leak-free performance even under demanding operating conditions. Manufactured from high-quality carbon steel and protected with a galvanized coating, it offers excellent resistance to wear and corrosion, extending service life and reducing maintenance needs. Its precise construction ensures easy installation, consistent performance, and compatibility with a wide range of hydraulic hoses, making it an ideal choice for industries that value efficiency, safety, and long-term reliability.
