Is the 90° Elbow, BSPT Male Thread, Cast Iron, Type 94/94 rated for continuous use at +300°C and what are the maximum allowable pressures at that temperature?

90° Elbow, BSPT Male Thread, Cast Iron, Type 94/94 Format — Yes. The fitting is rated for continuous use at temperatures up to +300°C. Maximum allowable working pressures: 25 bar up to +120°C; 20 bar up to +300°C.

Can the 90° Elbow, BSPT Male Thread, Cast Iron, Type 94/94 be used with steam systems, and what precautions are required at elevated temperatures and pressures?

Yes — the 90° Elbow, BSPT Male Thread, Cast Iron, Type 94/94 can be used with steam systems within its rated temperature and pressure limits. It is engineered for temperatures up to +300°C and withstands working pressures of 25 bar up to +120°C and 20 bar up to +300°C, which covers many steam-service conditions. Precautions: - Do not exceed the stated pressure/temperature ratings: above +120°C allowable pressure reduces from 25 bar to 20 bar; at temperatures approaching +300°C ensure system pressure stays ≤20 bar. - Account for thermal expansion and support piping to avoid undue stress on threaded joints and the elbow. - Use appropriate thread sealing methods and steam-compatible sealants or PTFE tape rated for the temperature to ensure leak-free joints. - Protect against water hammer and pressure spikes (use slow-opening valves, steam traps, and pressure-relief devices) to prevent shock loads that can damage cast iron fittings. - Inspect for corrosion and degradation regularly; condensate and wet steam can accelerate wear—drain condensate and maintain dry steam where possible. - Consider vibration isolation and avoid mechanical shock; cast iron is strong but less ductile than steels at high cyclic loads. - If operating near maximum limits or under cyclic thermal/pressure loading, consult the system engineer or supplier for suitability or consider higher-grade materials (e.g., steel) for enhanced safety. Following these precautions will help ensure safe, reliable service of the 90° Elbow, BSPT Male Thread, Cast Iron, Type 94/94 in steam applications.

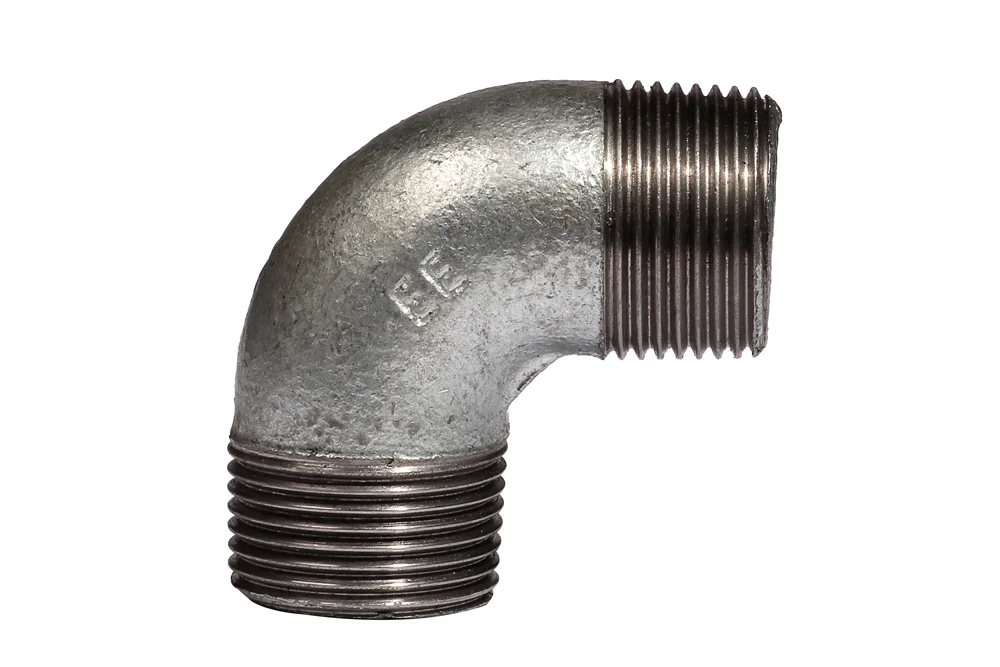

90° Elbow, BSPT Male Thread, Cast Iron, Type 94/94

Additional information

Material	CS – steel (cast iron)

The 90° elbow with external BSPT thread is a robust and reliable component designed for precise and secure piping connections in demanding industrial installations. Manufactured from high‑quality ductile iron, it combines exceptional durability with resistance to mechanical stress, ensuring long service life even under intensive operating conditions. Engineered to perform at temperatures up to +300°C, it guarantees consistent functionality in both standard and high‑temperature environments. The fitting withstands working pressures of 25 bar up to +120°C and 20 bar up to +300°C, making it a versatile solution for a wide range of applications. Its threaded BSPT connection allows for quick and tight assembly, reducing installation time while ensuring leak‑free performance. This elbow is an ideal choice for industries seeking efficiency, safety, and reliability in fluid transport systems, offering a perfect balance of strength, precision, and adaptability.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]
EE-9494-08	90° elbow with GZ / GZ BSPT 1/2", galvanized cast iron.	-	25
EE-9494-12	90° elbow with GZ / GZ BSPT 3/4", galvanized cast iron.	-	25
EE-9494-16	90° elbow with GZ / GZ BSPT 1", galvanized cast iron.	-	25

The 90° elbow with external BSPT thread is a robust and reliable component designed for precise and secure piping connections in demanding industrial installations. Manufactured from high‑quality ductile iron, it combines exceptional durability with resistance to mechanical stress, ensuring long service life even under intensive operating conditions. Engineered to perform at temperatures up to +300°C, it guarantees consistent functionality in both standard and high‑temperature environments. The fitting withstands working pressures of 25 bar up to +120°C and 20 bar up to +300°C, making it a versatile solution for a wide range of applications. Its threaded BSPT connection allows for quick and tight assembly, reducing installation time while ensuring leak‑free performance. This elbow is an ideal choice for industries seeking efficiency, safety, and reliability in fluid transport systems, offering a perfect balance of strength, precision, and adaptability.
