Is the CEJN 115 Quick Connect Plug with Female Thread & Valve, Hardened Steel compatible with standard hydraulic couplings up to 1000 bar?

Yes. The CEJN 115 Quick Connect Plug with Female Thread & Valve, Hardened Steel is compatible with standard high-pressure hydraulic couplings and is specifically engineered for systems up to 1000 bar working pressure when connected. Constructed from hardened, galvanized steel with NBR sealing, it provides durable, leak-free performance and safety in extreme conditions. It features a nominal diameter of 2.5 mm, flow capacity of 6 l/min at Δp = 4 bar, a burst pressure of 2600 bar, and an operating temperature range of -30°C to +100°C, making it suitable for hydraulic presses, lifting devices, rescue tools and other high-pressure equipment.

Can the CEJN 115 Quick Connect Plug with Female Thread & Valve, Hardened Steel be used with NBR-sealed systems exposed to temperatures below -30°C without performance loss?

No. The CEJN 115 Quick Connect Plug with Female Thread & Valve, Hardened Steel is specified with NBR sealing and an operating temperature range of -30°C to +100°C. Use below -30°C risks NBR hardening, loss of elasticity and sealing performance, increased leak tendency and possible premature failure. For reliable operation below -30°C choose a coupling with low-temperature-rated seals (e.g., FKM/FFKM or specially formulated NBR for subzero use) or consult CEJN for a validated low-temperature variant.

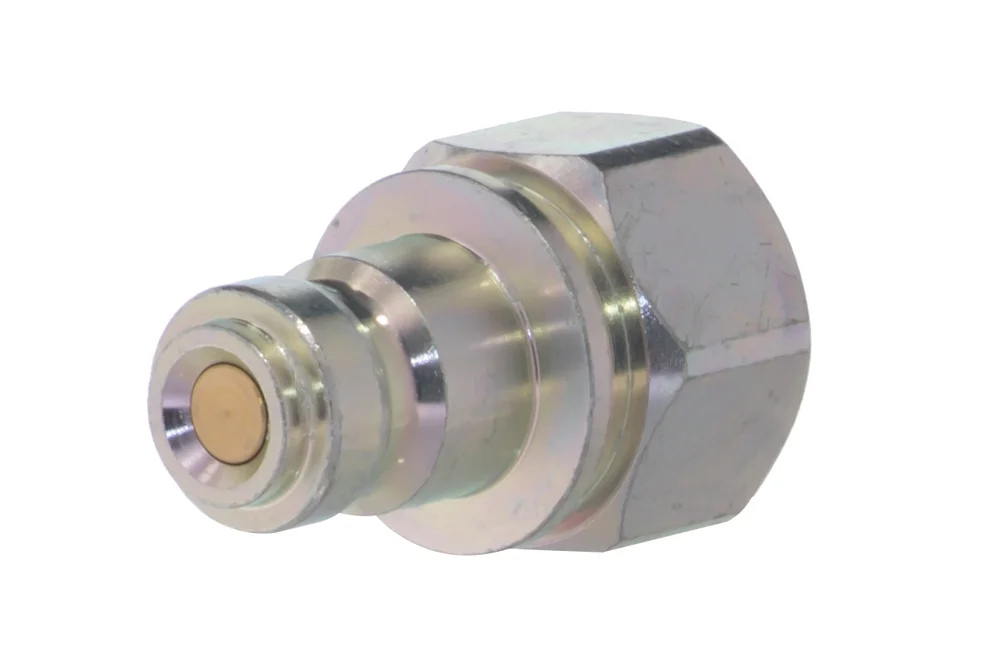

CEJN 115 quick-coupling plug with female thread with a valve, hardened steel

All products, UHP quick couplings/

Additional information

Material	CS – steel (cast iron)

CEJN 115 quick-coupling plug with a female thread and with a valve intended for hydraulic installations at very high pressures. Used in hydraulic presses, rescue equipment, hydraulic lifts, cutters, etc. Supplied as standard with a cap to protect against contamination. Material: hardened steel, galvanized. Sealing: NBR. Flow: 6 l/min (Δp = 4 bar). Nominal diameter: 2.5 mm. Working pressure: 1000 bar (coupling connected). Burst pressure: 2600 bar. Operating temperature: from -30°C to +100°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
CJ-HP-101156102	CEJN 115 plug 1/4" BSPT	-	1000	In stock	Enquiry
CJ-HP-101156104	CEJN 115 GW 3/8" BSPT plug	-	1000	In stock	Enquiry
CJ-HP-101156201	CEJN 115 plug 1/8" BSP	-	1000	In stock	Enquiry
CJ-HP-101156202	CEJN 115 male connector 1/4" BSP	-	1000	In stock	Enquiry
CJ-HP-101156204	CEJN 115 GW 3/8" BSP connector	-	1000	In stock	Enquiry
CJ-HP-101156401	CEJN 115 GW 1/8" NPT plug	-	1000	In stock	Enquiry
CJ-HP-101156402	CEJN 115 plug 1/4" NPT	-	1000	In stock	Enquiry
CJ-HP-101156404	CEJN 115 male connector 3/8" NPT	-	1000	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

CEJN 115 quick-coupling plug with a female thread and with a valve intended for hydraulic installations at very high pressures. Used in hydraulic presses, rescue equipment, hydraulic lifts, cutters, etc. Supplied as standard with a cap to protect against contamination. Material: hardened steel, galvanized. Sealing: NBR. Flow: 6 l/min (Δp = 4 bar). Nominal diameter: 2.5 mm. Working pressure: 1000 bar (coupling connected). Burst pressure: 2600 bar. Operating temperature: from -30°C to +100°C.
