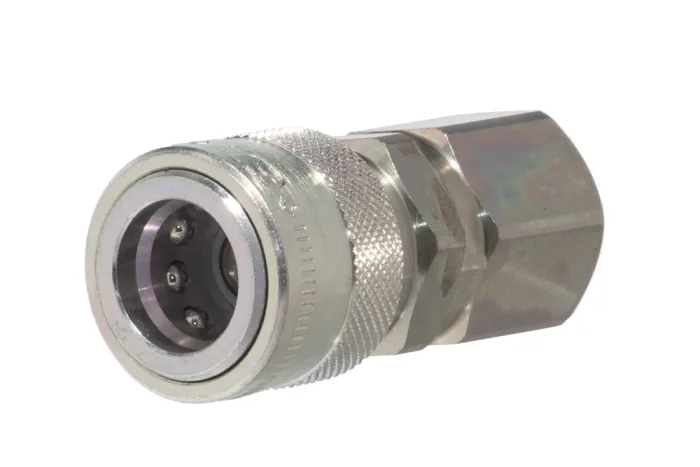

Socket quick coupling CEJN 117 with female thread with valve, hardened steel

Additional information

Material

CS – steel (cast iron)

Socket quick coupling CEJN 117 with thread internal and with valve intended for installation hydraulic o very high pressures. is sister version series 115, has such same parameters use however ich mutual connection is impossible. used in presses hydraulic, equipment rescue, jacks hydraulic, cutters, etc. optionally socket can be equipped in ring securing against accidental disconnection. supplied standard with plastic a cap in order to protection against contaminants. Material: hardened steel, galvanized. sealing: NBR. Flow rate: 6 l/min (Δp = 4 bar). Working pressure: 1000 bar (coupling connected). pressure bursting: 2600 bar. Operating temperature: od -30°C up to +100°C.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
CJ-HP-101171202Socket CEJN 117 1/4" BSP female-1000In stock0 €
Enquiry
CJ-HP-101171404Socket CEJN 117 3/8" NPT female-1000In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Socket quick coupling CEJN 117 with thread internal and with valve intended for installation hydraulic o very high pressures. is sister version series 115, has such same parameters use however ich mutual connection is impossible. used in presses hydraulic, equipment rescue, jacks hydraulic, cutters, etc. optionally socket can be equipped in ring securing against accidental disconnection. supplied standard with plastic a cap in order to protection against contaminants. Material: hardened steel, galvanized. sealing: NBR. Flow rate: 6 l/min (Δp = 4 bar). Working pressure: 1000 bar (coupling connected). pressure bursting: 2600 bar. Operating temperature: od -30°C up to +100°C.

Additional information

Material

CS – steel (cast iron)
