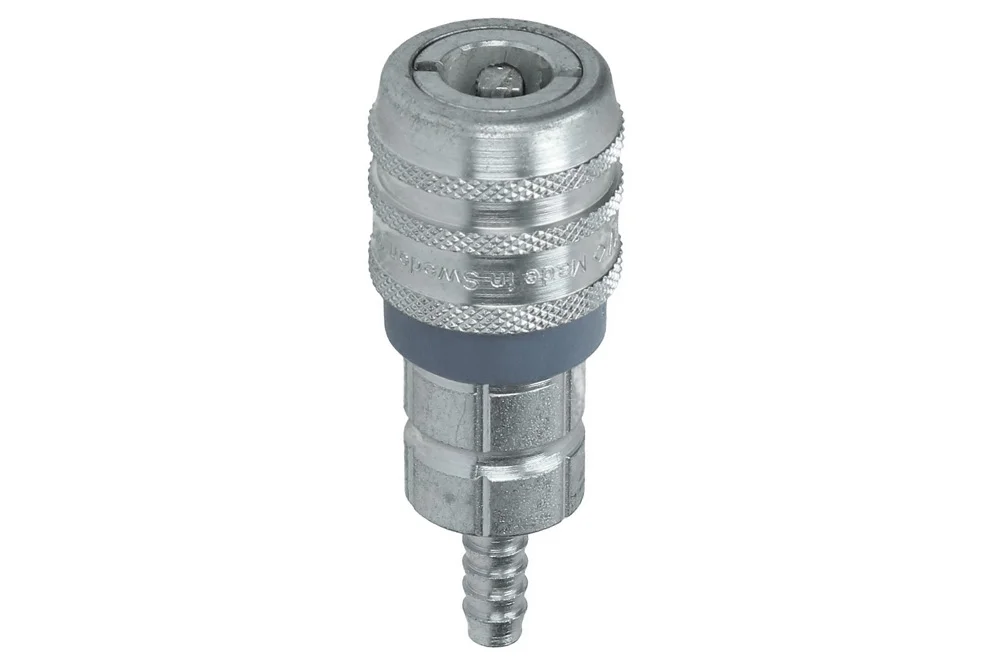

Socket quick coupling pneumatic DN 7.6 with A fitting for hose, steel carbon, CEJN 320 VS

Additional information

Material

CS – steel (cast iron)

Socket quick coupling CEJN series 320 (DN 7.6) in version VS (disconnected without pressure, for avoiding danger recoil, compliant with the standard ISO 4414 and EN 983) with fitting for hose o versatile use in industry, mainly in installations pneumatic. operated one hand at minimum force required for connections. made in accordance with Eurostandard 7.6. Working pressure: 12 bar (Safety factor 4:1). flow capacity: 1900 l/min (Pe = 6 bar, Δp = 0.5 bar). Material: steel galvanized. sealing: NBR. Operating temperature: od -20°C up to +100°C.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
CJ-103203002Quick coupling socket CEJN 320 with fitting for 6.3 mm hose, with a valve safety612In stock0 €
Enquiry
CJ-103203003Quick coupling socket CEJN 320 with fitting for 8 mm hose, with a valve safety812In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Socket quick coupling CEJN series 320 (DN 7.6) in version VS (disconnected without pressure, for avoiding danger recoil, compliant with the standard ISO 4414 and EN 983) with fitting for hose o versatile use in industry, mainly in installations pneumatic. operated one hand at minimum force required for connections. made in accordance with Eurostandard 7.6. Working pressure: 12 bar (Safety factor 4:1). flow capacity: 1900 l/min (Pe = 6 bar, Δp = 0.5 bar). Material: steel galvanized. sealing: NBR. Operating temperature: od -20°C up to +100°C.

Additional information

Material

CS – steel (cast iron)
