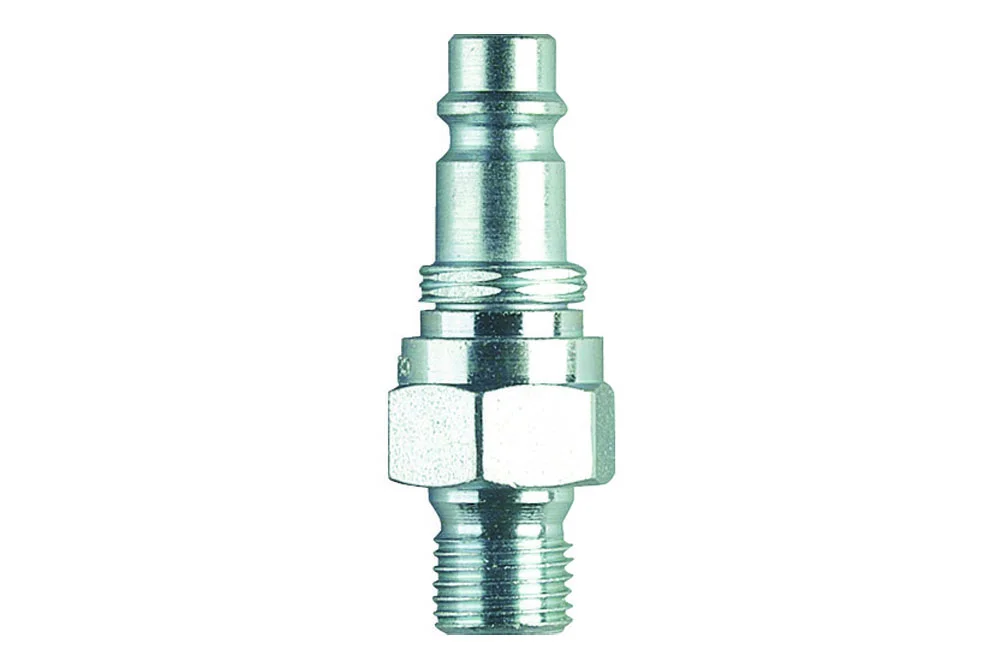

Plug quick coupling measurement with male thread, with valve, CEJN 358 SNAP-CHECK

Additional information

Material

CS – steel (cast iron)

Plug quick coupling measurement SNAP-CHECK production Swedish intended for measuring pressure in systems hydraulics power. socket quick coupling connected are line with pressure gauge, a plugs quick coupling with hardened steel are standard mounted on fixed in system hydraulic and equipped in valves shut-off. connection socket with a plug possible is under pressure up to 300 bar. pressure working for disconnected with socket plug is 600 bar, a minimal pressure bursting 2400 bar. pressure working for connected socket and plug is also 600 bar, whereas minimal pressure bursting to 1300 bar. precision made quick couplings, ensures tightness and reliability points measurement the system hydraulic. range connections for plugs measurement allows easy configuration connections. plugs quick couplings, supplied are standard in set with red caps with plastic. Working pressure: 600 bar. pressure switching: up to 300 bar. Material body: steel galvanized. sealing: NBR. Operating temperature: od -30°C up to +100°C.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
CJ-H-103586151Quick coupling plug measurement Snap-Check, 1/8" BSPT male-600In stock0 €
Enquiry
CJ-H-103586152Quick coupling plug measurement Snap-Check, 1/4" BSPT male-600In stock0 €
Enquiry
CJ-H-103586154Quick coupling plug measurement Snap-Check, 3/8" BSPT male-600In stock0 €
Enquiry
CJ-H-103586251Quick coupling plug measurement Snap-Check, 1/8" BSP male-600In stock0 €
Enquiry
CJ-H-103586254Quick coupling plug measurement Snap-Check, 3/8" BSP male-600In stock0 €
Enquiry
CJ-H-103586282Quick coupling plug measurement Snap-Check, 1/4" BSP male-600In stock0 €
Enquiry
CJ-H-103586287Quick coupling plug measurement Snap-Check, 1/4" BSP male, for azotu-600In stock0 €
Enquiry
CJ-H-103586451Quick coupling plug measurement Snap-Check, 1/8" NPT male-600In stock0 €
Enquiry
CJ-H-103586452Quick coupling plug measurement Snap-Check, 1/4" NPT male-600In stock0 €
Enquiry
CJ-H-103586454Quick coupling plug measurement Snap-Check, 3/8" NPT male-600In stock0 €
Enquiry
CJ-H-103586551Quick coupling plug measurement Snap-Check, M10x1.25 male-600In stock0 €
Enquiry
CJ-H-103586552Quick coupling plug measurement Snap-Check, M12x1.5 male-600In stock0 €
Enquiry
CJ-H-103586554Quick coupling plug measurement Snap-Check, M14x1.5 male-600In stock0 €
Enquiry
CJ-H-103586585Quick coupling plug measurement Snap-Check, M10x1.25 male O-ring Boss-600In stock0 €
Enquiry
CJ-H-103586752Quick coupling plug measurement Snap-Check, 7/16"-20 UNF male-600In stock0 €
Enquiry
