Is the CES Hydraulic End for UHP Heavy Series Hose, Carbon Steel, PMZ112 Type compatible with standard thermoplastic hose crimping sleeves?

Format: CES Hydraulic End for UHP Heavy Series Hose, Carbon Steel, PMZ112 Type Yes — the CES Hydraulic End for UHP Heavy Series Hose, Carbon Steel, PMZ112 Type is designed specifically for UHP thermoplastic hoses and requires a matching crimping sleeve made for thermoplastic constructions. Its distinctive tail and heavy-series CES 24° cone sealing system are optimized for professional crimping with the appropriate thermoplastic sleeve to ensure secure, leak-free connections at high pressures. Standard crimping sleeves made for wire-braid or non-thermoplastic hoses are not guaranteed compatible; use the correct thermoplastic crimping sleeve specified by the hose/fitting manufacturer to achieve proper crimp profile, mechanical retention, and sealing performance.

Can the CES Hydraulic End for UHP Heavy Series Hose, Carbon Steel, PMZ112 Type be used with alternative crimping methods or non-standard sleeves for specialized applications?

CES Hydraulic End for UHP Heavy Series Hose, Carbon Steel, PMZ112 Type is engineered and validated for professional crimping using the specified crimping sleeve for UHP thermoplastic hoses. Because the sealing geometry (24° cone CES) and the tail are optimized for that sleeve and crimp process, using alternative crimping methods or non‑standard sleeves is not recommended except when explicitly approved by the manufacturer or an authorized engineer. Substituting sleeves or crimp techniques can compromise the mechanical grip, hose-to-fitting seal, burst/working pressure performance and corrosion resistance, and may void safety certifications or warranties. If your application demands a different assembly method, consult the manufacturer for compatibility data, perform qualified testing (pressure, burst, leakage, fatigue) and obtain written approval before use.

A fitting hydraulic CES for hose UHP series heavy, steel carbon, type PMZ112

Additional information

Material	CS – steel (cast iron)

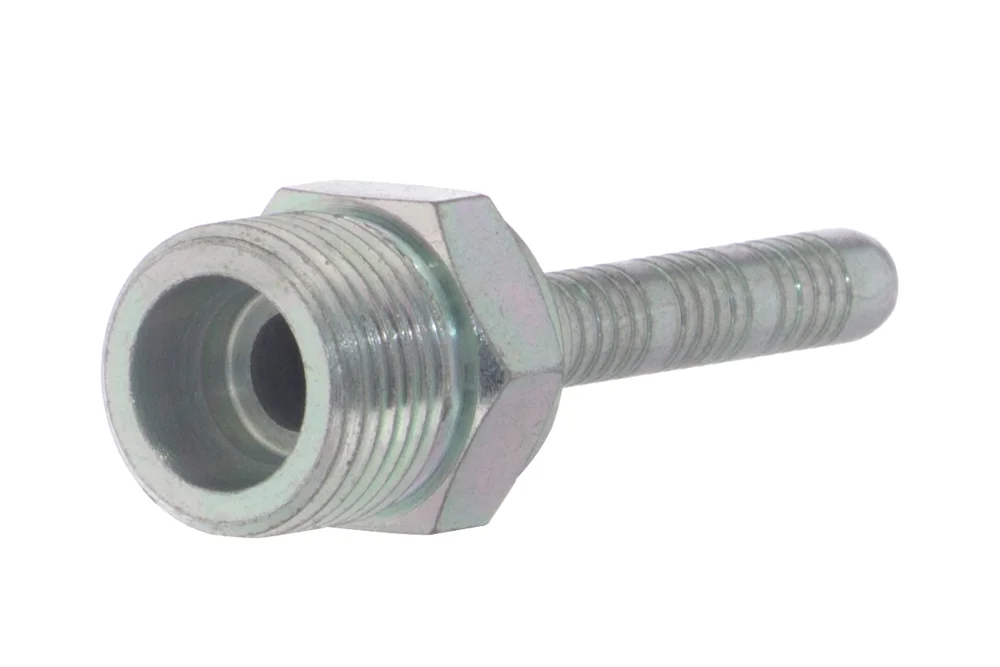

A fitting hydraulic (type P – of special „tail” for hose thermoplastic) with thread external metric, sealing on a 24° cone (CES), series heavy. Intended for crimping in hoses thermoplastic UHP using ferrule crimping, appropriate for type hose. Material: steel carbon, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
TI-PMZ112-18-04-TO	Fitting M18x1.5 male, hose thermoplastic 1/4", 24°, heavy, CES	6	800	In stock	0 €		Enquiry
TI-PMZ112-22-06-TO	Fitting M22x1.5 male, hose thermoplastic 3/8", 24°, heavy, CES	10	800	In stock	0 €		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

A fitting hydraulic (type P – of special „tail” for hose thermoplastic) with thread external metric, sealing on a 24° cone (CES), series heavy. Intended for crimping in hoses thermoplastic UHP using ferrule crimping, appropriate for type hose. Material: steel carbon, galvanized.
