Is Clamp DIN 3015 Standard, Rubber, Type 101 suitable for outdoor marine exposure and saltwater spray?

Clamp DIN 3015 Standard, Rubber, Type 101 Format is suitable for outdoor marine exposure and saltwater spray with some caveats. The clamp is designed for marine applications and described as delivering long-lasting performance in demanding environments. Key supportive features: - Rubber body provides corrosion-resistant cushioning for pipes/hoses. - Galvanized steel screws and plates offer basic corrosion protection. - Carbon steel base gives strength and durability. - Operating temperature -40°C to +80°C suitable for marine climates. Caveats and recommendations: - Galvanized steel and carbon steel are not as corrosion-resistant as stainless steel in prolonged saltwater spray or splash zones. For continuous exposure to sea spray, splash, or immersion, stainless steel fasteners and components (e.g., AISI 316) are preferable. - Consider additional protective measures: regular inspection and maintenance, protective coatings, or sacrificial anodes where appropriate. - For critical or permanently exposed marine installations, confirm material grades with the supplier or specify marine-grade stainless options and compatible rubber compounds. Conclusion: Suitable for many outdoor marine uses and occasional salt spray, but for continuous severe saltwater exposure choose stainless components or higher corrosion-resistant variants.

Can Clamp DIN 3015 Standard, Rubber, Type 101 be used with stainless steel hardware for enhanced corrosion resistance in marine environments?

Clamp DIN 3015 Standard, Rubber, Type 101 can be used with stainless steel hardware to enhance corrosion resistance in marine environments. The clamp itself is rubber with galvanized steel screws, plates and a carbon steel base; replacing the screws, top plate and base with stainless steel fasteners and components (e.g., A4/316 grade) will significantly improve resistance to saltwater corrosion and extend service life in marine conditions. Ensure any replacement parts maintain the clamp’s original dimensions, thread sizes and load capacity to preserve fit and function. Also verify compatibility of stainless grades with the rubber material to avoid galvanic or chemical issues, and consider additional corrosion protection for welded bases or attachment points. For critical marine applications, specify marine-grade stainless hardware and consult supplier guidance (e.g., TUBES INTERNATIONAL®) for correct selection and installation.

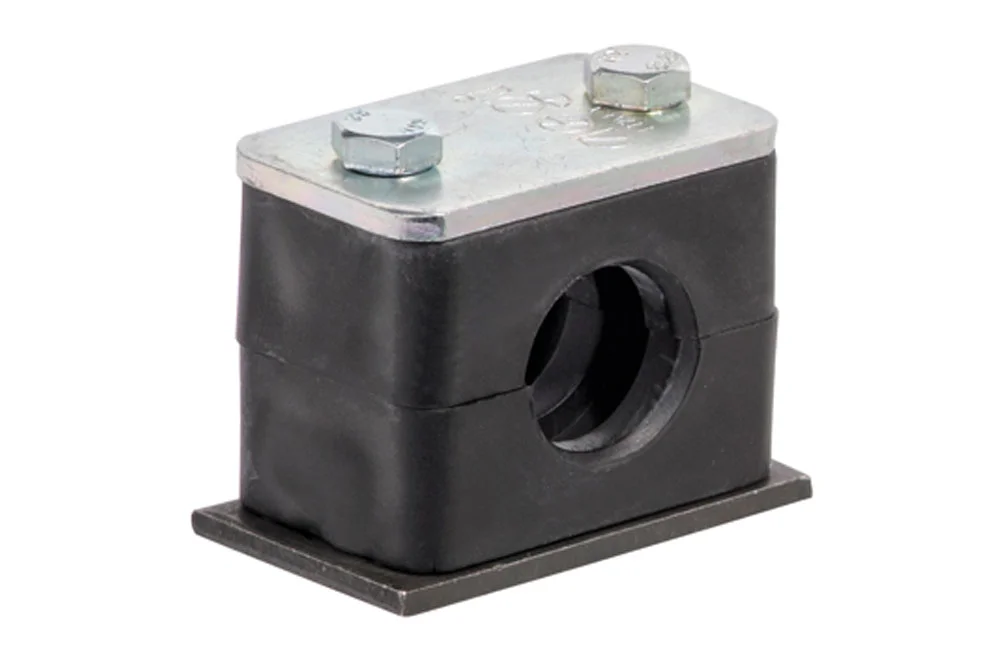

Clamp DIN 3015 Standard, Rubber, Type 101

All products, Clamps for hydraulic pipes/

Additional information

Material	P – material (plastic)
Standard length [m]	15, 60 / 120

DIN 3015 standard clamp type 101 with top plate ensures fast, reliable, and visually neat installation of pipes and hoses in both land-based and marine applications. Designed in compliance with DIN 3015, it offers versatile mounting options: welding the base directly to the structure, bolting, or attaching to a rail system. The clamp is available with a profiled inner surface for secure pipe fastening or with a smooth bore version, marked with the letter H, ideal for hoses. Depending on the size group, it is fixed with either one or two hexagon head screws, guaranteeing stability and durability. Manufactured from high-quality rubber with galvanized steel screws and plates, and a robust carbon steel base, the clamp delivers long-lasting performance even in demanding environments. Operating effectively within a temperature range of -40°C to +80°C, it is a reliable solution for diverse industrial sectors. To enhance flexibility, additional accessories such as extended plates, rails, and mounting screws are available, with expert selection support provided by TUBES INTERNATIONAL®.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]
TC-RB101-106	DIN3015 standard RB clamp for 6 mm pipe	-	-
TC-RB101-106,4	DIN3015 standard clamp RB for a 6.4 mm pipe	-	-
TC-RB101-108	DIN3015 standard RB clamp for 8 mm pipe	-	-
TC-RB101-109,5	DIN3015 standard RB clamp for 9.5 mm pipe	-	-
TC-RB101-110	DIN3015 standard RB clamp for 10 mm pipe	-	-
TC-RB101-112	DIN3015 standard RB clamp for 12 mm pipe	-	-
TC-RB101-212,7	DIN3015 standard RB clamp for 12.7 mm pipe	-	-
TC-RB101-213,5	DIN3015 standard RB clamp for 13.5 mm pipe	-	-
TC-RB101-214	DIN3015 standard RB clamp for 14 mm pipe	-	-
TC-RB101-215	DIN3015 standard RB clamp for 15 mm pipe	-	-
TC-RB101-216	DIN3015 standard RB clamp for 16 mm pipe	-	-
TC-RB101-217,2	DIN3015 standard RB clamp for 17.2 mm pipe	-	-
TC-RB101-218	DIN3015 standard RB clamp for 18 mm pipe	-	-
TC-RB101-219	DIN3015 standard RB clamp for 19 mm pipe	-	-
TC-RB101-319	DIN3015 standard RB clamp for 19 mm pipe	-	-
TC-RB101-320	DIN3015 standard RB clamp for 20 mm pipe	-	-
TC-RB101-321,3	DIN3015 standard RB clamp for a 21.3 mm pipe	-	-
TC-RB101-322	DIN3015 standard RB clamp for 22 mm pipe	-	-
TC-RB101-325	DIN3015 standard RB clamp for 25 mm pipe	-	-
TC-RB101-325,4	DIN3015 standard RB clamp for a 25.4 mm pipe	-	-
TC-RB101-426,9	DIN3015 standard RB clamp for a 26.9 mm pipe	-	-
TC-RB101-428	DIN3015 standard RB clamp for 28 mm pipe	-	-
TC-RB101-430	DIN3015 standard RB clamp for 30 mm pipe	-	-
TC-RB101-432	DIN3015 standard RB clamp for 32 mm pipe	-	-
TC-RB101-532	DIN3015 standard RB clamp for 32 mm pipe	-	-
TC-RB101-533,7	DIN3015 standard RB clamp for a 33.7 mm pipe	-	-
TC-RB101-535	DIN3015 standard RB clamp for 35 mm pipe	-	-
TC-RB101-538	DIN3015 standard RB clamp for 38 mm pipe	-	-
TC-RB101-540	DIN3015 standard RB clamp for 40 mm pipe	-	-
TC-RB101-542	DIN3015 standard RB clamp for 42 mm pipe	-	-
TC-RB101-542,4	DIN3015 standard clamp for 42.4 mm pipe	-	-
TC-RB101-545	DIN3015 standard RB clamp for 45 mm pipe	-	-
TC-RB101-644,5	DIN3015 standard RB clamp for a 44.5 mm pipe	-	-
TC-RB101-648,3	DIN3015 standard RB clamp for 48.3 mm pipe	-	-
TC-RB101-650,8	DIN3015 standard RB clamp for 50.8 mm pipe	-	-

DIN 3015 standard clamp type 101 with top plate ensures fast, reliable, and visually neat installation of pipes and hoses in both land-based and marine applications. Designed in compliance with DIN 3015, it offers versatile mounting options: welding the base directly to the structure, bolting, or attaching to a rail system. The clamp is available with a profiled inner surface for secure pipe fastening or with a smooth bore version, marked with the letter H, ideal for hoses. Depending on the size group, it is fixed with either one or two hexagon head screws, guaranteeing stability and durability. Manufactured from high-quality rubber with galvanized steel screws and plates, and a robust carbon steel base, the clamp delivers long-lasting performance even in demanding environments. Operating effectively within a temperature range of -40°C to +80°C, it is a reliable solution for diverse industrial sectors. To enhance flexibility, additional accessories such as extended plates, rails, and mounting screws are available, with expert selection support provided by TUBES INTERNATIONAL®.
