Is the Coil 30 mm Ø8 for CNOMO 060580 Valves suitable for continuous 24/7 operation at full load?

Yes. The Coil 30 mm Ø8 for CNOMO 060580 Valves is suitable for continuous 24/7 operation at full load. It has a 100% ED continuous duty rating, insulation class F155 for high thermal resistance, and a voltage tolerance of -10% to +10% to maintain stable performance. Its IP65 protection and robust DIN 43650-A connector further protect against dust and water, supporting reliable long‑term use in harsh industrial environments.

Can the Coil 30 mm Ø8 for CNOMO 060580 Valves withstand exposure to dust and water in outdoor industrial environments without additional sealing?

Yes. The Coil 30 mm Ø8 for CNOMO 060580 Valves has an IP65 protection rating (EN60529) and a robust connector (DIN 43650 shape A), which means it is protected against dust ingress and low‑pressure water jets from any direction. With that IP65 rating and proper connector installation, it can withstand exposure to dust and water in outdoor industrial environments without additional sealing. Ensure connector and mating surfaces are correctly mounted and tightened to maintain the IP65 protection in the field.

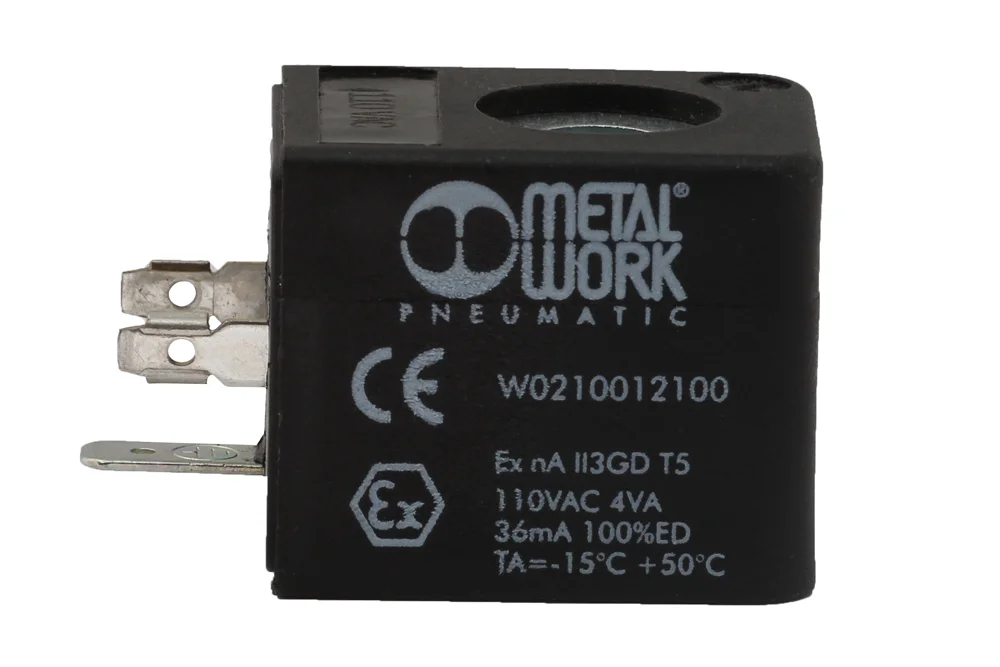

Coil 30 mm Ø8 for CNOMO 060580 Valves

All products, Equipment for pneumatic valves/

Additional information

The Coil 30 mm O8 for solenoid valves CNOMO 060580 is a high‑performance component designed to ensure reliable and efficient operation in demanding industrial environments. Built with insulation class F155, it guarantees excellent thermal resistance and long service life, even under continuous use. With a voltage tolerance of -10% to +10%, the coil provides stable functionality and consistent performance, minimizing the risk of downtime. Its IP65 protection degree according to EN60529, combined with a robust connector, safeguards the system against dust and water ingress, making it suitable for harsh working conditions. The connector, designed in compliance with DIN 43650 shape A standards, ensures secure and easy installation, while the 100% ED continuous duty cycle allows uninterrupted operation without overheating. This coil is the ideal choice for applications requiring durability, precision, and maximum reliability, offering a solution that enhances productivity and reduces maintenance needs.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-W0210010100	Coil 30 mm D8 4W 24V DC (CNOMO valves)	-	-	In stock	Enquiry
MW-W0210011100	Coil 30 mm D8 4VA 24V AC 50/60 Hz (CNOMO valves)	-	-	In stock	Enquiry
MW-W0210012100	Coil 30 mm D8 4VA 110V AC 50/60 Hz (CNOMO valves)	-	-	In stock	Enquiry
MW-W0210013100	Coil 30 mm D8 4VA 220V AC 50/60 Hz (CNOMO valves)	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The Coil 30 mm O8 for solenoid valves CNOMO 060580 is a high‑performance component designed to ensure reliable and efficient operation in demanding industrial environments. Built with insulation class F155, it guarantees excellent thermal resistance and long service life, even under continuous use. With a voltage tolerance of -10% to +10%, the coil provides stable functionality and consistent performance, minimizing the risk of downtime. Its IP65 protection degree according to EN60529, combined with a robust connector, safeguards the system against dust and water ingress, making it suitable for harsh working conditions. The connector, designed in compliance with DIN 43650 shape A standards, ensures secure and easy installation, while the 100% ED continuous duty cycle allows uninterrupted operation without overheating. This coil is the ideal choice for applications requiring durability, precision, and maximum reliability, offering a solution that enhances productivity and reduces maintenance needs.
