What is the correct fitment procedure for the Hydraulic Hose Collet 1SC, Carbon Steel, Z1TC Type to ensure secure, leak-free connections?

The correct fitment procedure for Hydraulic Hose Collet 1SC, Carbon Steel, Z1TC Type to ensure secure, leak-free connections: 1. Inspect components: verify hose is 1SC type, cut end is square, clean and free of debris. Check sleeve (Z1TC) for damage and confirm D1, D2, D3 match hose and ferrule dimensions. 2. Slide sleeve onto hose: push the Z1TC sleeve over the hose end until the sleeve’s inner face sits flush with the hose cut. Ensure the sleeve’s D2 (inner diameter) fits snugly over the hose cover without forcing. 3. Insert fitting/tube: push the fitting tail or nipple fully into the hose until it bottoms out against the sleeve. Proper engagement ensures the hose and fitting are aligned concentrically. 4. Check lock engagement: ensure the sleeve’s lock diameter (D3) engages the hose cover/ferrule area as designed. The sleeve should clamp evenly around the hose with no visible gaps or pinched areas. 5. Secure assembly: depending on system type, complete any required crimping or tightening per manufacturer specs. For Z1TC, no additional machining is needed—use the recommended crimping tool/profile and pressure to achieve specified compression without deforming the sleeve. 6. Inspect final assembly: verify uniform crimp, no exposed reinforcement wires, no splits in hose cover, and that outer diameter equals expected D1. Perform a pressure/leak test at working pressure to confirm leak-free performance. 7. Maintain records and replace if wear: periodically inspect for corrosion or mechanical damage despite galvanized coating; replace assemblies showing degradation. Following these steps with correct dimension matching (D1, D2, D3) and proper crimping will provide a secure, leak-free connection with Hydraulic Hose Collet 1SC, Carbon Steel, Z1TC Type.

How does the Hydraulic Hose Collet 1SC, Carbon Steel, Z1TC Type perform under high-temperature and chemical exposure conditions?

The Hydraulic Hose Collet 1SC, Carbon Steel, Z1TC Type performs well under elevated temperature and moderate chemical exposure thanks to its robust carbon steel construction and protective galvanized coating. The carbon steel body provides strong mechanical resistance to deformation and wear at higher operating temperatures typical for hydraulic systems, while the galvanized finish adds corrosion protection that helps limit surface degradation when exposed to moisture and common hydraulic fluids. However, performance under extreme heat or aggressive chemicals depends on specific conditions: very high temperatures may reduce the mechanical strength of carbon steel and can accelerate coating degradation, and certain aggressive chemicals (strong acids, alkalis, or specialized solvents) can attack the galvanized layer or the base steel, compromising corrosion resistance and long-term durability. For prolonged exposure to harsh chemicals or sustained high-temperature environments, compatibility verification with the fluid chemistry and temperature profile is recommended—consider alternative materials or specialized coatings if needed. In summary: reliable for typical high-temperature hydraulic service and everyday hydraulic fluids; caution and material compatibility checks required for extreme temperatures or aggressive chemical exposure.

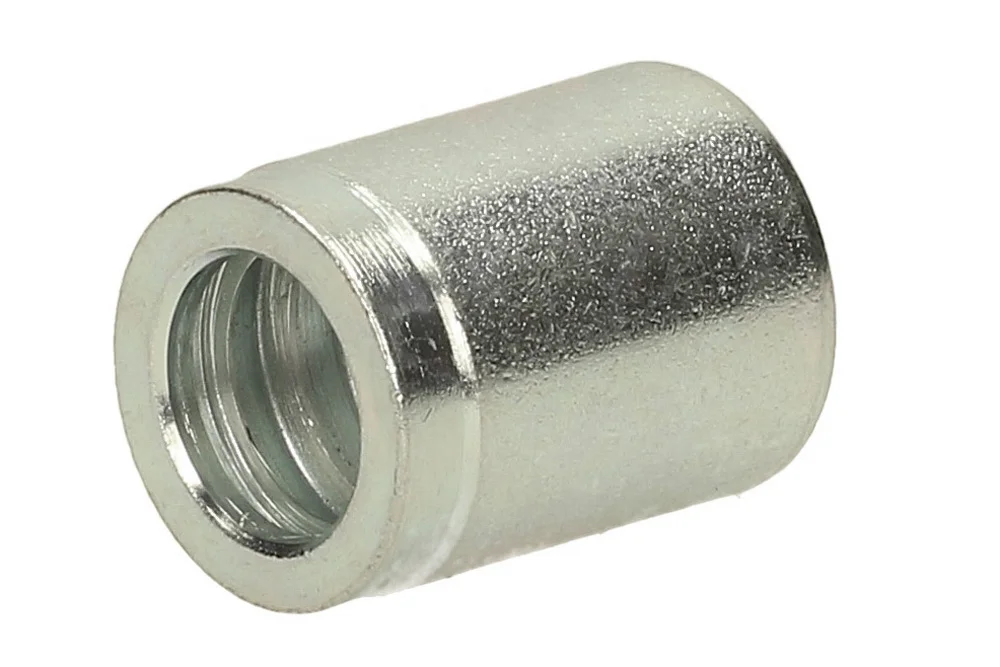

Hydraulic Hose Collet 1SC, Carbon Steel, Z1TC Type

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

The Z1TC clamping sleeve is a reliable solution designed for secure and durable connections with rubber hydraulic hoses of type 1SC. Engineered for quick and efficient assembly, it requires no additional machining, which significantly reduces installation time and simplifies the entire process. The sleeve is precisely manufactured with three key dimensions: the outer diameter (D1), the inner diameter (D2), and the lock diameter (D3), ensuring a perfect fit and optimal performance in demanding hydraulic systems. Made of high-quality carbon steel and finished with a protective galvanized coating, it offers excellent resistance to wear, corrosion, and mechanical stress, guaranteeing long-lasting durability even under intensive operating conditions. This robust construction makes the Z1TC clamping sleeve an ideal choice for professionals seeking a dependable, maintenance-friendly, and cost-effective component that enhances the safety and efficiency of hydraulic applications.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-Z1TC-04	Hose sleeve 1SC 1/4"	6	-	In stock	Enquiry
TI-Z1TC-05	Hose sleeve 1SC 5/16"	8	-	In stock	Enquiry
TI-Z1TC-06	Hose sleeve 1SC 3/8"	10	-	In stock	Enquiry
TI-Z1TC-08	Hose sleeve 1SC 1/2"	12	-	In stock	Enquiry
TI-Z1TC-10	Hose sleeve 1SC 5/8"	16	-	In stock	Enquiry
TI-Z1TC-12	Sleeve for hose 1SC 3/4"	20	-	In stock	Enquiry
TI-Z1TC-16	Hose sleeve 1SC 1	25	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The Z1TC clamping sleeve is a reliable solution designed for secure and durable connections with rubber hydraulic hoses of type 1SC. Engineered for quick and efficient assembly, it requires no additional machining, which significantly reduces installation time and simplifies the entire process. The sleeve is precisely manufactured with three key dimensions: the outer diameter (D1), the inner diameter (D2), and the lock diameter (D3), ensuring a perfect fit and optimal performance in demanding hydraulic systems. Made of high-quality carbon steel and finished with a protective galvanized coating, it offers excellent resistance to wear, corrosion, and mechanical stress, guaranteeing long-lasting durability even under intensive operating conditions. This robust construction makes the Z1TC clamping sleeve an ideal choice for professionals seeking a dependable, maintenance-friendly, and cost-effective component that enhances the safety and efficiency of hydraulic applications.
