Are Collets Type LDR, LD, LR in Carbon Steel compatible with both corrugated tails (NH-xxK-xxx) and shell clamp ends (RS) on stainless steel hose fittings?

Collets Type LDR, LD, LR in Carbon Steel Format are compatible with both corrugated tails (NH-xxK-xxx) and shell clamp ends (RS) on stainless steel hose fittings. All three sleeve types are made from galvanized carbon steel and provide secure clamping for stainless steel ends prepared for corrugated tails as well as for hose ends designed for shell clamps (e.g., TW-KRS-xxx or NH-xxR-xxx). LR sleeves are dedicated to shell clamp ends, LD sleeves are intended for corrugated tails, and LDR sleeves are versatile, accommodating both connection types. Choose the correct sleeve by matching the hose internal (Dw) and external (Dz) diameters; ensure sleeve length (L) slightly exceeds the tail length (Lk) for optimal fit.

Do Collets Type LDR, LD, LR in Carbon Steel require different installation tools or procedures for rubber versus plastic hoses with textile or spiral reinforcement?

Collets Type LDR, LD, LR in Carbon Steel Format do not require different installation tools or fundamentally different procedures for rubber versus plastic hoses with textile or spiral reinforcement. These sleeves are designed to provide secure clamping for both material types when the correct sleeve size is chosen based on hose internal (Dw) and external (Dz) diameters and when sleeve length (L) slightly exceeds the tail length (Lk). Key points: - Use the same collet type (LDR, LD, LR) and standard installation tools appropriate for the sleeve and clamp system (e.g., shell clamps for LR/LDR when used with shell-prepared ends, compatible tools for corrugated-tail connections with LD/LDR). - Ensure proper matching of D1/D2/D3 dimensions to the hose and tail to achieve reliable locking and sealing. - Verify hose reinforcement (textile or spiral) is compatible with the clamp’s compression characteristics; adjust torque or clamp tightening to avoid damaging softer plastics or over-compressing textile layers. - LDR is versatile for both shell clamp and corrugated-tail connections; use LR for shell clamps and LD for corrugated tails to simplify installation choices. In summary, no special separate tools are needed by material—correct sizing, appropriate clamp selection, and careful torque control ensure proper installation for both rubber and plastic reinforced hoses.

Collets Type LDR, LD, LR in Carbon Steel

Additional information

Material	CS – steel (cast iron)

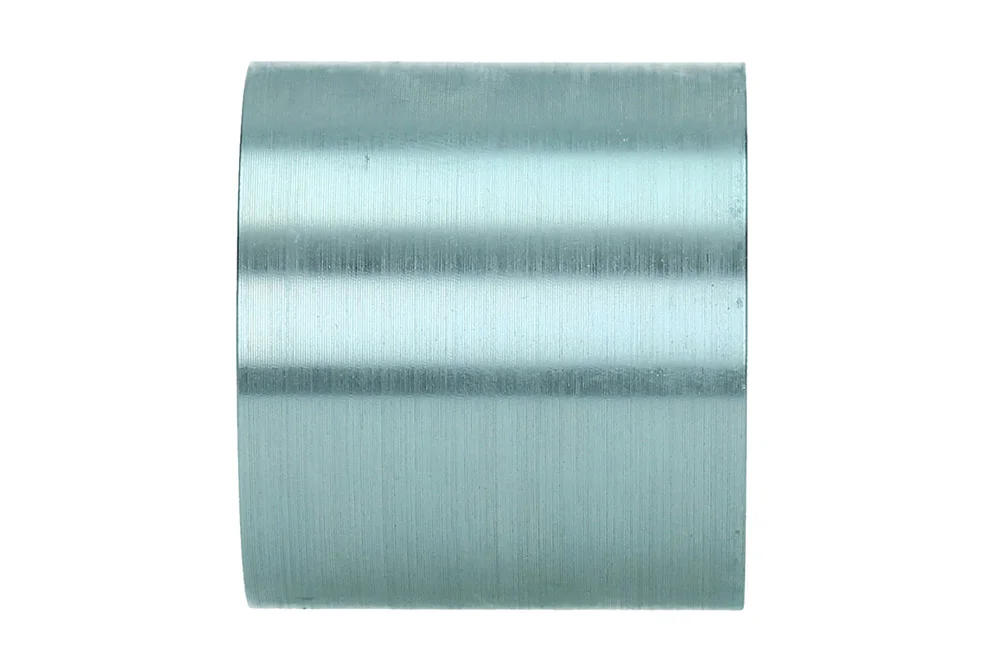

LDR, LD, and LR sleeves are precision-engineered components designed to ensure secure and hygienic connections in industrial hose systems. Manufactured from durable galvanized carbon steel, they provide reliable clamping for stainless steel ends with corrugated tails (NH-xxK-xxx) as well as hose ends prepared for shell clamps (RS), such as TW-KRS-xxx or NH-xxR-xxx. Suitable for both rubber and plastic hoses reinforced with textile layers or spirals, these sleeves guarantee stability in suction and pressure applications. Proper selection is based on the hose’s internal (Dw) and external (Dz) diameters, with sleeve length (L) slightly exceeding the tail length (Lk) for optimal fit. The product range is tailored to specific needs: LR sleeves are dedicated to shell clamp ends, LD sleeves to corrugated tails, while versatile LDR sleeves accommodate both connection types. Defined by precise dimensions—external diameter D1, internal diameter D2, and locking diameter D3—these sleeves deliver a dependable, long-lasting solution that enhances safety, performance, and efficiency in demanding industrial environments.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-LDR-045-20	LDR type sleeve 45 mm for hose 1.1/4"	32	-	In stock	Enquiry
TI-LDR-048-20	LDR type sleeve 48 mm for hose 1.1/4"	32	-	In stock	Enquiry
TI-LDR-050-24	LDR type sleeve 50 mm for hose 1.1/2"	38	-	In stock	Enquiry
TI-LDR-056-24	LDR type sleeve 56 mm for hose 1.1/2"	38	-	In stock	Enquiry
TI-LDR-064-32	LDR type sleeve 64 mm for hose 2"	50	-	In stock	Enquiry
TI-LDR-068-32	LDR type sleeve 68 mm for hose 2"	50	-	In stock	Enquiry
TI-LDR-071-32	LDR type sleeve 71 mm for hose 2"	50	-	In stock	Enquiry
TI-LDR-073-32	LDR type sleeve 73 mm for hose 2"	50	-	In stock	Enquiry
TI-LDR-078-40	LDR type sleeve 78 mm for hose 2.1/2"	65	-	In stock	Enquiry
TI-LDR-082-40	LDR type sleeve 82 mm for hose 2.1/2"	65	-	In stock	Enquiry
TI-LDR-085-40	LDR type sleeve 85 mm for hose 2.1/2"	65	-	In stock	Enquiry
TI-LDR-090-48	LDR type sleeve 90 mm for hose 3"	80	-	In stock	Enquiry
TI-LDR-092-40	LDR type sleeve 92 mm for hose 2.1/2"	65	-	In stock	Enquiry
TI-LDR-092-48	LDR type sleeve 92 mm for hose 3"	80	-	In stock	Enquiry
TI-LDR-095-48	LDR type sleeve 95 mm for hose 3"	80	-	In stock	Enquiry
TI-LDR-098-48	LDR type sleeve 98 mm for hose 3"	80	-	In stock	Enquiry
TI-LDR-114-48	LDR type sleeve 114 mm for hose 3"	80	-	In stock	Enquiry
TI-LR-115-64	LR type sleeve 115 mm for hose 4"	100	-	In stock	Enquiry
TI-LR-120-64	LR type sleeve 120 mm for hose 4"	100	-	In stock	Enquiry
TI-LR-123-64	LR type sleeve 123 mm for hose 4"	100	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

LDR, LD, and LR sleeves are precision-engineered components designed to ensure secure and hygienic connections in industrial hose systems. Manufactured from durable galvanized carbon steel, they provide reliable clamping for stainless steel ends with corrugated tails (NH-xxK-xxx) as well as hose ends prepared for shell clamps (RS), such as TW-KRS-xxx or NH-xxR-xxx. Suitable for both rubber and plastic hoses reinforced with textile layers or spirals, these sleeves guarantee stability in suction and pressure applications. Proper selection is based on the hose’s internal (Dw) and external (Dz) diameters, with sleeve length (L) slightly exceeding the tail length (Lk) for optimal fit. The product range is tailored to specific needs: LR sleeves are dedicated to shell clamp ends, LD sleeves to corrugated tails, while versatile LDR sleeves accommodate both connection types. Defined by precise dimensions—external diameter D1, internal diameter D2, and locking diameter D3—these sleeves deliver a dependable, long-lasting solution that enhances safety, performance, and efficiency in demanding industrial environments.
