How do I install and secure the Aluminum GUILLEMIN Connector Cap with Chain to ensure a tight seal and prevent loss during operation?

To install and secure the Aluminum GUILLEMIN Connector Cap with Chain for a tight seal and to prevent loss, follow these steps: 1. Inspect cap, gasket and coupling: ensure the white NBR rubber gasket is clean, free of cuts or debris and properly seated in the cap groove. Check the coupling faces for dirt or damage. 2. Align and fit: place the Aluminum GUILLEMIN Connector Cap with Chain squarely onto the symmetrical coupling. Ensure the cap engages evenly over the coupling lips. 3. Seat and tighten: press the cap fully onto the coupling until the gasket compresses and a firm tactile stop is felt. For symmetrical Guillemin systems, hand-tighten the cap by applying even pressure around its circumference—no tools are normally required. Confirm an even compression of the NBR gasket to achieve the rated seal up to 16 bar. 4. Verify seal: after installation, perform a pressure or leak check at low pressure, then ramp to operating pressure within the -10°C to +80°C range. Inspect for leaks and re-seat if necessary. 5. Secure chain to prevent loss: attach the chain to the fixed part of the installation or the coupling body using the provided link or a suitable, corrosion-resistant anchor point. Ensure the chain length allows the cap to sit flush when closed and prevents the cap from dangling into hazardous areas when removed. 6. Maintenance and safety checks: routinely inspect the gasket for wear, clean mating surfaces, and replace the cap or gasket if damaged. Follow EN 14420-8/NF-E-29572 guidelines and never exceed the 16 bar working pressure or specified temperature limits. This procedure ensures a reliable, tight seal and keeps the Aluminum GUILLEMIN Connector Cap with Chain available and secure during operation.

Can the Aluminum GUILLEMIN Connector Cap with Chain withstand exposure to aggressive chemicals and what maintenance is required to preserve the NBR gasket?

The Aluminum GUILLEMIN Connector Cap with Chain offers good general resistance but is not guaranteed for exposure to highly aggressive chemicals. The cap body is high-quality aluminum (good for many industrial environments) and the white NBR (nitrile) gasket provides reliable sealing for oils, fuels and many common chemicals within its stated temperature range (-10°C to +80°C) and up to 16 bar. However, NBR has limited resistance to strong acids, strong alkalis, ketones, esters and some chlorinated hydrocarbons—prolonged contact with such aggressive media can cause swelling, hardening or loss of sealing properties. Maintenance to preserve the NBR gasket: - Rinse gasket with clean water (or a compatible neutral solvent) after contact with chemicals to remove residues. - Inspect regularly for cuts, hardening, swelling, flattening or cracking and replace if any deterioration is found. - Lubricate lightly with a compatible silicone or approved silicone-free lubricant to maintain flexibility (avoid petroleum-based lubricants if incompatible with the fluid). - Store cap out of direct sunlight and extreme heat to prevent premature aging. - Keep operating conditions within the specified temperature range and avoid prolonged exposure to aggressive chemicals; if such exposure is expected, consider alternative gasket materials. For critical chemical applications, verify media compatibility with NBR or consult the manufacturer for recommended gasket materials.

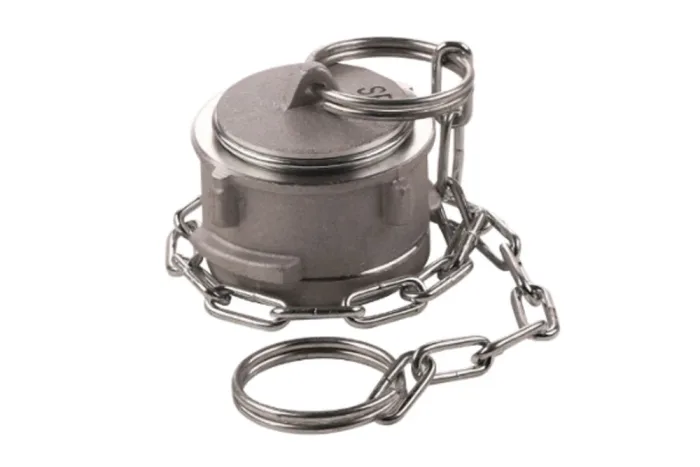

Aluminum GUILLEMIN Connector Cap with Chain

All products, Symmetrical claw couplings/

Additional information

Material	AL – aluminum

The GUILLEMIN connector cap with chain is a reliable and durable solution designed for secure closure of symmetrical couplings, ensuring safe and efficient operation in demanding environments. Manufactured from high-quality aluminum and compliant with EN 14420-8/NF-E-29572 standards, it guarantees precision, strength, and long-lasting performance. With a working pressure of up to 16 bar, this cap provides dependable sealing supported by a robust white NBR rubber gasket, offering excellent resistance and tightness. Its operating temperature range from -10°C to +80°C makes it suitable for a wide variety of industrial applications, from fluid transfer to chemical handling. The practical chain prevents misplacement, ensuring the cap is always within reach and ready for use. Engineered for efficiency and safety, this connector cap is the perfect choice for professionals seeking a high-performance, easy-to-use, and durable solution for their coupling systems.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
GU-DP-075-A	GUILLEMIN DN 20 connector blind plug, aluminum	-	-	In stock	Enquiry
GU-DP-100-A	GUILLEMIN DN 25 connector blind plug, aluminum	-	-	In stock	Enquiry
GU-DP-125-A	GUILLEMIN DN 32 connector plug, aluminum	-	-	In stock	Enquiry
GU-DP-150-A	GUILLEMIN DN 40 connector blind plug, aluminum	-	-	In stock	Enquiry
GU-DP-200-A	GUILLEMIN DN 50 connector plug, aluminum	-	-	In stock	Enquiry
GU-DP-250-A	GUILLEMIN DN 65 connector blind plug, aluminum	-	-	In stock	Enquiry
GU-DP-300-A	GUILLEMIN DN 80 connector blind plug, aluminum	-	-	In stock	Enquiry
GU-DP-400-A	GUILLEMIN DN 100 connector blind plug, aluminum	-	-	In stock	Enquiry
GU-DP-600-A	GUILLEMIN DN 150 connector blind plug, aluminum	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The GUILLEMIN connector cap with chain is a reliable and durable solution designed for secure closure of symmetrical couplings, ensuring safe and efficient operation in demanding environments. Manufactured from high-quality aluminum and compliant with EN 14420-8/NF-E-29572 standards, it guarantees precision, strength, and long-lasting performance. With a working pressure of up to 16 bar, this cap provides dependable sealing supported by a robust white NBR rubber gasket, offering excellent resistance and tightness. Its operating temperature range from -10°C to +80°C makes it suitable for a wide variety of industrial applications, from fluid transfer to chemical handling. The practical chain prevents misplacement, ensuring the cap is always within reach and ready for use. Engineered for efficiency and safety, this connector cap is the perfect choice for professionals seeking a high-performance, easy-to-use, and durable solution for their coupling systems.
