Is the Connector for LAUX Lever Socket 42, Socket-to-Socket, Carbon Steel KK2M suitable for use with abrasive materials like cement and grains under continuous operation?

Yes. The Connector for LAUX Lever Socket 42, Socket-to-Socket, Carbon Steel KK2M is suitable for continuous use with abrasive materials like cement and grains. Its galvanized carbon steel construction provides strong wear resistance and durability for intensive operation. The connector is explicitly described as suitable for transport and unloading of bulk abrasive materials (grains, flours, feeds, granulates, cement, minerals) and for use in mining and construction site systems. The standard EPDM gasket offers reliable sealing and can be swapped for a different gasket material if the specific media require enhanced abrasion or chemical resistance. Operating limits (max. working pressure 12.5 bar liquid / 8 bar air, full vacuum tightness, temperature range –50°C to +120°C) support continuous heavy-duty applications. For extreme abrasion or highly aggressive media, consider specifying a more abrasion-resistant gasket or additional protective measures, but for typical cement and grain handling the KK2M is appropriate.

Can the Connector for LAUX Lever Socket 42, Socket-to-Socket, Carbon Steel KK2M maintain sealing and performance when exposed to chemical additives or oils mixed with bulk materials?

The Connector for LAUX Lever Socket 42, Socket-to-Socket, Carbon Steel KK2M can maintain sealing and performance when exposed to chemical additives or oils only if the gasket material is chosen to be compatible with those specific substances. Standard configuration uses an EPDM gasket, which offers excellent sealing for water and many common fluids but has limited resistance to oils, hydrocarbons, and certain aggressive chemicals. The product description explicitly states that for media other than water, the gasket material can be selected to match requirements — selecting a chemically resistant elastomer (e.g., NBR, FKM/Viton, or other specified compounds) will ensure continued tightness and performance within the connector’s stated limits (max working pressure: 12.5 bar liquid / 8 bar air, vacuum tightness, and temperature range -50°C to +120°C, subject to the chosen gasket’s own temperature/chemical limits). Recommendation: provide the exact chemical additives or oil types and concentrations so the correct gasket material can be specified to guarantee compatibility and retain the connector’s sealing and pressure performance.

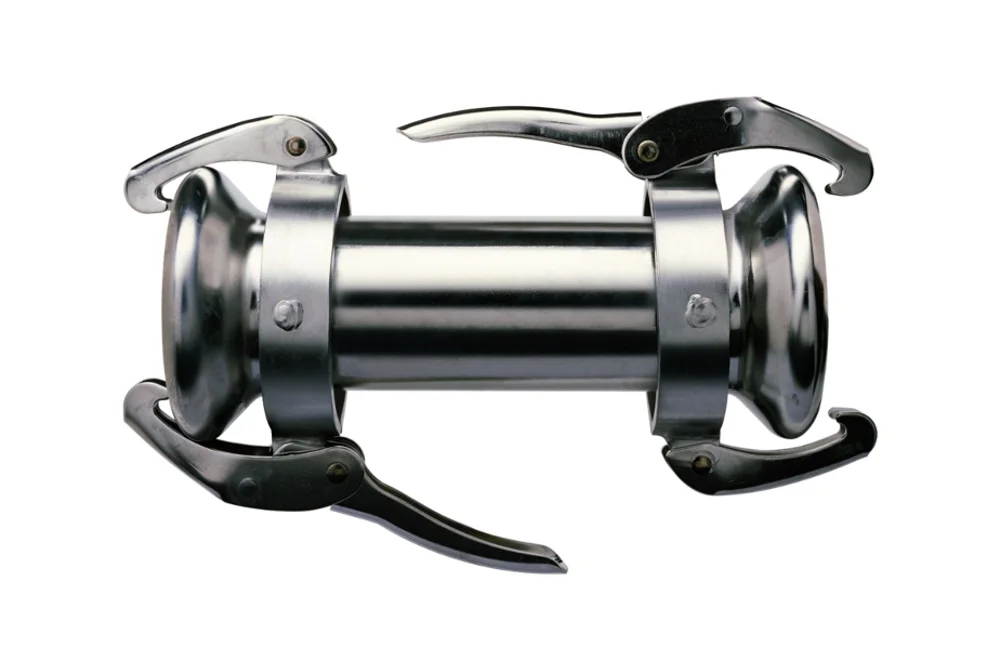

Connector for LAUX Lever Socket 42, Socket-to-Socket, Carbon Steel KK2M

All products, Lever couplings/

Additional information

Material	CS – steel (cast iron)

The LAUX lever coupling connector 42 socket-socket is a highly versatile solution designed for demanding industrial and agricultural applications. Manufactured from durable galvanized carbon steel, it ensures long-lasting resistance to wear and external factors, while its robust construction guarantees reliability even under intensive use. With a maximum working pressure of 12.5 bar for liquids and 8 bar for air, as well as full tightness under vacuum, this connector is perfectly suited for the safe transport and unloading of bulk materials such as grains, flours, feeds, granulates, cement, and minerals. It also performs exceptionally well in systems with pressure and vacuum pumps, as well as in temporary water and air installations on construction sites, in mining operations, and in agricultural irrigation systems. The standard EPDM gasket provides excellent sealing, while for media other than water, the gasket material can be selected to match specific requirements, ensuring optimal performance and safety. With an impressive operating temperature range from -50°C to +120°C, this connector delivers reliability in both extreme cold and high-heat conditions, making it an indispensable component for professionals seeking efficiency, durability, and universal application.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TF-KK2M-048	KK2M connector socket-socket 48 mm, galvanized steel.	-	12.5	In stock	Enquiry
TF-KK2M-076	KK2M connector socket-socket 76 mm, galvanized steel.	-	12.5	In stock	Enquiry
TF-KK2M-102	KK2M connector socket-socket 102 mm, galvanized steel.	-	12.5	In stock	Enquiry
TF-KK2M-133	KK2M connector socket-socket 133 mm, galvanized steel.	-	12.5	In stock	Enquiry
TF-KK2M-152	KK2M connector socket-socket 152 mm, galvanized steel.	-	12.5	In stock	Enquiry
