Is DKL Hydraulic End ZMW111, Light Series, Carbon Steel compatible with standard crimp sleeves for common hydraulic hoses?

DKL Hydraulic End ZMW111, Light Series, Carbon Steel Format: Yes — this fitting is designed to be crimped with the appropriate sleeve for the selected hose type. Its construction features a classic hydraulic tail and is optimized for crimping, providing a tight, leak‑free metal‑to‑metal seal when used with a compatible crimp sleeve sized to the hose. The universal 24°/60° cone (DKL) and internal metric thread with nut ensure secure assembly, but compatibility depends on matching the sleeve profile and dimensions to both the hose and this fitting’s tail. Always verify sleeve size and specification for your specific hose type and follow recommended crimping procedures and tooling to ensure a proper, reliable crimp.

Can DKL Hydraulic End ZMW111, Light Series, Carbon Steel be used with stainless steel braided hoses and their specific crimp sleeves?

Yes — DKL Hydraulic End ZMW111, Light Series, Carbon Steel can be used with stainless steel braided hoses provided you use the correct crimp sleeve matched to that hose construction. The product description states the fitting is optimized for crimping with the appropriate sleeve for the selected hose type, and its universal 24°/60° cone (DKL) with internal metric thread and metal-to-metal seal supports secure, leak-free assemblies. Ensure you select a crimp sleeve specifically specified for stainless braided hoses and follow the hose and fitting manufacturers’ crimp dimensions, tool specifications, and crimping procedure to achieve the required crimp diameter, ferrule deformation, and assembly integrity. Also verify material compatibility (carbon steel fitting finish vs. stainless braid) for your fluid, pressure, and environmental conditions to avoid galvanic corrosion; consider additional surface treatments or isolation measures if necessary.

DKL Hydraulic End ZMW111, Light Series, Carbon Steel

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

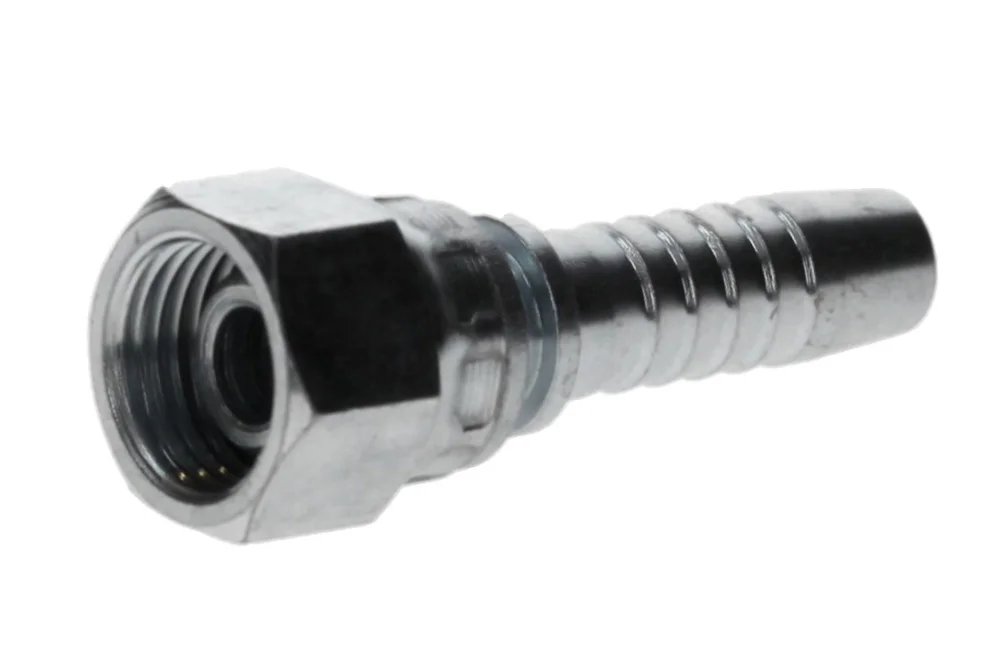

This standard hydraulic end fitting, type Z with a classic hydraulic tail for hose connection, is engineered for reliable performance in demanding hydraulic and industrial applications. Featuring an internal metric thread with nut and a precise metal-to-metal seal, it incorporates a universal 24°/60° cone (DKL) in a lightweight series design, ensuring compatibility and secure assembly. Manufactured from high-quality carbon steel with a durable galvanized finish, it offers excellent resistance to wear and corrosion, extending service life even under intensive use. Optimized for crimping with the appropriate sleeve for the selected hose type, this fitting guarantees a tight, leak-free connection and efficient fluid transfer. Its robust construction, combined with ease of installation, makes it a versatile solution for a wide range of hydraulic systems, providing both reliability and cost-effectiveness in professional applications.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZMW111-12-04	End. GW M12x1.5, hose 1/4", 24/60°, light	6	-	In stock	Enquiry
TI-ZMW111-12-05	End. GW M12x1.5, hose 5/16", 24/60°, light	8	-	In stock	Enquiry
TI-ZMW111-14-04	End. GW M14x1.5, hose 1/4", 24/60°, light	6	-	In stock	Enquiry
TI-ZMW111-16-04	End. GW M16x1.5, hose 1/4", 24/60°, light	6	-	In stock	Enquiry
TI-ZMW111-16-05	End. GW M16x1.5, hose 5/16", 24/60°, light	8	-	In stock	Enquiry
TI-ZMW111-16-06	End. GW M16x1.5, hose 3/8", 24/60°, light	10	-	In stock	Enquiry
TI-ZMW111-16-08	End. GW M16x1.5, hose 1/2", 24/60°, light	12	-	In stock	Enquiry
TI-ZMW111-18-05	End. GW M18x1.5, hose 5/16", 24/60°, light	8	-	In stock	Enquiry
TI-ZMW111-18-06	End. GW M18x1.5, hose 3/8", 24/60°, light	10	-	In stock	Enquiry
TI-ZMW111-18-08	End. GW M18x1.5, hose 1/2", 24/60°, light	12	-	In stock	Enquiry
TI-ZMW111-22-06	End. GW M22x1.5, hose 3/8", 24/60°, light	10	-	In stock	Enquiry
TI-ZMW111-22-08	End. GW M22x1.5, hose 1/2", 24/60°, light	12	-	In stock	Enquiry
TI-ZMW111-22X16L-08	End. GW M22x1.5, 16L, hose 1/2", 24/60, light	12	-	In stock	Enquiry
TI-ZMW111-26-10	End. GW M26x1.5, hose 5/8", 24/60°, light	16	-	In stock	Enquiry
TI-ZMW111-27-10	End. GW M27x2, hose 5/8", 24/60°, lightweight	16	-	In stock	Enquiry
TI-ZMW111-27X1,5-10	End. GW M27x1.5, hose 5/8", 24/60°, light	16	-	In stock	Enquiry
TI-ZMW111-30-12	End. GW M30x2, hose 3/4", 24/60°, light	20	-	In stock	Enquiry
TI-ZMW111-30X1,75-12	End. GW M30x1.75, hose 3/4", 24/60°, light	20	-	In stock	Enquiry
TI-ZMW111-33-12	End. GW M33x2, hose 3/4", 24/60°, light	20	-	In stock	Enquiry
TI-ZMW111-33X1,5-12	End. GW M33x1.5, hose 3/4", 24/60°, light	20	-	In stock	Enquiry
TI-ZMW111-36-16	End. GW M36x2, hose 1", 24/60°, light	25	-	In stock	Enquiry
TI-ZMW111-45-16	End. GW M45x2, hose 1", 24/60°, light	25	-	In stock	Enquiry
TI-ZMW111-45-20	End. GW M45x2, hose 1.1/4", 24/60°, light	32	-	In stock	Enquiry
TI-ZMW111-52-24	End. GW M52x2, hose 1.1/2", 24/60°, light	38	-	In stock	Enquiry
