Is DKOL Hydraulic End ZMW121, Light Series, AISI 316 Stainless Steel (PH) compatible with saltwater applications and marine hydraulic systems?

Yes. The DKOL Hydraulic End ZMW121, Light Series, AISI 316 Stainless Steel (PH) is compatible with saltwater applications and marine hydraulic systems. Its AISI 316 stainless steel construction provides excellent corrosion resistance against seawater and harsh marine environments. The DKOL 24° cone sealing system with O‑ring and the PH-design crimping sleeves ensure secure, leak‑free connections suitable for hydraulic hoses used in marine service. Use proper crimping procedures and confirm compatibility with specific hydraulic fluids and system pressures for optimal long‑term performance.

Can DKOL Hydraulic End ZMW121, Light Series, AISI 316 Stainless Steel (PH) be used with aggressive chemicals and seawater-based hydraulic fluids?

Yes. The DKOL Hydraulic End ZMW121, Light Series, AISI 316 Stainless Steel (PH) is suitable for use with aggressive chemicals and seawater-based hydraulic fluids. Constructed from premium AISI 316 stainless steel and featuring DKOL 24° cone sealing with an O‑ring, it provides high corrosion resistance and reliable sealing in harsh environments (marine, chemical, high humidity). It is designed for crimping with PH‑marked sleeves to ensure leak‑free connections. Note: compatibility with specific aggressive chemicals and specialized seawater hydraulic fluids depends on the exact fluid composition and operating conditions (temperature, pressure, additives). For critical or prolonged exposures, verify chemical compatibility of AISI 316 and the O‑ring material with the fluid, and consult manufacturer specifications or test under expected service conditions.

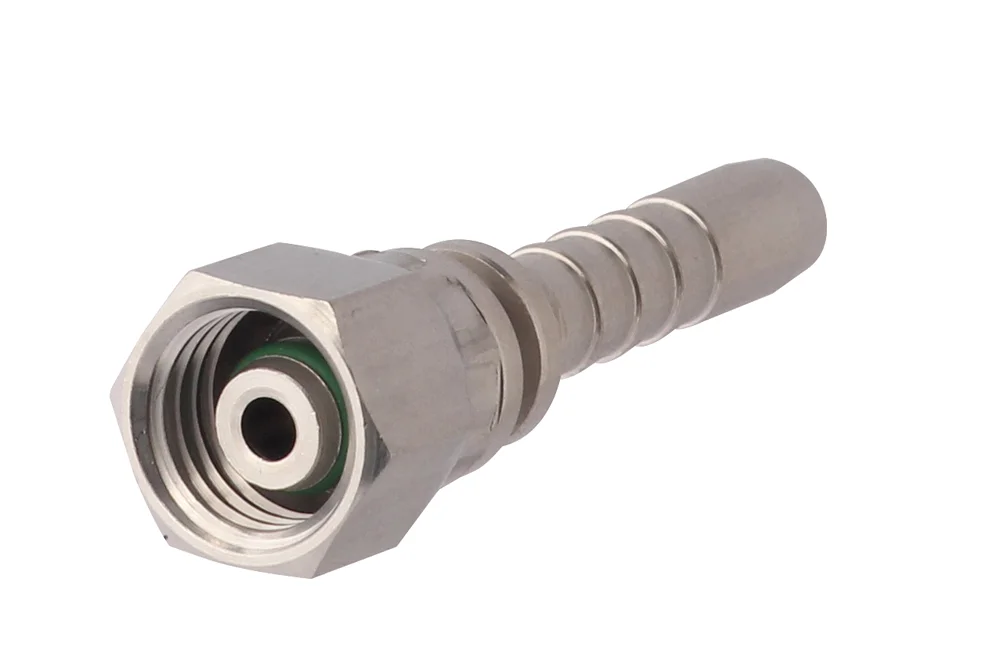

DKOL Hydraulic End ZMW121, Light Series, AISI 316 Stainless Steel (PH)

All products, Fittings for high-pressure hoses/

Additional information

Material	SS – stainless steel

This standard hydraulic end fitting, type Z with a classic hydraulic tail for hose connection, is engineered for secure and reliable performance in demanding hydraulic and industrial applications. Featuring an internal metric thread with nut and a 24° cone sealing system supported by an O-ring (DKOL), it ensures optimal tightness and long-lasting durability. Designed in a lightweight series, it is perfectly suited for crimping with hydraulic and industrial hoses using dedicated crimping sleeves marked with the suffix “-PH,” guaranteeing precise compatibility and leak-free operation. Manufactured from premium AISI 316 stainless steel, the fitting offers outstanding resistance to corrosion, making it ideal for use in harsh environments, including marine, chemical, and high-humidity conditions. Its robust construction, combined with ease of installation, provides a reliable solution that enhances system efficiency, reduces downtime, and extends the service life of hydraulic assemblies.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZMW121-12-03-SS-PH	End. GW M12x1.5, hose 3/16", 24°, o-ring, light, AISI 316	5	-	In stock	Enquiry
TI-ZMW121-12-04-SS-PH	End. GW M12x1.5, hose 1/4", 24°, o-ring, lightweight, AISI 316	6	-	In stock	Enquiry
TI-ZMW121-14-03-SS-PH	End. GW M14x1.5, hose 3/16", 24°, o-ring, lightweight, AISI 316	5	-	In stock	Enquiry
TI-ZMW121-14-04-SS-PH	End. GW M14x1.5, hose 1/4", 24°, o-ring, lightweight, AISI 316	6	-	In stock	Enquiry
TI-ZMW121-14-05-SS-PH	End. GW M14x1.5, hose 5/16", 24°, o-ring, lightweight, AISI 316	8	-	In stock	Enquiry
TI-ZMW121-14-06-SS-PH	End. GW M14x1.5, hose 3/8", 24°, o-ring, lightweight, AISI 316	10	-	In stock	Enquiry
TI-ZMW121-16-04-SS-PH	End. GW M16x1.5, hose 1/4", 24°, o-ring, lightweight, AISI 316	6	-	In stock	Enquiry
TI-ZMW121-16-05-SS-PH	End. GW M16x1.5, hose 5/16", 24°, o-ring, lightweight, AISI 316	8	-	In stock	Enquiry
TI-ZMW121-16-06-SS-PH	End. GW M16x1.5, hose 3/8", 24°, o-ring, lightweight, AISI 316	10	-	In stock	Enquiry
TI-ZMW121-18-04-SS-PH	End. GW M18x1.5, hose 1/4", 24°, o-ring, light, AISI 316	6	-	In stock	Enquiry
TI-ZMW121-18-05-SS-PH	End. GW M18x1.5, hose 5/16", 24°, o-ring, light, AISI 316	8	-	In stock	Enquiry
TI-ZMW121-18-06-SS-PH	End. GW M18x1.5, hose 3/8", 24°, o-ring, light, AISI 316	10	-	In stock	Enquiry
TI-ZMW121-18-08-SS-PH	End. GW M18x1.5, hose 1/2", 24°, o-ring, lightweight, AISI 316	12	-	In stock	Enquiry
TI-ZMW121-22-04-SS-PH	End. GW M22x1.5, hose 1/4", 24°, o-ring, lightweight, AISI 316	6	-	In stock	Enquiry
TI-ZMW121-22-05-SS-PH	End. GW M22x1.5, hose 5/16", 24°, o-ring, lightweight, AISI 316	8	-	In stock	Enquiry
TI-ZMW121-22-06-SS-PH	End. GW M22x1.5, hose 3/8", 24°, o-ring, lightweight, AISI 316	10	-	In stock	Enquiry
TI-ZMW121-22-08-SS-PH	End. GW M22x1.5, hose 1/2", 24°, o-ring, lightweight, AISI 316	12	-	In stock	Enquiry
TI-ZMW121-22-10-SS-PH	End. GW M22x1.5, hose 5/8", 24°, o-ring, lightweight, AISI 316	16	-	In stock	Enquiry
TI-ZMW121-26-06-SS-PH	End. GW M26x1.5, hose 3/8", 24°, o-ring, lightweight, AISI 316	10	-	In stock	Enquiry
TI-ZMW121-26-08-SS-PH	End. GW M26x1.5, hose 1/2", 24°, o-ring, lightweight, AISI 316	12	-	In stock	Enquiry
TI-ZMW121-26-10-SS-PH	End. GW M26x1.5, hose 5/8", 24°, o-ring, lightweight, AISI 316	16	-	In stock	Enquiry
TI-ZMW121-26-12-SS-PH	End. GW M26x1.5, hose 3/4", 24°, o-ring, lightweight, AISI 316	20	-	In stock	Enquiry
TI-ZMW121-30-08-SS-PH	End. GW M30x2, hose 1/2", 24°, o-ring, lightweight, AISI 316	12	-	In stock	Enquiry
TI-ZMW121-30-10-SS-PH	End. GW M30x2, hose 5/8", 24°, o-ring, lightweight, AISI 316	16	-	In stock	Enquiry
TI-ZMW121-30-12-SS-PH	End. GW M30x2, hose 3/4", 24°, o-ring, lightweight, AISI 316	20	-	In stock	Enquiry
TI-ZMW121-30-16-SS-PH	End. GW M30x2, hose 1", 24°, o-ring, lightweight, AISI 316	25	-	In stock	Enquiry
TI-ZMW121-36-10-SS-PH	End. GW M36x2, hose 5/8", 24°, o-ring, lightweight, AISI 316	16	-	In stock	Enquiry
TI-ZMW121-36-12-SS-PH	End. GW M36x2, hose 3/4", 24°, o-ring, lightweight, AISI 316	20	-	In stock	Enquiry
TI-ZMW121-36-16-SS-PH	End. GW M36x2, hose 1", 24°, o-ring, lightweight, AISI 316	25	-	In stock	Enquiry
TI-ZMW121-45-16-SS-PH	End. GW M45x2, hose 1", 24°, o-ring, lightweight, AISI 316	25	-	In stock	Enquiry
TI-ZMW121-45-20-SS-PH	End. GW M45x2, hose 1.1/4", 24°, o-ring, lightweight, AISI 316	32	-	In stock	Enquiry
TI-ZMW121-52-20-SS-PH	End. GW M52x2, hose 1.1/4", 24°, o-ring, lightweight, AISI 316	32	-	In stock	Enquiry
TI-ZMW121-52-24-SS-PH	End. GW M52x2, hose 1.1/2", 24°, o-ring, lightweight, AISI 316	38	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

This standard hydraulic end fitting, type Z with a classic hydraulic tail for hose connection, is engineered for secure and reliable performance in demanding hydraulic and industrial applications. Featuring an internal metric thread with nut and a 24° cone sealing system supported by an O-ring (DKOL), it ensures optimal tightness and long-lasting durability. Designed in a lightweight series, it is perfectly suited for crimping with hydraulic and industrial hoses using dedicated crimping sleeves marked with the suffix “-PH,” guaranteeing precise compatibility and leak-free operation. Manufactured from premium AISI 316 stainless steel, the fitting offers outstanding resistance to corrosion, making it ideal for use in harsh environments, including marine, chemical, and high-humidity conditions. Its robust construction, combined with ease of installation, provides a reliable solution that enhances system efficiency, reduces downtime, and extends the service life of hydraulic assemblies.
