Is DKOL Hydraulic End ZMW121, Light Series, AISI 316L Stainless Steel compatible with standard crimping sleeves for metric hose assemblies?

DKOL Hydraulic End ZMW121, Light Series, AISI 316L Stainless Steel Format is designed to be used with crimping sleeves that are matched to the specific hose type. It features a classic hydraulic tail, an internal metric thread with nut, and an O‑ring on a 24° cone (DKOL) for sealing. Therefore it is compatible with standard crimping sleeves only when those sleeves are the correct size and profile for the hose being used and intended for DKOL/24° cone fittings. Using incorrect or generic sleeves not specified for the hose and fitting combination can compromise crimp integrity and sealing. For safe, reliable assemblies, select crimping sleeves recommended by the hose manufacturer for the hose part number and this style of fitting, and follow the manufacturer’s crimping specifications.

Can DKOL Hydraulic End ZMW121, Light Series, AISI 316L Stainless Steel be used with hoses operating at elevated temperatures or with aggressive fluids?

DKOL Hydraulic End ZMW121, Light Series, AISI 316L Stainless Steel Format can be used with hoses operating at moderately elevated temperatures and with many aggressive fluids, thanks to its AISI 316L construction which offers excellent corrosion resistance and durability in demanding environments. However, suitability depends on the specific temperature range and chemical compatibility of the fluid: - Temperature: AISI 316L retains mechanical and corrosion-resistant properties at typical hydraulic operating temperatures; for very high temperatures, verify O‑ring material limits (O‑rings on the 24° cone) and crimp sleeve/hose ratings, as elastomers and hoses often define maximum temperature rather than the metal fitting itself. - Aggressive fluids: The stainless steel body resists many corrosive media, but compatibility of the fluid with the O‑ring and the hose assembly must be confirmed. Some aggressive chemicals can degrade common elastomers or attack certain hose materials even if the fitting metal remains unaffected. - Assembly and service life: Use correct crimping sleeves matched to the hose type and follow manufacturer recommendations to ensure sealing integrity and longevity under elevated temperature or chemically aggressive conditions. Recommendation: Check the specific hose, sleeve, and O‑ring material specifications against the operating temperature and fluid chemistry. If needed, specify high‑temperature elastomers or alternative sealing materials compatible with the fluid.

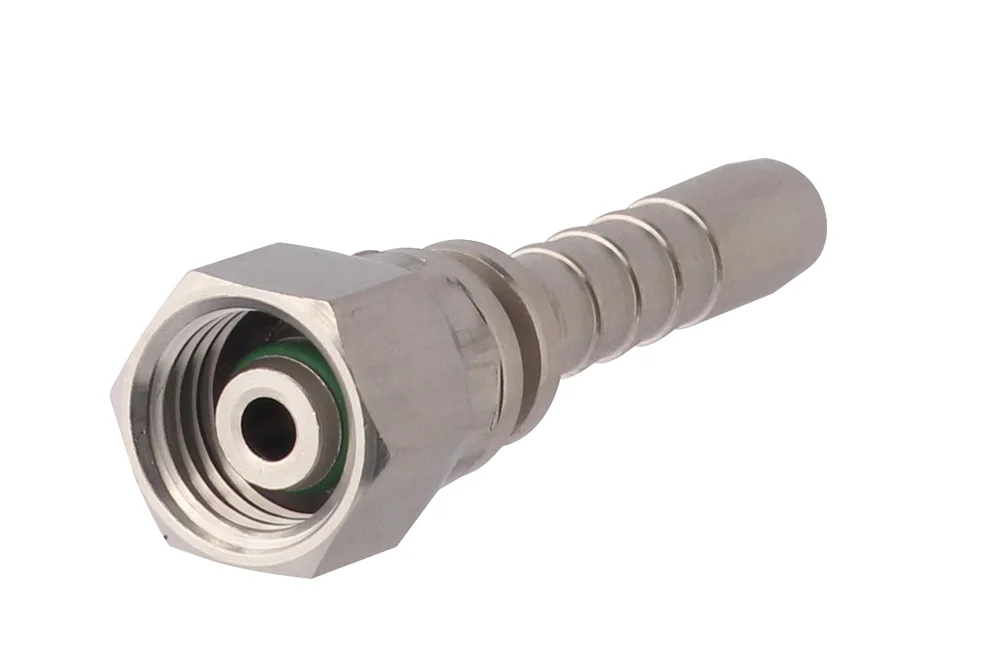

A fitting hydraulic DKOL, type ZMW121, series light, steel AISI 316L

All products, Fittings for high-pressure hoses/

Additional information

Material	SS – stainless steel
Standard length [m]	10

A fitting hydraulic standard (type Z – of standard “tail” hydraulic for hose), with a female metric thread with a nut, O-ring sealing on a 24° cone (DKOL), series light. Intended for crimping in hoses hydraulic and industrial using ferrule crimping, appropriate for type hose. Material: steel AISI 316L.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZMW121-12-03-SS	Fitting M12x1.5 female, hose 3/16", 24°, O-ring, light, AISI 316L	5	-	In stock	Enquiry
TI-ZMW121-12-04-SS	Fitting M12x1.5 female, hose 1/4", 24°, O-ring, light, AISI 316L	6	-	In stock	Enquiry
TI-ZMW121-14-04-SS	Fitting M14x1.5 female, hose 1/4", 24°, O-ring, light, AISI 316L	6	-	In stock	Enquiry
TI-ZMW121-16-04-SS	Fitting M16x1.5 female, hose 1/4", 24°, O-ring, light, AISI 316L	6	-	In stock	Enquiry
TI-ZMW121-16-05-SS	Fitting M16x1.5 female, hose 5/16", 24°, O-ring, light, AISI 316L	8	-	In stock	Enquiry
TI-ZMW121-16-06-SS	Fitting M16x1.5 female, hose 3/8", 24°, O-ring, light, AISI 316L	10	-	In stock	Enquiry
TI-ZMW121-18-04-SS	Fitting M18x1.5 female, hose 1/4", 24°, O-ring, light, AISI 316L	6	-	In stock	Enquiry
TI-ZMW121-18-05-SS	Fitting M18x1.5 female, hose 5/16", 24°, O-ring, light, AISI 316L	8	-	In stock	Enquiry
TI-ZMW121-18-06-SS	Fitting M18x1.5 female, hose 3/8", 24°, O-ring, light, AISI 316L	10	-	In stock	Enquiry
TI-ZMW121-22-06-SS	Fitting M22x1.5 female, hose 3/8", 24°, O-ring, light, AISI 316L	10	-	In stock	Enquiry
TI-ZMW121-22-08-SS	Fitting M22x1.5 female, hose 1/2", 24°, O-ring, light, AISI 316L	12	-	In stock	Enquiry
TI-ZMW121-26-08-SS	Fitting M26x1.5 female, hose 1/2", 24°, O-ring, light, AISI 316L	12	-	In stock	Enquiry
TI-ZMW121-26-10-SS	Fitting M26x1.5 female, hose 5/8", 24°, O-ring, light, AISI 316L	16	-	In stock	Enquiry
TI-ZMW121-30-12-SS	Fitting M30x2 female, hose 3/4", 24°, O-ring, light, AISI 316L	20	-	In stock	Enquiry
TI-ZMW121-36-16-SS	Fitting M36x2 female, hose 1", 24°, O-ring, light, AISI 316L	25	-	In stock	Enquiry
TI-ZMW121-45-20-SS	Fitting M45x2 female, hose 1.1/4", 24°, O-ring, light, AISI 316L	32	-	In stock	Enquiry
TI-ZMW121-52-24-SS	Fitting M52x2 female, hose 1.1/2", 24°, O-ring, light, AISI 316L	38	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

A fitting hydraulic standard (type Z – of standard “tail” hydraulic for hose), with a female metric thread with a nut, O-ring sealing on a 24° cone (DKOL), series light. Intended for crimping in hoses hydraulic and industrial using ferrule crimping, appropriate for type hose. Material: steel AISI 316L.
